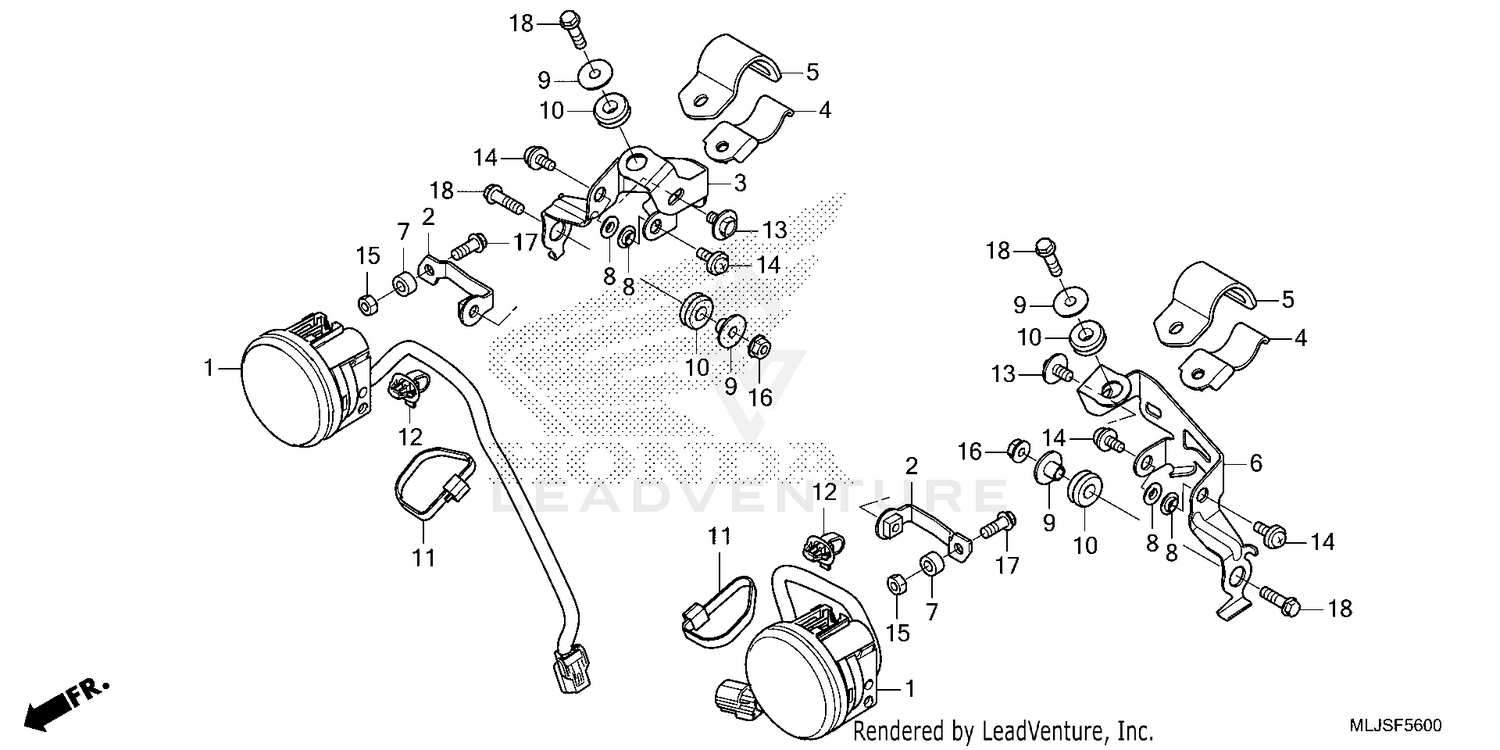

Foglight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOGLIGHT ASSY., FR.
33200-MKC-A02
Superseded by 33200-MKC-A03
|
$456.53 | ||
|
Unavailable |
|||
|
#2
ADJUST, FOG LAMP (NOT AVAILABLE)
33205-MKC-A00
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, R. FOG LAMP (NOT AVAILABLE)
33206-MKC-A00
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND A, PIPE (D25.4) (NOT AVAILABLE)
33207-MKC-A00
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND B, PIPE (D25.4) (NOT AVAILABLE)
33208-MKC-A00
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, L. FOG LAMP (NOT AVAILABLE)
33256-MKC-A00
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (6X6.5)
50631-MGS-D30
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SETTING
90413-369-690
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR A, AIR CLEANER HOUSING (NOT AVAILABLE)
90501-MC4-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET A, AIR CLEANER HOUSING
90505-MC4-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, HARNESS BAND (164.5MM) (DARK BLUE)
91542-SNA-003
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X12)
93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#13
BOLT-WASHER (6X12)
93404-06012-08
Superseded by 93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#14
SCREW-WASHER (6X12)
93891-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94001-06080-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
