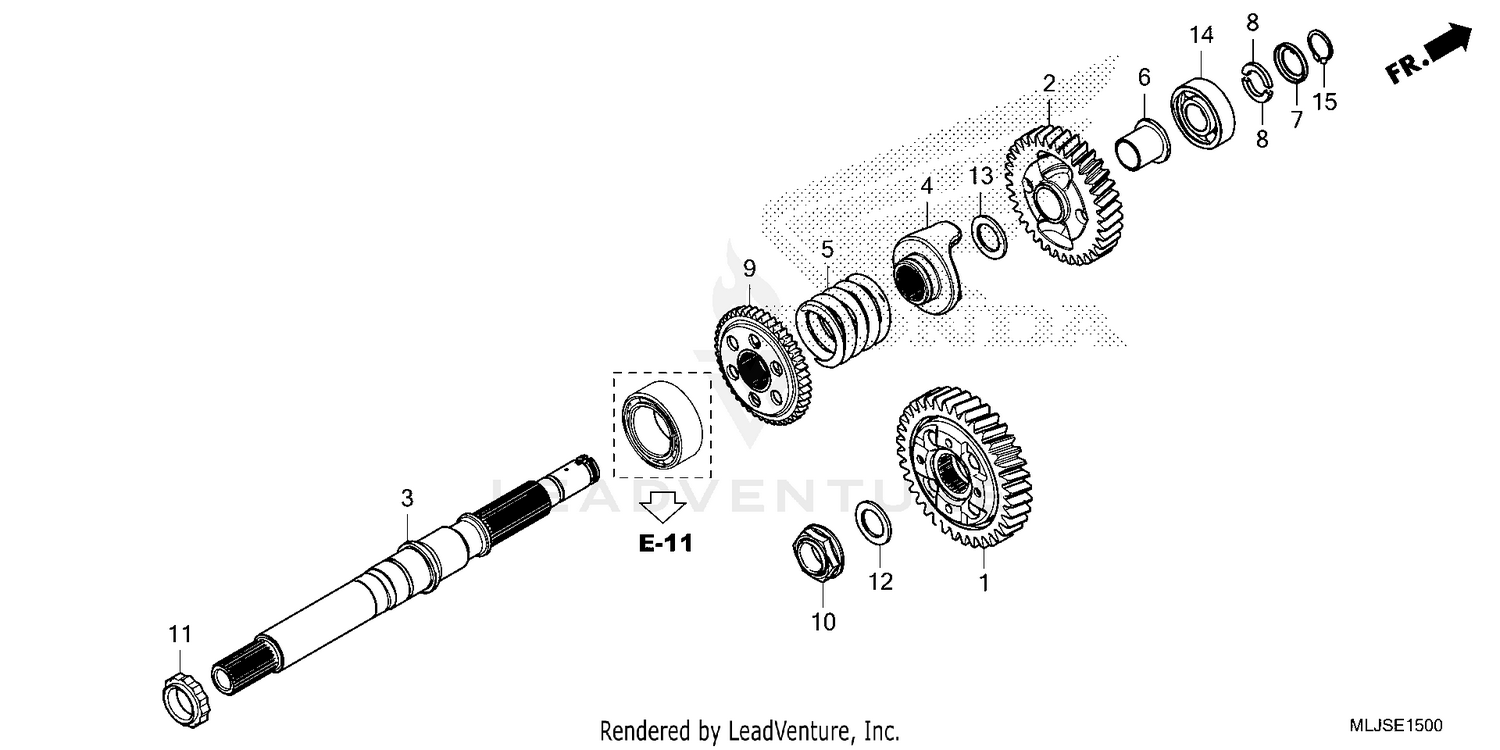

Final Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, FINAL DRIVE (36T)
23570-MKC-A00
|
$249.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, FINAL DRIVEN (35T)
23581-MKC-A00
|
$129.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, FINAL GEAR
23611-MKC-A00
|
$221.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIFTER, FINAL DAMPER
23721-MJG-A00
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, FINAL DAMPER
23732-MJG-A00
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR (22X26X27.6)
23733-MN5-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, FINAL SHAFT
23741-MN5-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING STOPPER
23742-MN5-000
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, REVERSE DRIVEN (45T)
28178-MCA-000
|
$134.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPECIAL (22MM)
90205-MCA-780
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, LOCK (34MM)
90241-MKC-A00
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (22.1X36X2.6)
90498-MEC-000
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (22.2X35.2.6)
90498-MN5-000
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (22X52X15)
91003-MCA-003
|
$23.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP (OUTER) (22MM)
94510-22000
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
