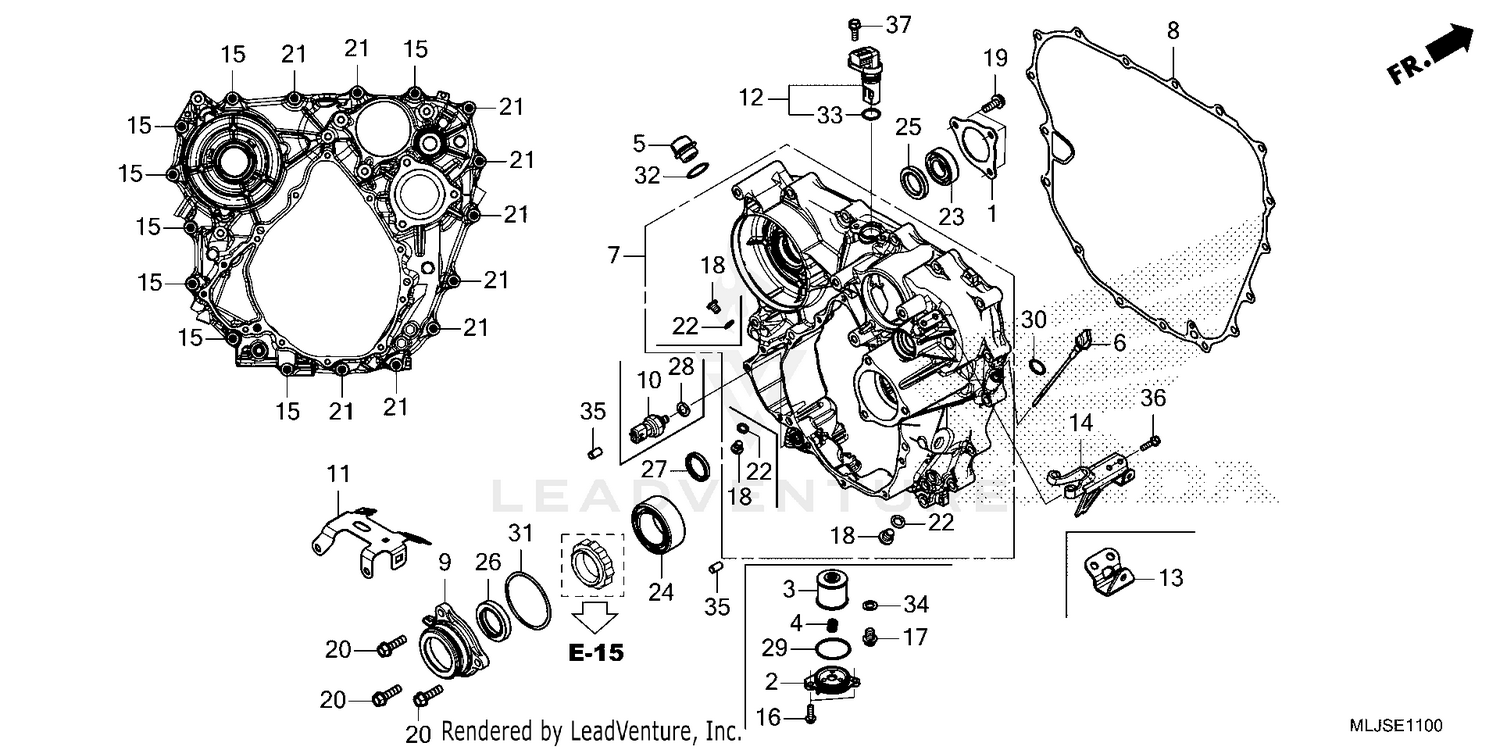

Rear Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, ISG BEARING SETTING
13459-MKC-A00
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, OIL FILLER
15611-KA4-710
|
$17.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
DIPSTICK, OIL
15650-MKC-A20
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE ASSY., RR.
21110-MKC-W00
|
$851.91 | ||
|
Unavailable |
|||
|
#8
GASKET, RR. CASE
21112-MKC-A01
|
$46.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, FINAL SHAFT BEARING
23751-MKC-A00
|
$76.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY
30531-MKC-W00
|
$20.09 | ||
|
Unavailable |
|||
|
#12
SENSOR ASSY., CRANK
37500-MKT-D02
|
$61.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY A, R. ENGINE SIDE COVER
83512-MKC-A20
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X55)
90001-MFA-D00
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SPECIAL (10X12)
90044-MKC-A00
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, DOWEL (6MM)
90071-171-010
|
$2.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X28)
90074-MKC-A00
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X45)
90101-MCA-A20
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL SPECIAL (6004)
91001-MKC-A01
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (34X62X24)
91029-MKC-A01
|
$34.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL (26X39X6.5)
91202-MKC-A01
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL (32X48X8)
91203-MKC-A01
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (27X34X5)
91208-MN5-003
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (6.5X2.2) (ARAI)
91303-MJ0-003
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (62.4X3.1)
91304-MN5-003
Superseded by 91316-PE7-730
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (62.4X3.1)
91316-PE7-730
|
$7.15 | ||
|
Unavailable |
|||
|
#31
O-RING (62.4X3.1)
91316-PT6-003
Superseded by 91316-PE7-730
|
$7.15 | ||
|
Unavailable |
|||
|
#32
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
O-RING
91333-PNC-006
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X18) (Honda Code 2410918)
95701-06018-07
|
$1.70 | ||
|
Unavailable |
|||
