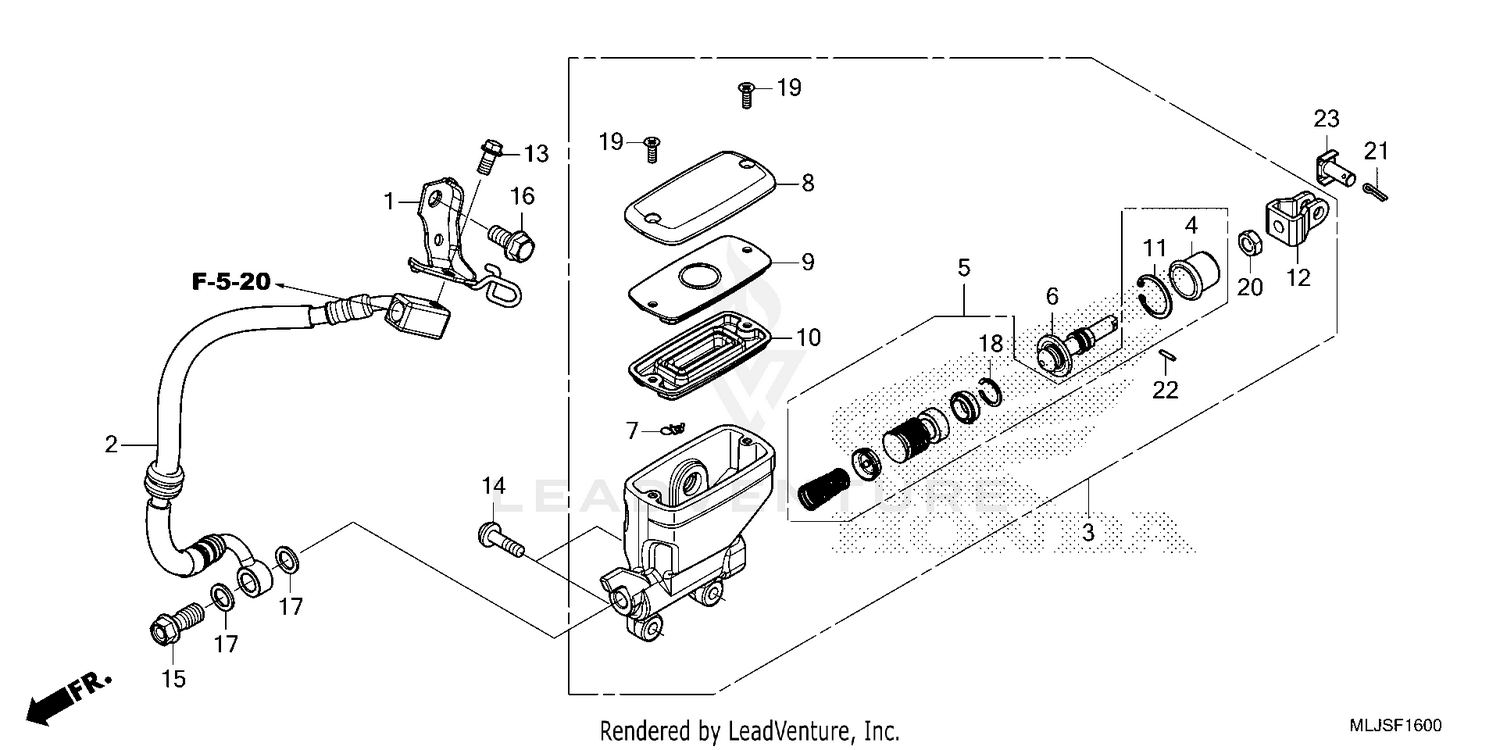

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY B, RR. BRAKE
43163-MKC-A20
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE A, RR. BRAKE
43310-MLJ-A01
|
$49.71 | ||
|
Unavailable |
|||
|
#3
MASTER CYLINDER ASSY., RR. (NISSIN)
43500-MKC-A01
|
$292.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON SET, RR. MASTER CYLINDER
43520-MKC-A01
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD ASSY., PUSH
43530-MKC-A01
|
$25.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-016
|
$27.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, BRAKE ROD
46504-MAH-671
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X12) (L. SIDE ONLY)
90013-GHB-610
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, RR. MASTER CYLINDER (6X21)
90144-MKC-A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X16)
90164-GHB-630
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP, PISTON
90651-MBG-006
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#20
NUT,HEX 8MM
94002-080700S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN, SPRING (2X10)
94305-20102
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
