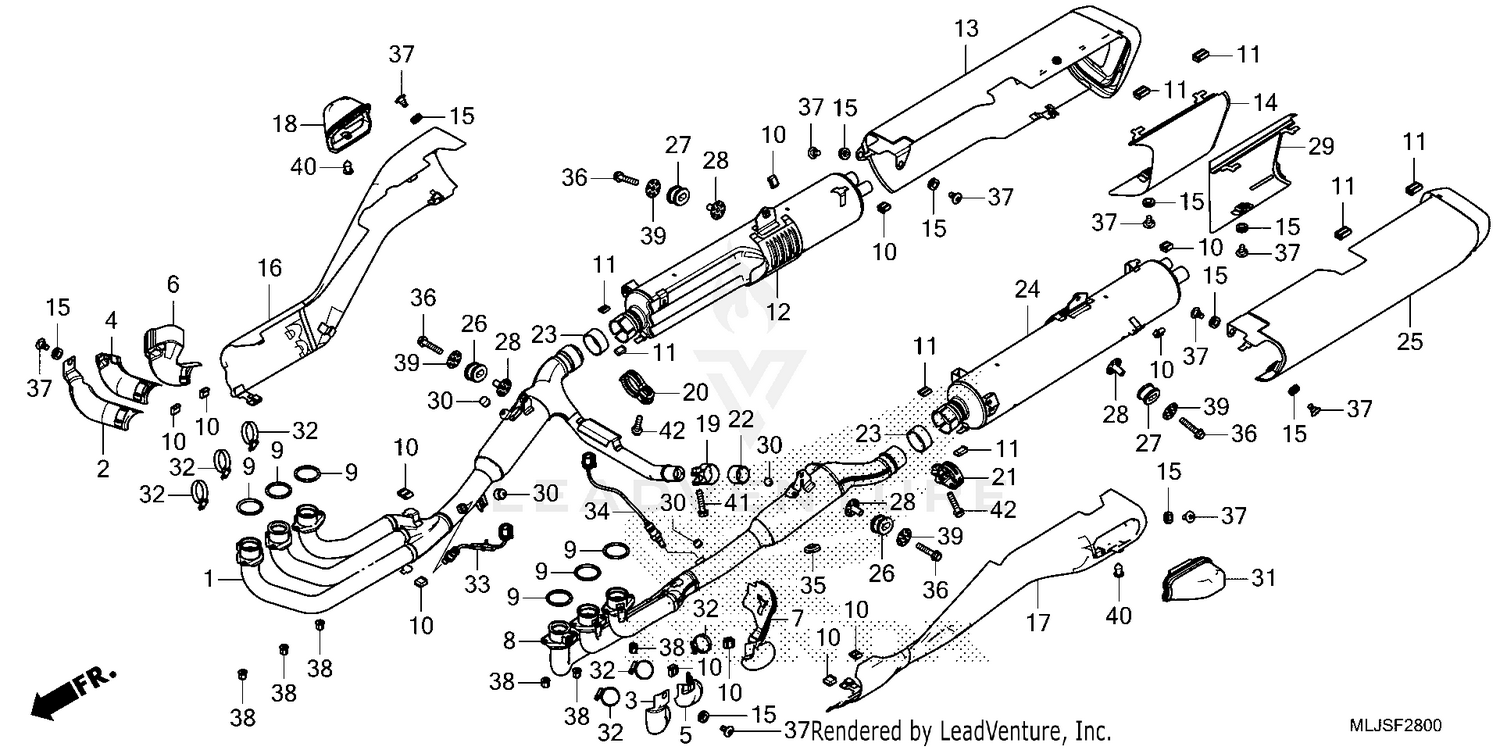

Exhaust Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, R. EX.
18150-MKC-A01
|
$1,317.84 | ||
|
Unavailable |
|||
|
#2
COVER, R. FR. EX.
18151-MKC-A00
|
$74.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, L. FR. EX.
18152-MKC-A00
|
$74.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, R. EX. MIDDLE
18153-MKC-A00
|
$66.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, L. EX. MIDDLE
18154-MKC-A00
|
$66.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, R. RR. EX.
18155-MKC-A00
|
$74.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, L. RR. EX.
18156-MKC-A00
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, L. EX.
18250-MKC-A01
|
$1,317.84 | ||
|
Unavailable |
|||
|
#9
GASKET, EX. PIPE
18291-MN4-920
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, PROTECTOR GASKET
18293-MCA-A20
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, PROTECTOR GASKET
18293-MJP-G50
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
MUFFLER COMP, EX. R
18300-MKC-A01
|
$878.31 | ||
|
Unavailable |
|||
|
#13
COVER, R. MUFFLER
18315-MKC-A01
|
$385.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, R. MUFFLER (INNER)
18325-MKC-A00
|
$129.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, PROTECTOR MOUNTING
18345-MBT-610
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, R. EX. PIPE
18353-MKC-A00
|
$267.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, L. EX. PIPE
18354-MKC-A00
|
$267.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, R. SADDLEBAG GUARD
18355-MKC-A00
|
$30.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, L. EX. PIPE
18374-MN1-670
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, R. MUFFLER
18375-MKC-A00
|
$36.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, L. MUFFLER
18376-MKC-A00
|
$36.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, MUFFLER
18391-MB0-891
|
$21.71 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, RR. MUFFLER
18392-MG7-750
|
$16.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
MUFFLER COMP, EX. L
18400-MKC-A01
|
$878.31 | ||
|
Unavailable |
|||
|
#25
COVER, L. MUFFLER
18415-MKC-A01
|
$385.58 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER, EX. PIPE MOUNTING
18421-MKC-A00
|
$26.51 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER, MUFFLER MOUNTING
18422-MKC-A00
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR, EX. PIPE MOUNTING
18423-MFJ-D00
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, L. MUFFLER (INNER)
18425-MKC-A00
|
$129.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
RUBBER, PROTECTOR
18443-MCW-D60
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, L. SADDLEBAG GUARD
18455-MKC-A00
|
$30.16 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP, R. RADIATOR HOSE
19509-MM5-003
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
SENSOR (#1-3-5)
36533-MKC-W01
|
$223.05 | ||
|
Unavailable |
|||
|
#34
SENSOR (#2-4-6)
36534-MKC-W01
|
$223.05 | ||
|
Unavailable |
|||
|
#35
RUBBER, STAND STOPPER
50524-MN8-000
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (8X40)
90102-MKC-A00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN (6X12)
90106-MKC-A00
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, SPECIAL (6MM)
90304-HB3-771
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER (8.5X38)
90507-MKC-A00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BOLT, FLANGE (8X35)
96400-08035-04
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE (8X40)
96400-08040-04
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
