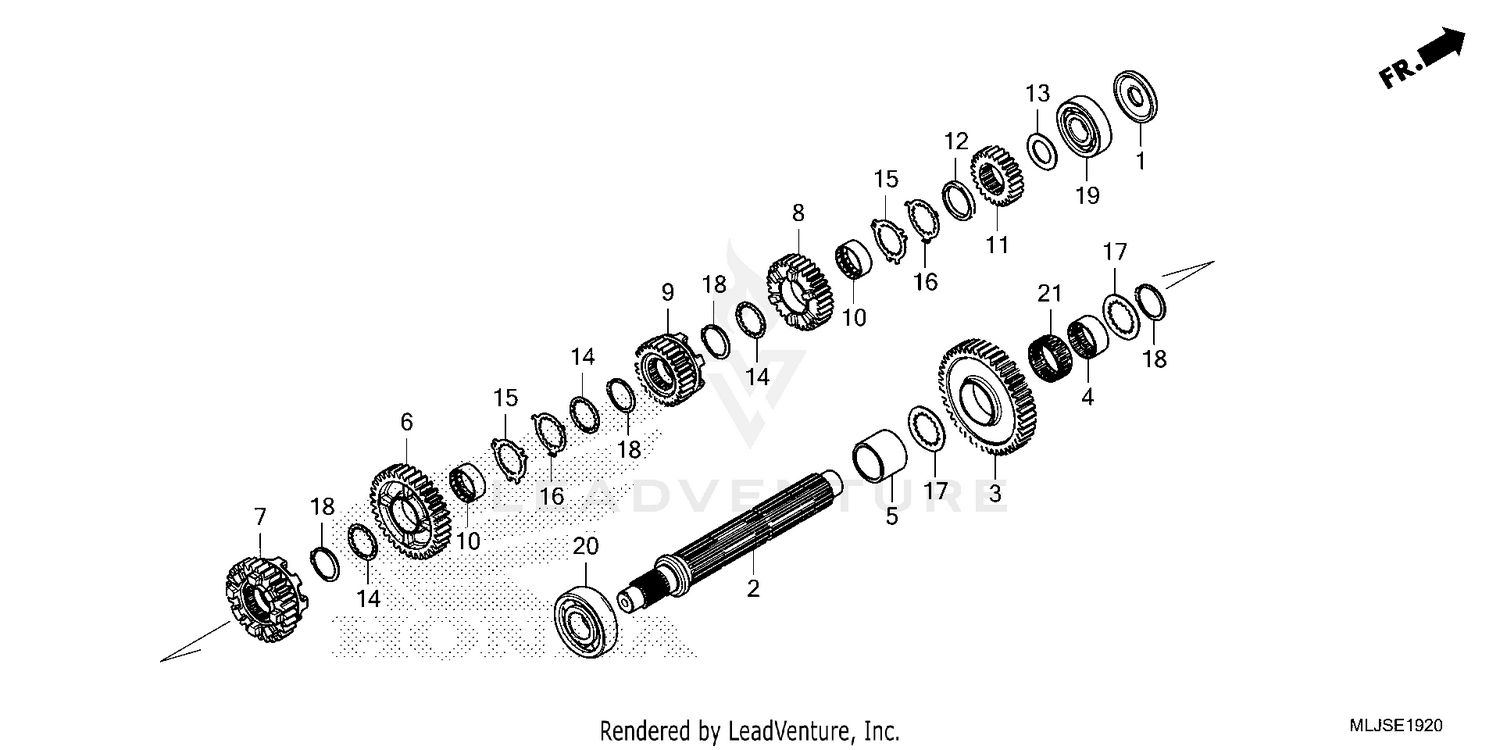

Transmission (countershaft) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER B, BEARING
11369-MKC-A00
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT (18T)
23221-MKC-A20
|
$261.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTER FIRST (44T)
23421-MKC-A20
|
$119.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, SPLINE (34X38X17)
23422-MKC-A20
|
$31.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR (34X42X32.2)
23423-MKC-A20
|
$33.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (34T)
23441-MKC-A20
|
$131.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTER THIRD (29T)
23461-MKC-A20
|
$148.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTER FOURTH (32T)
23481-MKC-A20
|
$133.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT FIFTH (28T)
23501-MKC-A20
|
$135.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SPLINE (34X37X15)
23523-MKC-A00
|
$23.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT TOP (24T)
23541-MKC-A00
|
$72.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR (34X42X5.4)
23542-MKC-A00
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPECIAL (25X40X2)
90417-HL4-000
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPLINE (34X40X1.5)
90462-MKC-A00
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPLINE (34MM)
90463-MKC-A00
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, LOCK (34MM)
90464-MKC-A00
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPLINE (34X47X1.5)
90465-MKC-A00
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP (34MM)
90601-MKC-A00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (25X62X17) (EC)
91024-MKC-A01
|
$31.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (28X68X18) (EC)
91025-MKC-A01
|
$34.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE (38X43X17)
91027-MKC-A21
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
