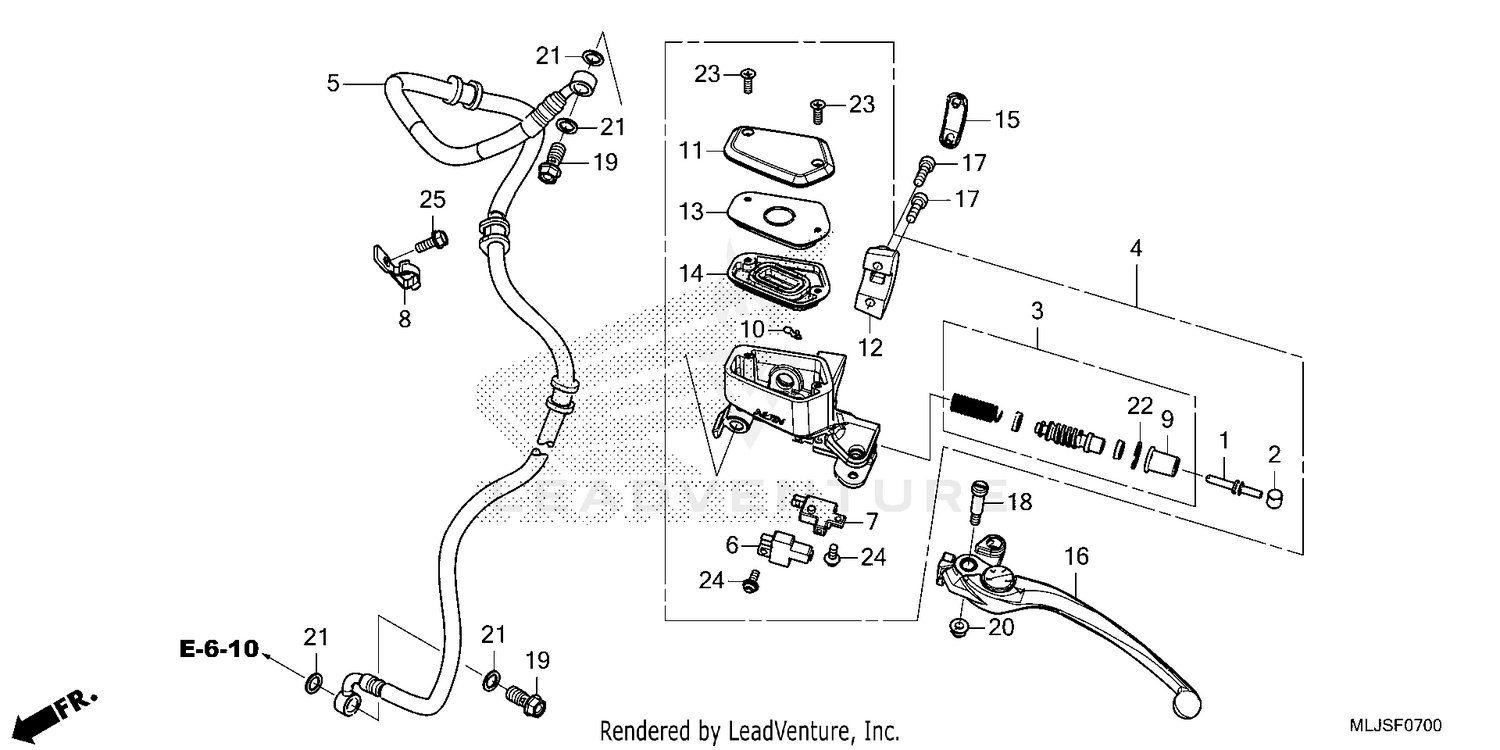

Clutch Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD, PUSH
22884-MAT-E01
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
22885-MB0-006
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON SET, MASTER CYLINDER
22886-MAT-E01
|
$69.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., CLUTCH
22890-MKC-A21
|
$265.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE, CLUTCH
22900-MKC-A11
|
$87.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., CLUTCH
35330-MB0-003
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., CLUTCH CRUISE (TOYO)
35335-MG9-951
|
$28.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP A, FR. BRAKE HOSE
45158-MFL-D00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
45504-MAT-E01
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, MASTER CYLINDER
45513-MGE-006
|
$40.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, MASTER CYLINDER
45517-MAM-A62
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
45518-MGE-006
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM
45520-MGE-006
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, BRAKE MASTER CYLINDER HOLDER
45553-MAM-A60
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER ASSY., L. HANDLE
53180-MKC-A22
|
$76.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (6X22)
90101-MCL-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HANDLE LEVER
90114-MG9-951
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CAP (6MM)
90202-ZV0-000
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X16)
95701-06016-07
|
$1.70 | ||
|
Unavailable |
|||
