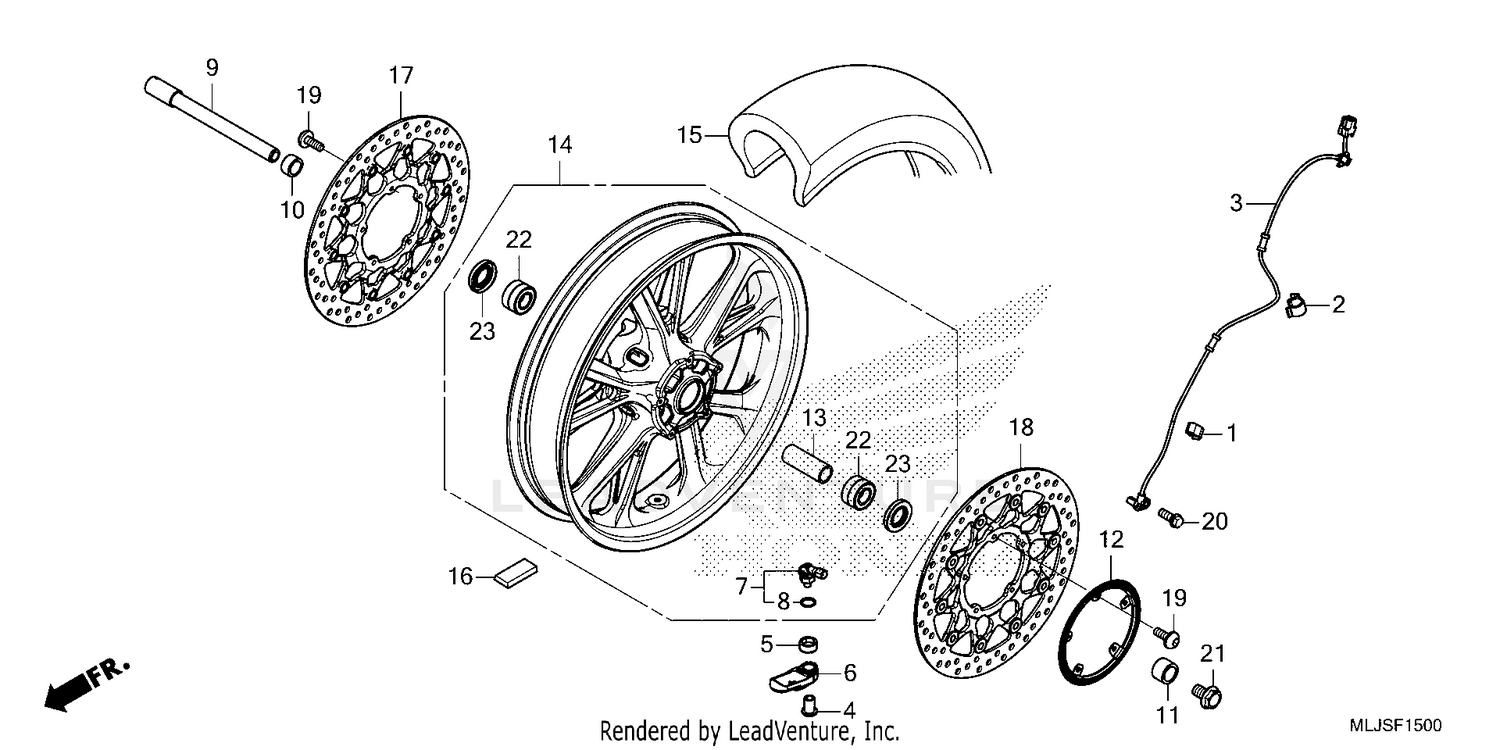

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, ABS WIRE
38516-MJN-A11
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, ABS WIRE (D12)
38517-MGE-003
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
SENSOR, FR. WHEEL SPEED
38520-MKC-A01
|
$211.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, TPMS
39401-MKC-A01
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, MOUNTING
39402-MKC-A01
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
TRANSMITTER, TPMS
39410-MLJ-M01
|
$155.76 | ||
|
Unavailable |
|||
|
#7
VALVE ASSY., CLAMP IN
42755-MKC-A01
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
42758-MKA-D81
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE, FR. WHEEL
44301-MKC-A00
|
$59.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, R. FR. WHEEL SIDE
44311-MKC-A00
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, L. FR. WHEEL SIDE
44312-MKC-A00
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, FR. PULSER
44515-MKC-A00
|
$84.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, FR. AXLE DISTANCE
44620-MCA-000
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
WHEEL SUB-ASSY., FR.
44650-MKC-A00
|
$1,114.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE, FR.
44711-MKC-A04
|
$261.40 | ||
|
Unavailable |
|||
|
#15
TIRE (130/70R18)
44711-MKC-A05
|
$273.52 | ||
|
Unavailable |
|||
|
#16
WEIGHT (10G)
44721-MLN-ES1
|
$3.05 | ||
|
Unavailable |
|||
|
#16
WEIGHT (15G)
44722-MLN-ES1
|
$3.69 | ||
|
Unavailable |
|||
|
#16
WEIGHT (20G)
44723-MLN-ES1
|
$3.69 | ||
|
Unavailable |
|||
|
#17
DISK, R. FR. BRAKE
45120-MKC-A01
|
$665.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
DISK, L. FR. BRAKE
45220-MKC-A01
|
$665.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, BRAKE DISK (6X17)
90106-MFL-D20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X14)
90117-MJP-G60
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FR. AXLE
90305-ML7-000
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6004) (X2) (LU)
91055-MCA-A61
|
$26.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (28X47.2X7) (ARAI)
91252-MC4-013
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
