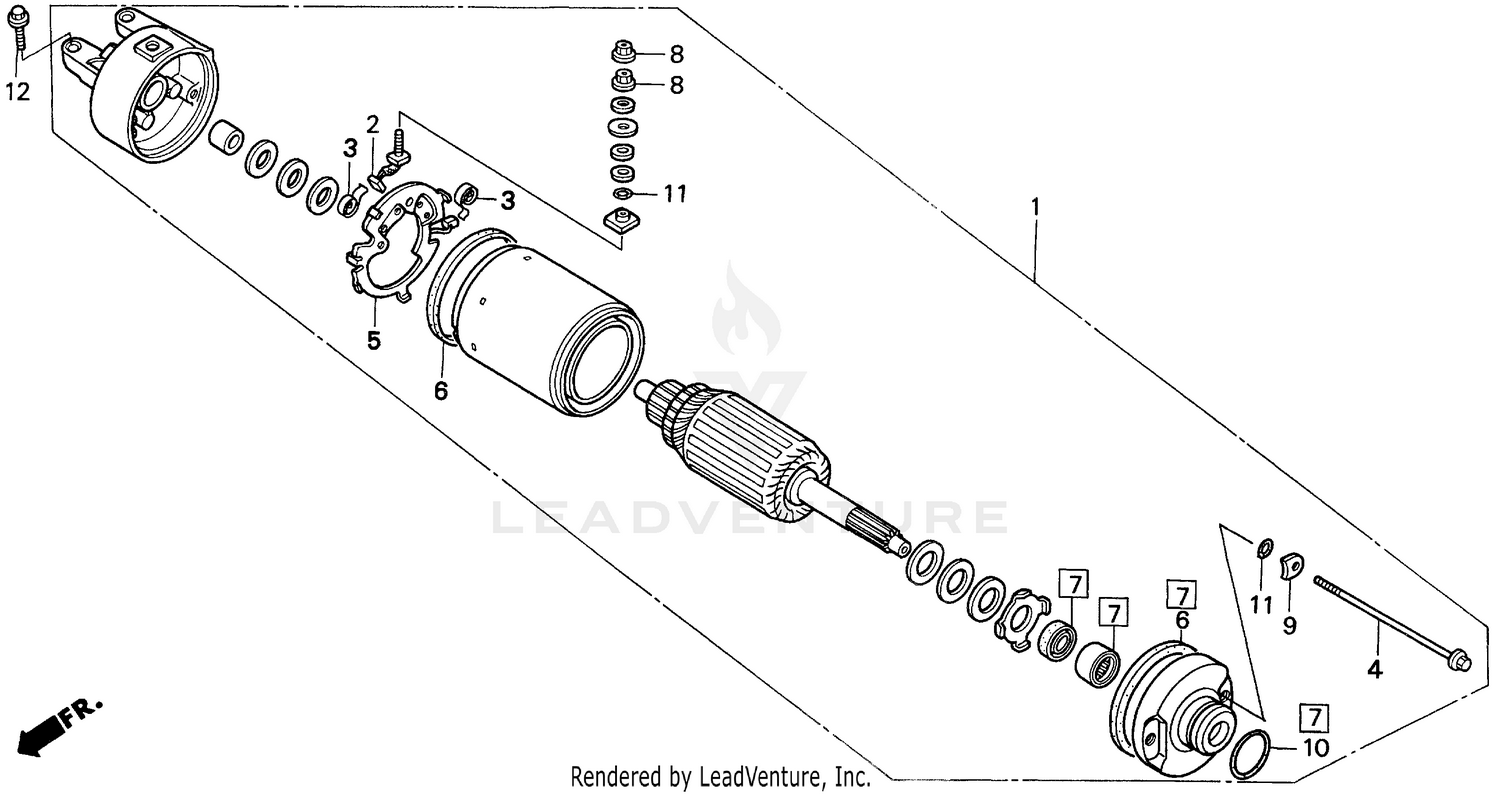

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY. (MITSUBA)
31200-HC4-033
|
$512.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)
31201-KS5-901
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, CARBON BRUSH
31204-KS5-901
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SETTING
31205-MN4-008
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER SET, BRUSH
31206-MN4-008
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING
31207-KS5-901
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, FR.
31210-HC4-003
|
$76.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, STEEL PLATE
90122-MN4-008
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
O-RING (24.4X3.1)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#11
O-RING (4X2)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X25)
95801-06025-00
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
