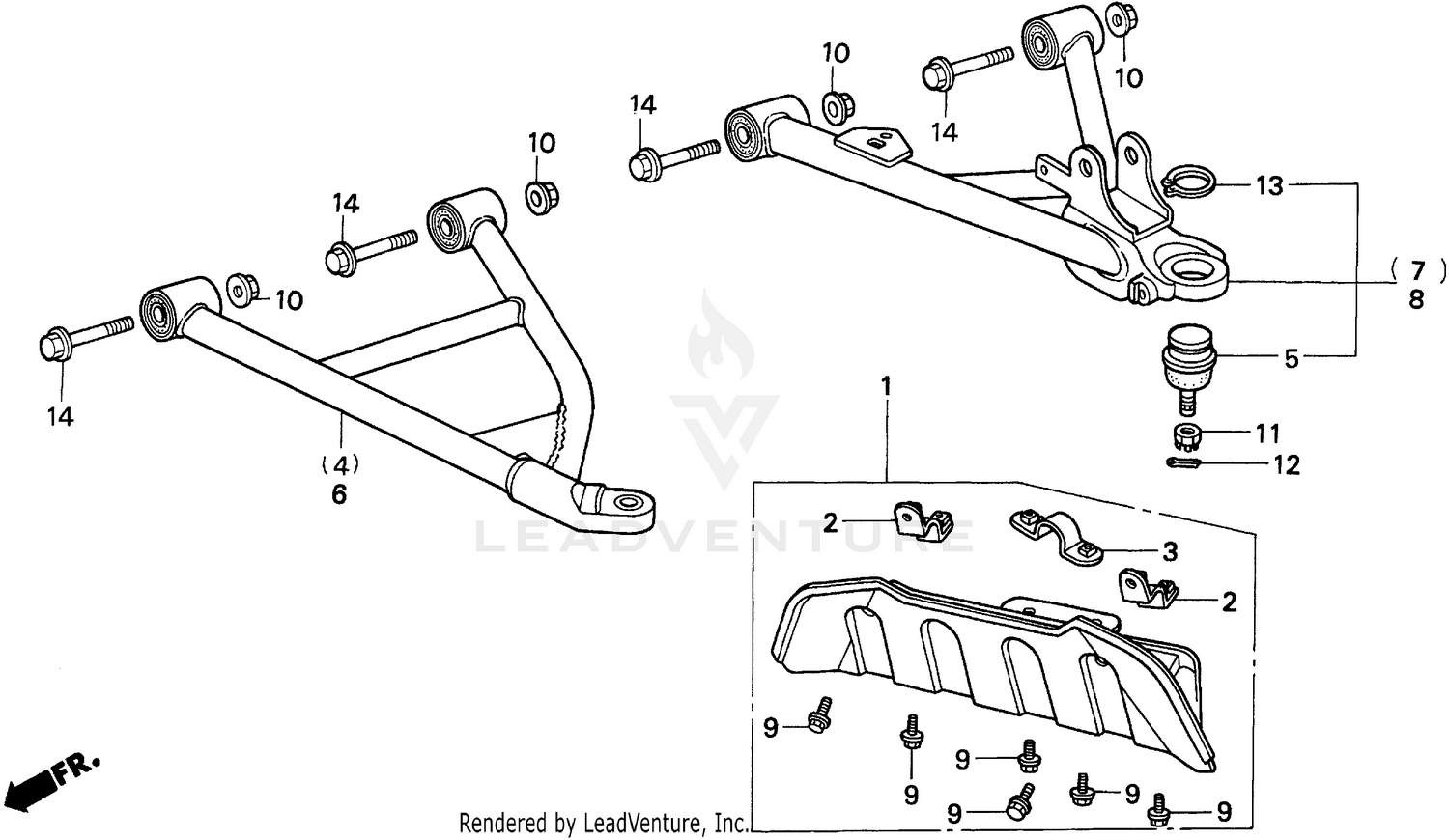

300 Fw Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD KIT, FR. (NOT AVAILABLE)
51310-HC5-970
|
$78.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY A, FR. GUARD
51311-HC5-970
|
$8.25 | ||
|
Unavailable |
|||
|
#3
STAY B, FR. GUARD (NOT AVAILABLE)
51312-HC5-970
|
$12.43 | ||
|
Unavailable |
|||
|
#4
ARM ASSY., R. FR. (LOWER)
51350-HM5-850
|
$238.88 | ||
|
Unavailable |
|||
|
#5
JOINT A, ARM BALL
51355-HM5-A81
Superseded by 51355-HP5-601
|
$22.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT A, ARM BALL
51355-HM5-931
Superseded by 51355-HP5-601
|
$22.84 | ||
|
Unavailable |
|||
|
#5
JOINT A, ARM BALL
51355-HP5-601
|
$22.84 | ||
|
Unavailable |
|||
|
#6
ARM ASSY., L. FR. (LOWER)
51360-HM5-850
|
$282.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM ASSY., R. (UPPER)
51370-HM5-A10
Superseded by 51370-HM5-A80
|
$389.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM ASSY., R. (UPPER)
51370-HM5-A80
|
$389.53 | ||
|
Unavailable |
|||
|
#8
ARM ASSY., L. (UPPER)
51380-HM5-A10
Superseded by 51380-HM5-A80
|
$389.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM ASSY., L. (UPPER)
51380-HM5-A80
|
$389.53 | ||
|
Unavailable |
|||
|
#9
BOLT, FENDER STAY
90001-HC5-600
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP (OUTER) (32MM)
94514-32000
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Unavailable |
|||
