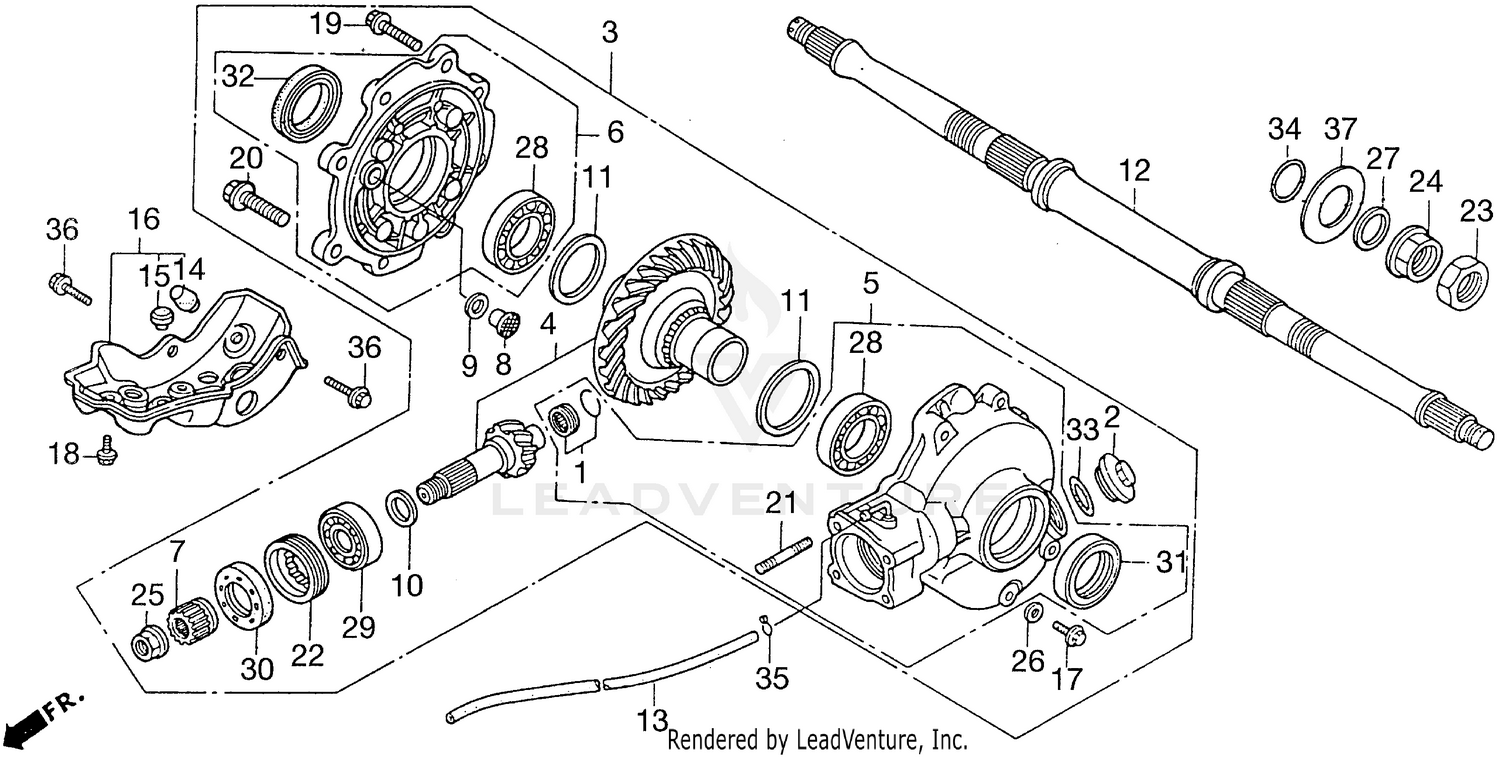

Final Driven Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-HM4-850
|
$38.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#3
GEAR ASSY., FINAL
41300-HM5-A10
|
$936.30 | ||
|
Unavailable |
|||
|
#4
GEAR SET, FINAL (NOT AVAILABLE)
41310-HC5-305
|
$467.90 | ||
|
Unavailable |
|||
|
#5
CASE SET, FINAL (NOT AVAILABLE)
41311-HM5-A10
|
$282.02 | ||
|
Unavailable |
|||
|
#6
COVER SET, GEAR CASE (NOT AVAILABLE)
41320-HM5-850
|
$178.61 | ||
|
Unavailable |
|||
|
#7
JOINT, PINION (NOT AVAILABLE)
41411-HA0-000
|
$78.74 | ||
|
Unavailable |
|||
|
#8
PIN, RING GEAR STOPPER
41436-MB0-310
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM A, STOPPER PIN (0.10)
41437-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM B, STOPPER PIN (0.15)
41438-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM A, PINION GEAR (1.82)
41451-HA0-000
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM B, PINION GEAR (1.88)
41452-HA0-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM C, PINION GEAR (1.94)
41453-HA0-000
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM D, PINION GEAR (2.00)
41454-HA0-000
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM E, PINION GEAR (2.06)
41455-HA0-000
|
$6.26 | ||
|
Unavailable |
|||
|
#10
SHIM F, PINION GEAR (2.12)
41456-HA0-000
|
$6.26 | ||
|
Unavailable |
|||
|
#10
SHIM G, PINION GEAR (2.18)
41457-HA0-000
|
$6.26 | ||
|
Unavailable |
|||
|
#11
SPACER U, RING GEAR (0.96) (NOT AVAILABLE)
41535-HC4-000
|
$9.91 | ||
|
Unavailable |
|||
|
#11
SPACER V, RING GEAR (1.02) (NOT AVAILABLE)
41536-HC4-000
|
$9.69 | ||
|
Unavailable |
|||
|
#11
SPACER W, RING GEAR (1.08) (NOT AVAILABLE)
41537-HC4-000
|
$9.62 | ||
|
Unavailable |
|||
|
#11
SPACER X, RING GEAR (1.14) (NOT AVAILABLE)
41538-HC4-000
|
$9.69 | ||
|
Unavailable |
|||
|
#11
SPACER Y, RING GEAR (1.20) (NOT AVAILABLE)
41539-HC4-000
|
$9.69 | ||
|
Unavailable |
|||
|
#11
SPACER A, RING GEAR (1.26)
41540-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER B, RING GEAR (1.32)
41541-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER C, RING GEAR (1.38)
41542-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER D, RING GEAR (1.44)
41543-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER E, RING GEAR (1.50)
41544-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER F, RING GEAR (1.56)
41545-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER G, RING GEAR (1.62)
41546-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER H, RING GEAR (1.68)
41547-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER I, RING GEAR (1.74)
41548-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER J, RING GEAR (1.80)
41549-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER K, RING GEAR (1.86)
41550-HC4-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER L, RING GEAR (1.92) (NOT AVAILABLE)
41551-HC4-000
|
$9.91 | ||
|
Unavailable |
|||
|
#11
SPACER M, RING GEAR (1.98) (NOT AVAILABLE)
41552-HC4-000
|
$9.59 | ||
|
Unavailable |
|||
|
#11
SPACER N, RING GEAR (2.04)
41553-HC4-000
|
$9.59 | ||
|
Unavailable |
|||
|
#11
SPACER O, RING GEAR (2.10) (NOT AVAILABLE)
41554-HC4-000
|
$9.59 | ||
|
Unavailable |
|||
|
#11
SPACER P, RING GEAR (2.16) (NOT AVAILABLE)
41555-HC4-000
|
$9.59 | ||
|
Unavailable |
|||
|
#11
SPACER Q, RING GEAR (2.22) (NOT AVAILABLE)
41556-HC4-000
|
$9.91 | ||
|
Unavailable |
|||
|
#11
SPACER R, RING GEAR (2.28) (NOT AVAILABLE)
41557-HC4-000
|
$9.91 | ||
|
Unavailable |
|||
|
#11
SPACER S, RING GEAR (2.34) (NOT AVAILABLE)
41558-HC4-000
|
$9.62 | ||
|
Unavailable |
|||
|
#11
SPACER T, RING GEAR (2.40)
41559-HC4-000
|
$9.94 | ||
|
Unavailable |
|||
|
#12
AXLE, RR.
42310-HC5-970
|
$227.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, BREATHER (3.5X1250)
43133-HC5-970
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER A, STOPPER
50352-HM5-730
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER B, STOPPER
50354-HM5-730
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, SKID (SOURCE: VINTAGE PARTS INC.)
50355-HM5-730
|
$297.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X10)
90116-965-000
|
$4.49 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X27)
90133-MB0-000
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (10X35)
90134-HA0-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, STUD (10X25)
90137-HA7-770
|
$7.42 | ||
|
Unavailable |
|||
|
#22
NUT, LOCK (60MM)
90244-HA0-000
|
$43.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, RR. AXLE
90307-HM5-930
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT A, RR. AXLE
90308-HM5-930
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (16MM)
90381-HA0-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, TAPER
90481-HC4-000
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (43X68X13)
91051-HC4-003
|
$57.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (22X56X16)
91063-HC4-771
|
$100.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (38X64X11) (KOYO)
91251-HA0-013
Superseded by 91251-HC5-005
|
$20.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (38X64X11) (KOYO)
91251-HC5-005
|
$20.40 | ||
|
Unavailable |
|||
|
#31
DUST SEAL (42X58X8)
91252-HM5-A11
|
$12.60 | ||
|
Unavailable |
|||
|
#32
OIL SEAL (42X51X7)
91271-HC4-004
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (30.8MM)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
O-RING (31.6X2.2)
91354-HC4-901
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
WASHER (32X60X1.5)
90501-HM8-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
