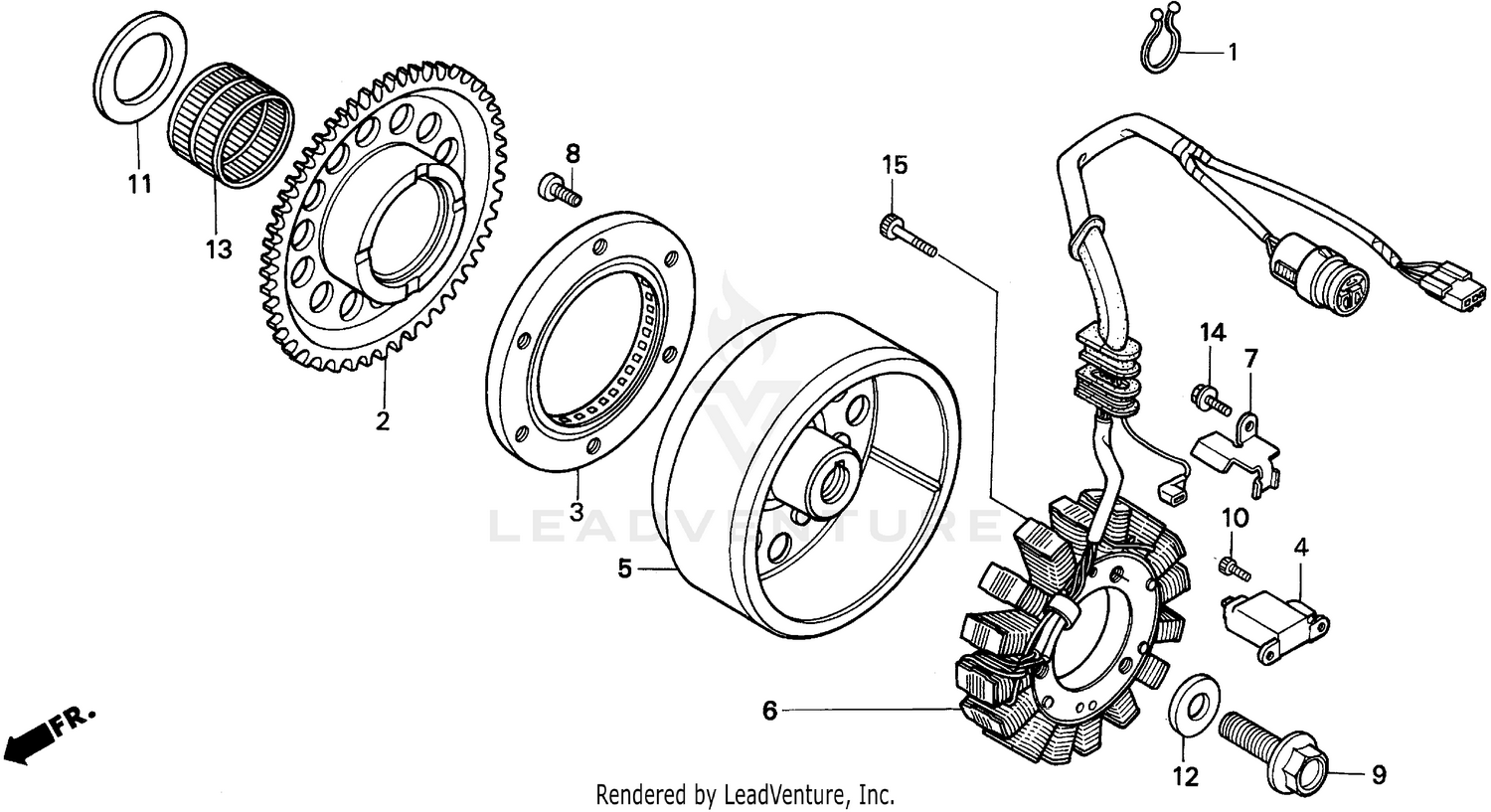

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, TUBE (26)
17916-PE1-671
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, STARTING DRIVEN (70T)
28110-HC4-000
|
$214.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH, STARTER (OUTER) (NOT AVAILABLE)
28125-HC4-014
|
$187.81 | ||
|
Unavailable |
|||
|
#4
GENERATOR ASSY., PULSE (TEC)
30300-HA0-033
|
$49.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLYWHEEL (DENSO) (NOT AVAILABLE)
31110-HC4-004
|
$444.24 | ||
|
Unavailable |
|||
|
#5
FLYWHEEL (MITSUBA) (NOT AVAILABLE)
31110-HC4-013
|
$454.90 | ||
|
Unavailable |
|||
|
#6
STATOR (12WDGS)
31120-HC4-014
|
$276.90 | ||
|
Unavailable |
|||
|
#6
STATOR (18WDGS)
31120-HC4-750
|
$287.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRE (NOT AVAILABLE)
32111-HC4-000
|
$3.84 | ||
|
Unavailable |
|||
|
#8
BOLT, SOCKET (6X20)
90010-HC4-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (12X45)
90023-HA7-670
Superseded by 90024-MT3-000
|
$13.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (12X45)
90023-428-000
Superseded by 90024-MT3-000
|
$13.43 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (12X45)
90024-MT3-000
|
$13.43 | ||
|
Unavailable |
|||
|
#10
BOLT, SOCKET (5X12)
90089-KR0-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (26X40X2.6)
90402-KM1-670
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (12X30X4.5)
90403-HC4-000
Superseded by 90401-KK9-960
|
$8.66 | ||
|
Unavailable |
|||
|
#13
BEARING, NEEDLE (26X31X24) (KOYO)
91102-HC4-004
|
$36.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SOCKET (6X28) (NOT AVAILABLE)
96700-06028-00
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
