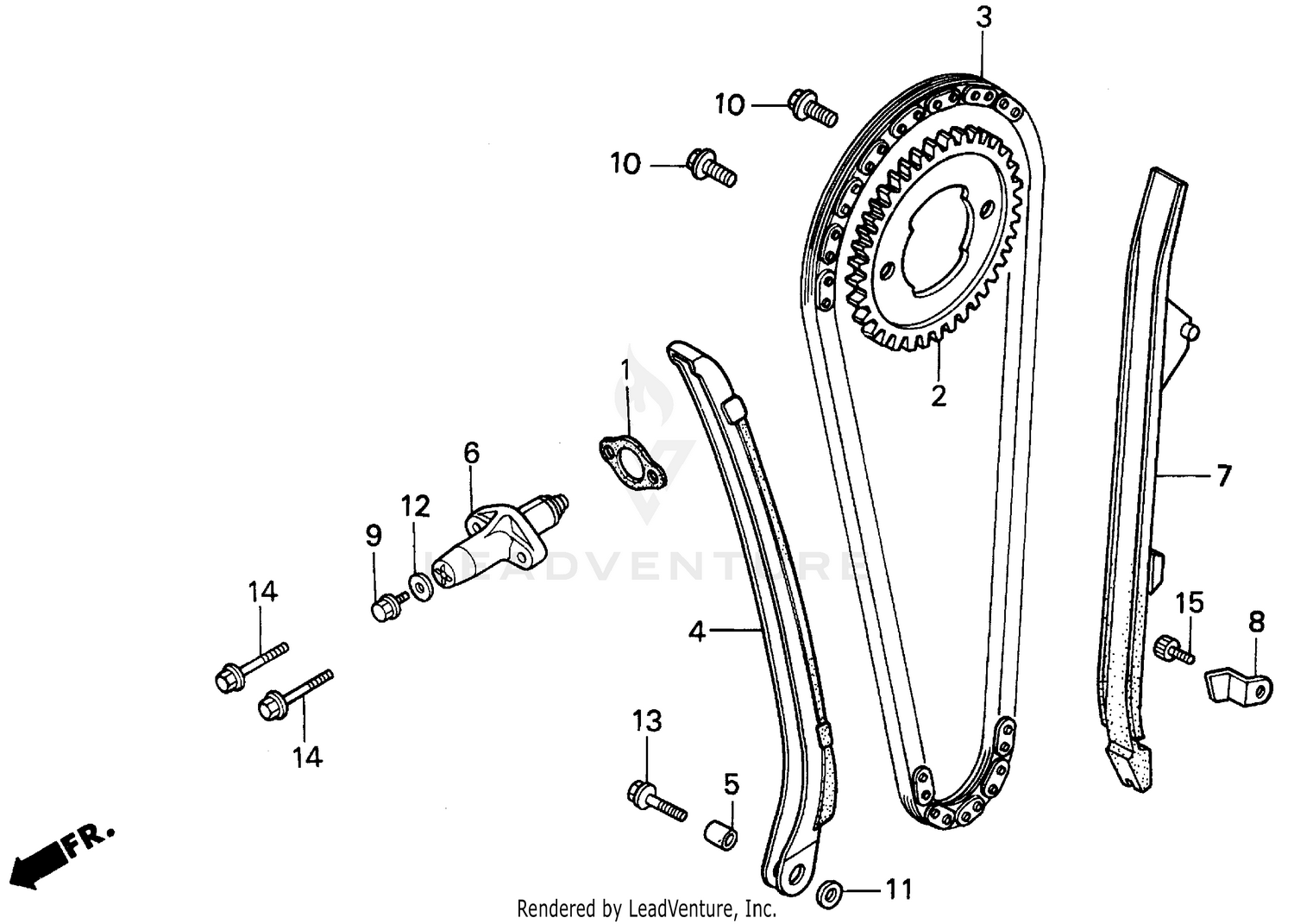

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, TENSIONER HOLE
12194-HC5-740
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAMSHAFT (38T) (NOT AVAILABLE)
14321-HC4-000
|
$40.99 | ||
|
Unavailable |
|||
|
#3
CHAIN, CAM (110L) (BORG WARNER)
14401-HC0-003
|
$221.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER, CAM CHAIN (KOYO)
14511-HC4-005
|
$99.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, TENSIONER (6X9)
14515-KF0-000
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
LIFTER ASSY., TENSIONER
14520-HA0-771
|
$142.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, CAM CHAIN (KOYO)
14620-HC4-005
|
$58.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, CHAIN GUIDE (NOT AVAILABLE)
14625-HA0-000
|
$4.23 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (6X13)
90002-HA7-670
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE KNOCK (7X10.5)
90082-HA0-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SEALING (6MM)
90442-397-000
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X25)
95801-06025-00
|
$1.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, SOCKET (6X12)
96600-06012-00
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
