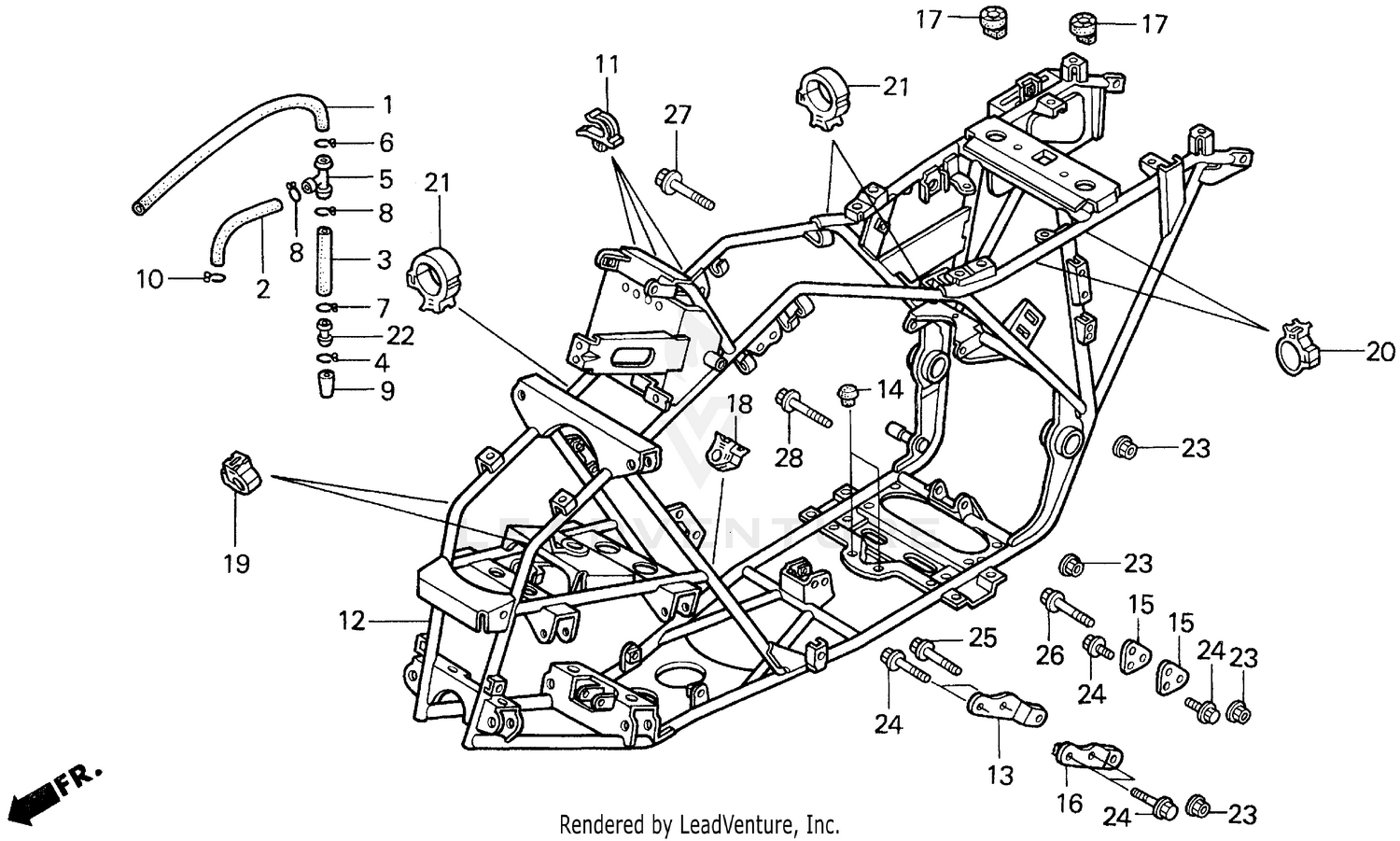

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, BREATHER
15761-HM5-670
|
$10.63 | ||
|
Unavailable |
|||
|
#2
TUBE, BREATHER (UPPER) (NOT AVAILABLE)
15762-HC4-000
|
$16.16 | ||
|
Unavailable |
|||
|
#3
TUBE, BREATHER (LOWER) (NOT AVAILABLE)
15763-HC4-000
|
$13.90 | ||
|
Unavailable |
|||
|
#4
CLIP, OIL DRAIN TUBE
15771-551-000
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, BREATHER THREE WAY
15772-376-000
|
$22.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, BREATHER TUBE
15772-551-000
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, BREATHER TUBE
17316-HA0-000
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, BREATHER TUBE
17316-611-000
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, DRAIN
17358-HM8-000
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP B, HARNESS (SOURCE: VINTAGE PARTS INC.)
32172-HM5-850
|
$3.33 | ||
|
Unavailable |
|||
|
#12
FRAME (SOURCE: VINTAGE PARTS INC.)
50100-HM5-A10
|
$4,073.55 | ||
|
Unavailable |
|||
|
#13
HANGER, R. ENGINE (UPPER) (SOURCE: VINTAGE PARTS INC.)
50351-HC5-970
|
$39.28 | ||
|
Unavailable |
|||
|
#14
RUBBER B, STOPPER
50354-HM5-730
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, FR. ENGINE HANGER (SOURCE: VINTAGE PARTS INC.)
50356-HM5-670
|
$3.33 | ||
|
Unavailable |
|||
|
#16
HANGER, L. ENGINE (UPPER) (SOURCE: VINTAGE PARTS INC.)
50361-HC5-970
|
$43.70 | ||
|
Unavailable |
|||
|
#17
CUSHION, SEAT MOUNTING
77207-HA0-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, CABLE (8MM)
90690-GHB-631
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, CABLE (15MM)
90690-GHB-651
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, CABLE (20MM)
90690-GHB-661
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, CABLE (25MM)
90690-GHB-671
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT, TUBE
91463-393-780
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (10X20)
95701-10020-00
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (10X75)
95701-10075-00
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (10X80)
95701-10080-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (10X100)
95701-10100-00
|
$3.36 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (10X110) (NOT AVAILABLE)
95701-10110-00
|
$3.78 | ||
|
Unavailable |
|||
