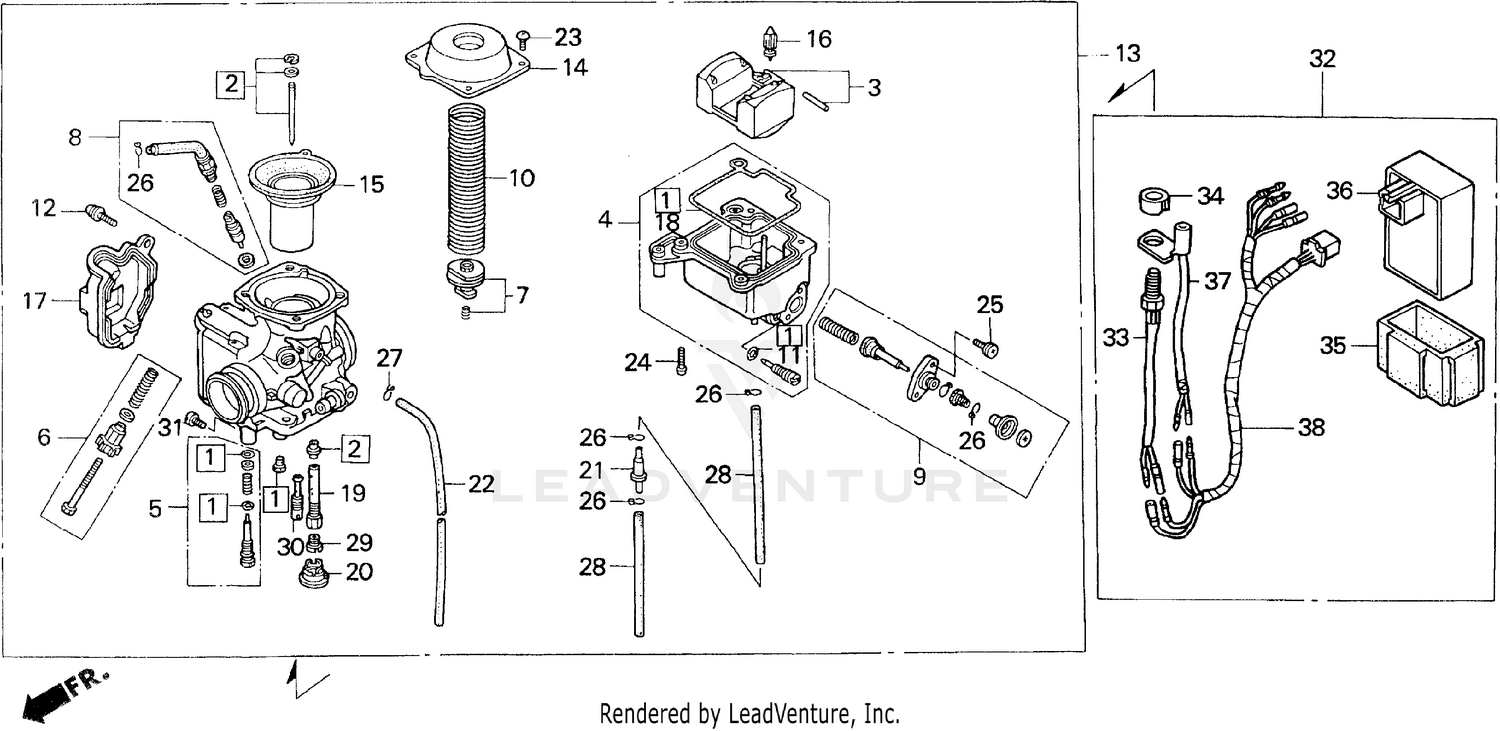

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-HM5-730
Superseded by 16010-HM7-700
|
$30.20 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-HM7-700
|
$30.20 | ||
|
Unavailable |
|||
|
#2
NEEDLE SET, JET (NOT AVAILABLE)
16012-HM5-730
|
$38.75 | ||
|
Unavailable |
|||
|
#3
FLOAT SET
16013-KR3-980
|
$66.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-HM5-730
|
$113.81 | ||
|
Unavailable |
|||
|
#5
SCREW SET
16016-HM5-730
|
$24.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET
16028-HM5-730
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE SET, VALVE
16037-HM5-L00
|
$23.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE SET, VALVE
16037-KM3-751
Superseded by 16037-HM5-L00
|
$23.02 | ||
|
Unavailable |
|||
|
#8
VALVE SET, STARTER
16046-HM5-730
|
$81.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
PUMP SET
16048-HC4-013
Superseded by 16048-HN7-003
|
$106.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
PUMP SET
16048-HM7-700
Superseded by 16048-HN7-003
|
$106.24 | ||
|
Unavailable |
|||
|
#9
PUMP SET
16048-HN7-003
|
$106.24 | ||
|
Unavailable |
|||
|
#10
SPRING, COMPRESSION COIL
16050-HC4-003
Superseded by 16050-HM5-L00
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION COIL
16050-HM5-L00
|
$13.60 | ||
|
Unavailable |
|||
|
#12
SCREW-WASHER
16080-HC0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
CARBURETOR ASSY. (VE91D A)
16100-HM5-L01
|
$567.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
CARBURETOR ASSY. (VE91D A)
16100-HM5-850
Superseded by 16100-HM5-L01
|
$567.67 | ||
|
Unavailable |
|||
|
#14
TOP
16107-KM3-702
|
$47.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON, VACUUM
16111-HC4-003
|
$97.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, FLOAT
16155-397-971
|
$50.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, BODY
16157-HC4-003
Superseded by 16157-HN8-003
|
$33.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, BODY
16157-HN8-003
|
$33.33 | ||
|
Unavailable |
|||
|
#19
HOLDER, NEEDLE JET
16165-HC4-840
Superseded by 16165-HN5-B01
|
$43.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, NEEDLE JET
16165-HN5-B01
|
$43.05 | ||
|
Unavailable |
|||
|
#20
HOLDER, JET
16168-HC4-003
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
VALVE, ONE-WAY
16180-HC4-003
|
$21.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE (NOT AVAILABLE)
16199-HM5-850
|
$8.95 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN (4X8)
93500-04008-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (4X8)
93500-04008-1H
Superseded by 93500-04008-0H
|
$0.95 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (4X14)
93500-04014-0H
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (4X14)
93500-04014-1H
Superseded by 93500-04014-0H
|
$0.87 | ||
|
Unavailable |
|||
|
#25
SCREW-WASHER (4X12)
93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#25
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#26
CLIP, TUBE (B7)
95002-02079
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, TUBE (B1 8)
95002-02089
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
BULK HOSE, VACUUM (3.5X1000) (3.5X140)
95005-35001-50M
|
$16.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, MAIN (#120)
99101-GHB-1200
Superseded by 99101-MBZ-1200
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, MAIN (#125)
99101-GHB-1250
Superseded by 99101-443-1250
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, MAIN (#120)
99101-MBZ-1200
|
$11.05 | ||
|
Unavailable |
|||
|
#29
JET, MAIN (#125)
99101-443-1250
|
$7.27 | ||
|
Unavailable |
|||
|
#30
JET (#40)
99103-MA1-0400
Superseded by 99103-MAZ-0400
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET (#85)
99112-HC4-0850
Superseded by 99112-HN2-0850
|
$19.36 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET (#85)
99112-HN2-0850
|
$19.36 | ||
|
Unavailable |
|||
