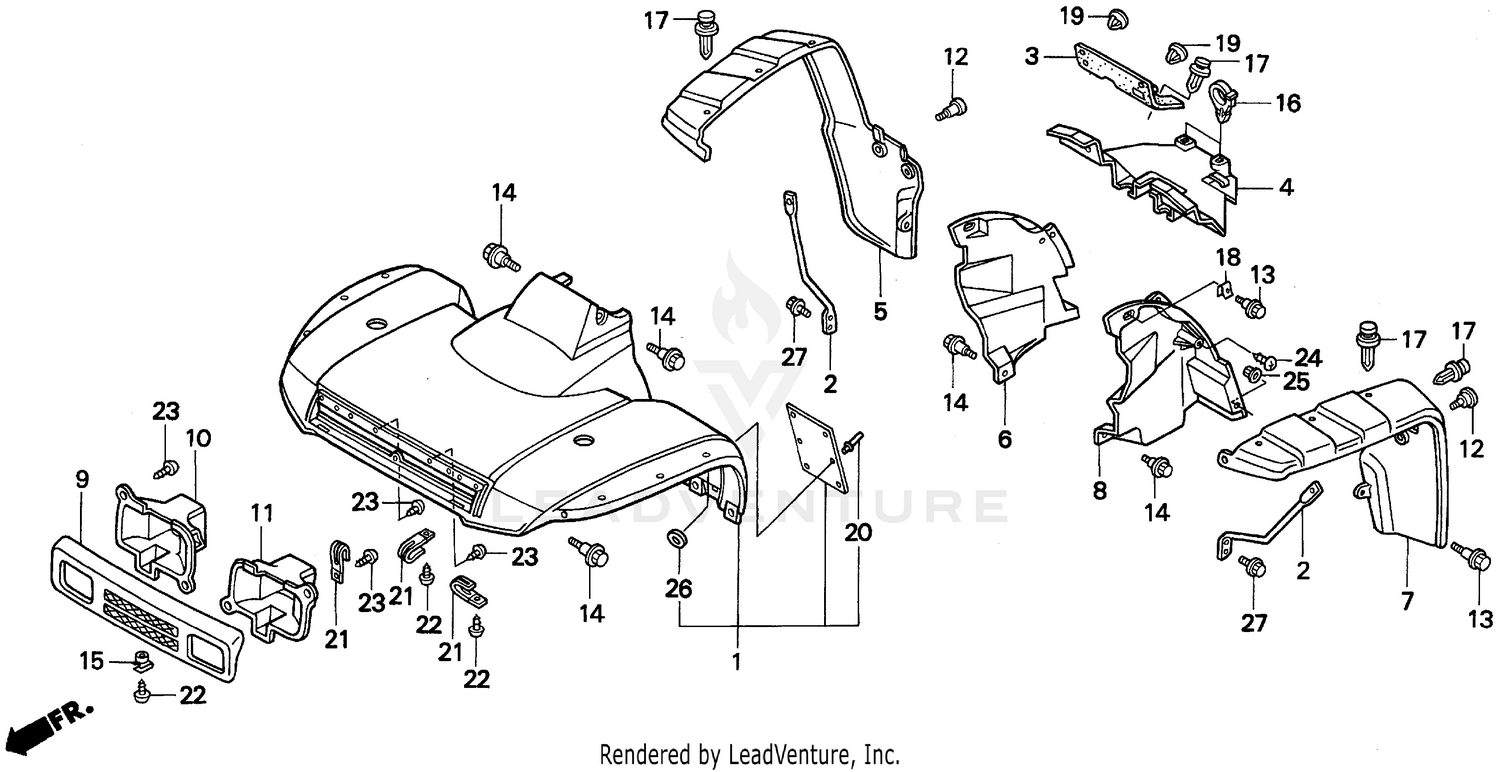

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FR. *G152* (ADVENTURE GREEN)
61100-HM5-A10ZA
|
$167.60 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FR. *R232* (PATRIOT RED)
61100-HM5-A10ZC
|
$167.60 | ||
|
Unavailable |
|||
|
#1
FENDER, FR. *YR176* (HARVEST BEIGE)
61100-HM5-A10ZD
|
$167.60 | ||
|
Unavailable |
|||
|
#2
STAY, FR. FENDER SUPPORT
61101-HC5-970
|
$54.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, SNORKEL (LOWER) (NOT AVAILABLE)
61720-HC5-970
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SNORKEL (LOWER) (NOT AVAILABLE)
61725-HC5-970
|
$5.14 | ||
|
Unavailable |
|||
|
#5
SPLASH GUARD, R. FR. *NH1* (BLACK)
61861-HM5-850ZA
|
$165.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER, R. FR. (INNER)
61862-HC5-970
|
$48.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPLASH GUARD, L. FR. *NH1* (BLACK)
61866-HM5-850ZA
|
$165.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER, L. FR. (INNER)
61867-HC5-970
|
$46.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRILLE, FR. *G152* (ADVENTURE GREEN)
66300-HM4-730ZA
|
$139.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRILLE, FR. *G152* (ADVENTURE GREEN)
66300-HM4-A10ZA
Superseded by 66300-HM4-730ZA
|
$139.43 | ||
|
Unavailable |
|||
|
#9
GRILLE, FR. *R232* (PATRIOT RED)
66300-HM4-A10ZC
|
$96.15 | ||
|
Unavailable |
|||
|
#9
GRILLE, FR. *YR176* (HARVEST BEIGE) (NOT AVAILABLE)
66300-HM4-A10ZD
|
$64.35 | ||
|
Unavailable |
|||
|
#10
COVER, R. HEADLIGHT
66301-HC4-000
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, L. HEADLIGHT
66302-HC4-000
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SPLASH GUARD
90101-HB3-004
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6MM)
90111-147-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPRING (4MM)
90302-SA4-003
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, WIRE HARNESS (SOURCE: VINTAGE PARTS INC.)
90628-HM5-850
|
$6.80 | ||
|
Unavailable |
|||
|
#17
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, CLIP (6MM)
90673-SB2-000
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, COVER (LOWER)
90685-SA5-003
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
RIVET, POP (3.2)
90841-HF1-910
|
$0.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP (4X60)
91410-KT7-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING (4X12)
93903-24320
|
$0.95 | ||
|
Unavailable |
|||
|
#23
SCREW, TAPPING (5X16)
93903-25320
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW, TAPPING (6X16)
93904-26210
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PLAIN (3MM)
94103-03800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X14)
95701-06014-07
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
