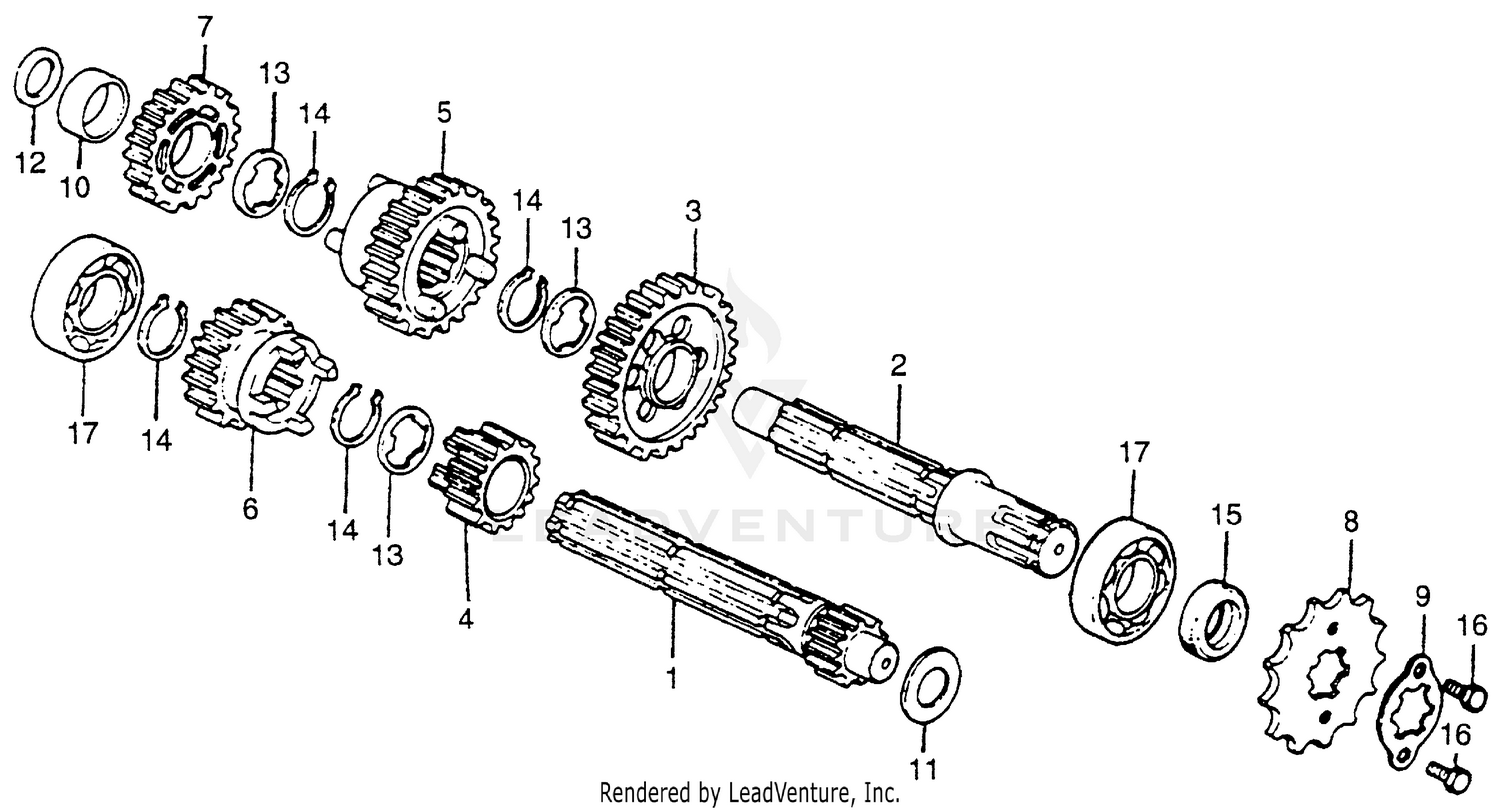

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (11T)
23211-041-020
|
$88.98 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-041-040
Superseded by 23221-041-050
|
$71.28 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-041-050
|
$71.28 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)
23421-086-010
|
$34.79 | ||
|
Unavailable |
|||
|
#4
GEAR, MAINSHAFT SECOND (18T)
23431-040-070
|
$46.22 | ||
|
Unavailable |
|||
|
#5
GEAR, COUNTERSHAFT SECOND (31T)
23441-086-010
|
$72.14 | ||
|
Unavailable |
|||
|
#6
GEAR, MAINSHAFT THIRD (21T)
23471-041-050
|
$44.58 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT THIRD (25T)
23481-086-010
|
$39.94 | ||
|
Unavailable |
|||
|
#8
SPROCKET, DRIVE (15T)
23800-098-000
|
$21.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DRIVE SPROCKET FIXING
23802-040-000
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, GEAR
23911-041-020
|
$4.76 | ||
|
Unavailable |
|||
|
#11
WASHER, THRUST (14MM)
90451-121-000
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, THRUST (13.5MM)
90451-141-000
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPLINE (17MM)
90461-035-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP (OUTER) (17MM)
90601-001-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (17X29X5) (NOK)
91203-035-005
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X8)
92000-06008
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#17
BEARING, RADIAL BALL (6203)
96100-62030
Superseded by 96100-62030-00
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, RADIAL BALL (6203)
96100-62030-00
|
$10.55 | ||
|
Unavailable |
|||
