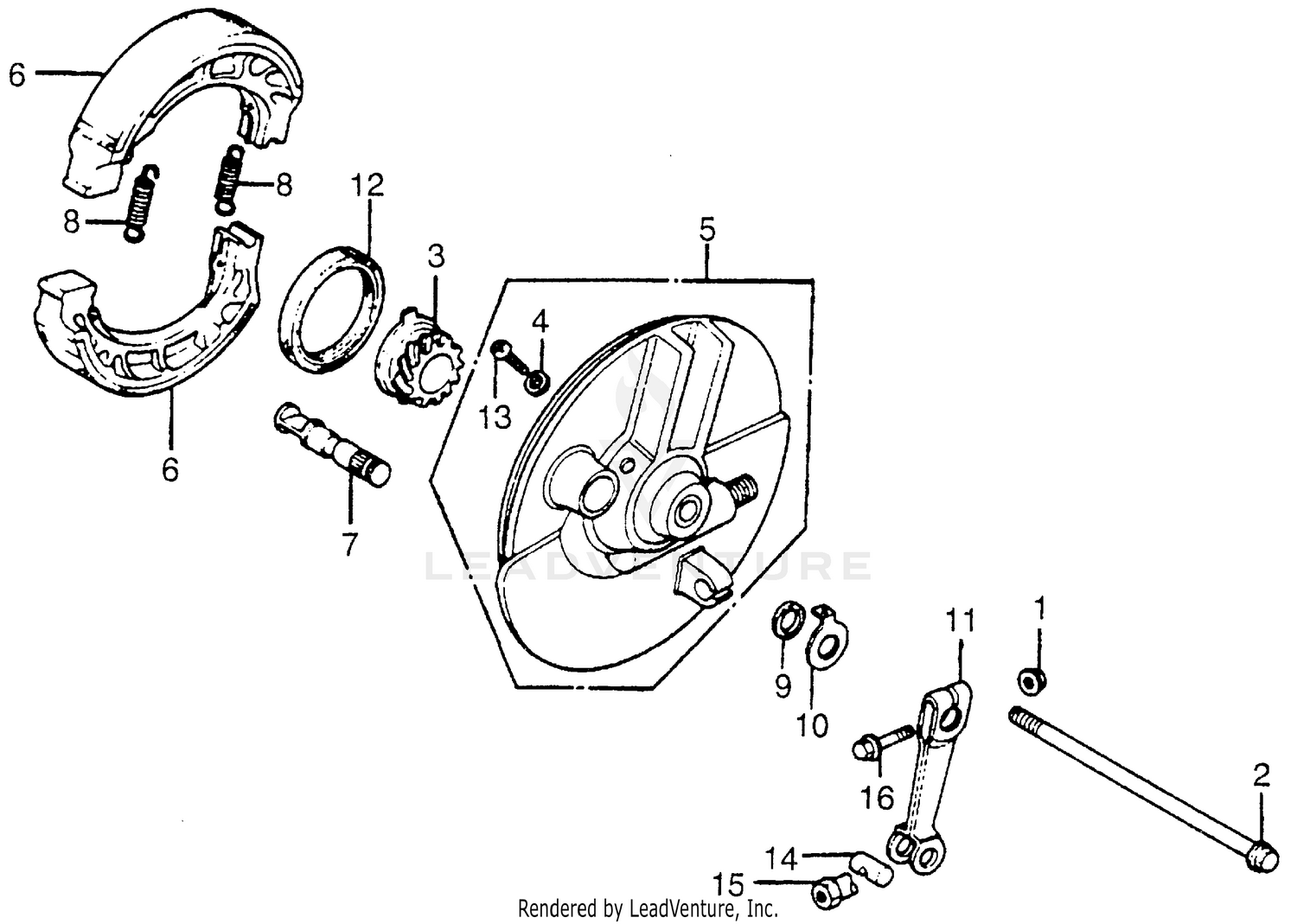

Front Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, BRAKE (JB)
06450-GAG-003
Superseded by 06450-178-932
|
$30.16 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE SET, BRAKE (JB)
06450-096-405
Superseded by 06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE (JB)
06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE (JB)
451A2-096-305
Superseded by 06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#1
NUT, FLANGE (6MM)
18362-720-000
Superseded by 94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
Unavailable |
|||
|
#2
AXLE, RR. WHEEL
42301-102-010
Superseded by 42301-102-020
|
$20.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, RR. WHEEL
42301-102-020
|
$20.90 | ||
|
Unavailable |
|||
|
#3
GEAR, SPEEDOMETER
44804-098-950
|
$23.65 | ||
|
Unavailable |
|||
|
#5
PANEL, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)
45010-126-720ZA
|
$72.98 | ||
|
Unavailable |
|||
|
#6
SHOE SET, BRAKE (JB)
06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#6
SHOE SET, BRAKE (JB)
45120-GAG-003
Superseded by 06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#6
SHOE SET, BRAKE (JB)
45120-096-651
Superseded by 06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#6
SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)
45120-096-652
|
$6.51 | ||
|
Unavailable |
|||
|
#7
CAM, FR. BRAKE
45131-400-020
|
$20.62 | ||
|
Unavailable |
|||
|
#8
SPRING, BRAKE SHOE
45133-028-000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL, BRAKE CAM
45134-250-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
INDICATOR, FR. BRAKE (NOT AVAILABLE)
45145-098-860
|
$4.05 | ||
|
Unavailable |
|||
|
#11
ARM, FR. BRAKE (NOT AVAILABLE)
45410-098-860
|
$7.26 | ||
|
Unavailable |
|||
|
#12
OIL SEAL (47X58X7)
91251-030-003
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (47X58X7)
91251-030-005
Superseded by 91251-030-003
|
$7.75 | ||
|
Unavailable |
|||
|
#14
JOINT B, BRAKE ARM
95015-32000
Superseded by 95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
JOINT, BRAKE ARM
95015-32001
|
$1.07 | ||
|
Unavailable |
|||
|
#15
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X28)
95700-06028-00
|
$1.90 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
