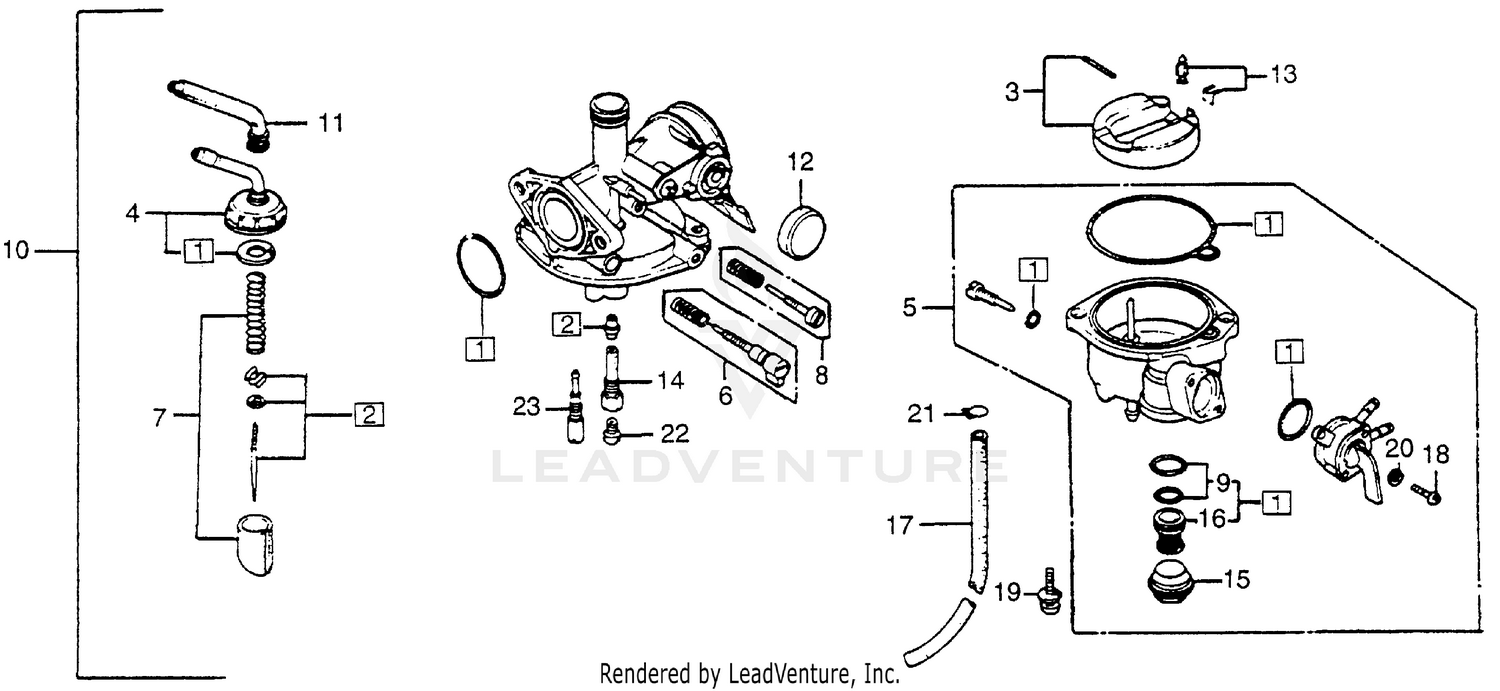

Carburetor 82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-GB4-003
Superseded by 16010-141-305
|
$54.02 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-GB4-013
Superseded by 16010-141-305
|
$54.02 | ||
|
Unavailable |
|||
|
#1
GASKET SET
16010-141-305
|
$54.02 | ||
|
Unavailable |
|||
|
#2
NEEDLE SET, JET (NOT AVAILABLE)
16012-126-671
|
$22.29 | ||
|
Unavailable |
|||
|
#3
FLOAT SET
16013-883-005
|
$35.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
TOP SET
16014-GB0-831
Superseded by 16014-098-980
|
$21.36 | ||
|
Unavailable |
|||
|
#4
TOP SET
16014-GB2-003
Superseded by 16014-098-980
|
$21.36 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-459-751
|
$88.92 | ||
|
Unavailable |
|||
|
#6
SCREW SET A (NOT AVAILABLE)
16016-459-751
|
$9.35 | ||
|
Unavailable |
|||
|
#7
VALVE SET, THROTTLE (NOT AVAILABLE)
16022-098-770
|
$18.53 | ||
|
Unavailable |
|||
|
#8
SCREW SET B
16028-GC8-004
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET B
16028-187-003
Superseded by 16028-GC8-004
|
$19.82 | ||
|
Unavailable |
|||
|
#9
GASKET B SET
16040-GB0-911
|
$15.59 | ||
|
Unavailable |
|||
|
#10
CARBURETOR ASSY. (NOT AVAILABLE)
16100-126-751
|
$128.32 | ||
|
Unavailable |
|||
|
#11
CAP, CABLE SEALING
16118-GB4-003
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, CHOKE LEVER DUST
16148-141-881
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, CHOKE LEVER DUST
16148-943-003
Superseded by 16148-141-881
|
$5.98 | ||
|
Unavailable |
|||
|
#13
VALVE, FLOAT
16155-883-005
|
$24.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
HOLDER, NEEDLE JET (NOT AVAILABLE)
16165-098-770
|
$14.49 | ||
|
Unavailable |
|||
|
#15
CUP, FUEL STRAINER
16175-GB0-911
|
$25.35 | ||
|
Unavailable |
|||
|
#16
CUP, FILTER
16176-GB0-911
|
$22.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, FUEL
16199-159-701
Superseded by 16199-KG4-405
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (3X12)
93500-03012-0H
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (4X14)
93892-04014-08
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, SPRING (3MM)
94111-03000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, TUBE (B6.5)
95002-02650
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#52)
99101-116-0520
|
$6.67 | ||
|
Unavailable |
|||
|
#22
JET, MAIN (#55)
99101-116-0550
|
$10.27 | ||
|
Unavailable |
|||
|
#23
JET, SLOW (#38)
99103-126-0380
Superseded by 99103-141-0380
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
