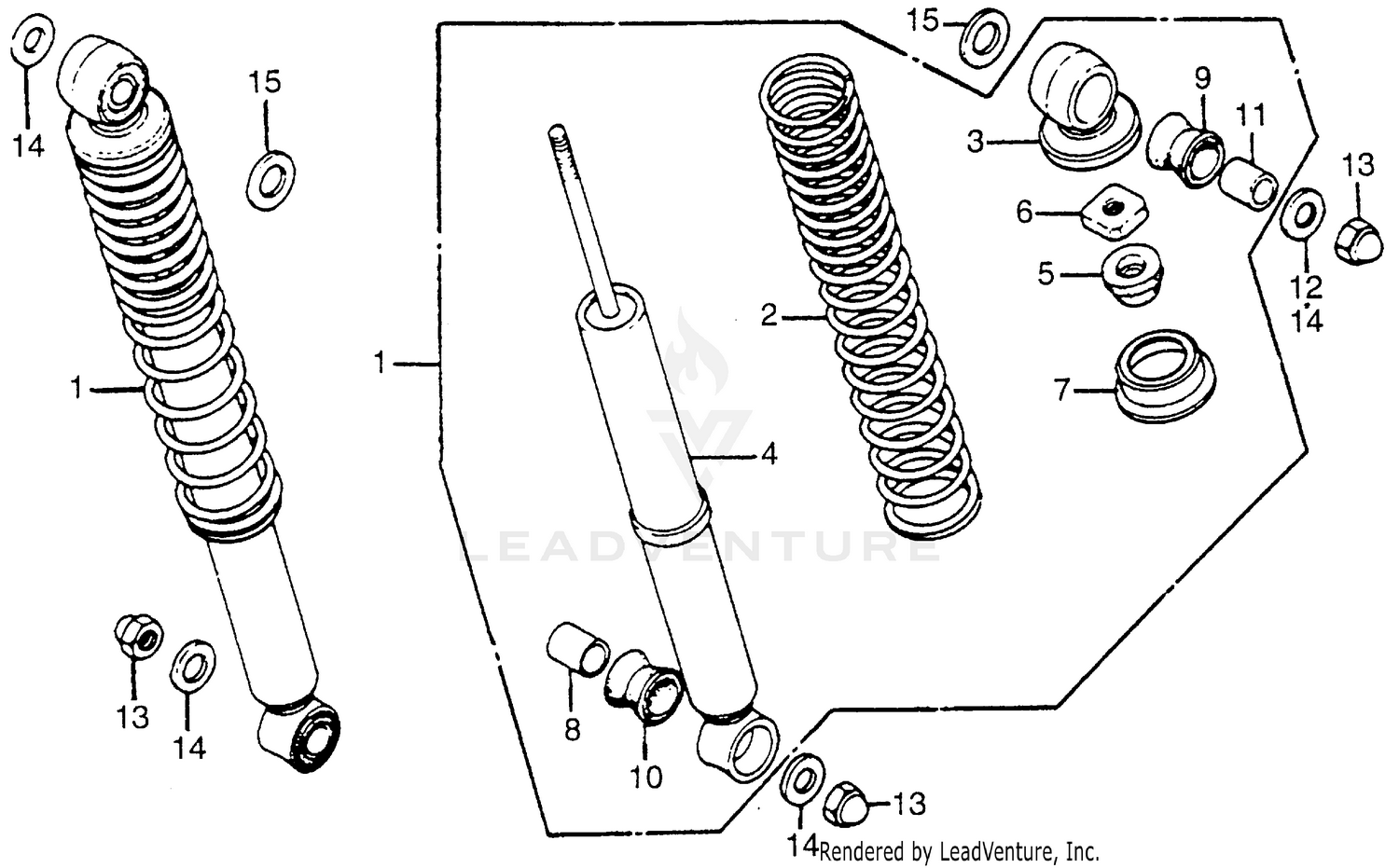

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ASSY., RR.
52400-126-405
Superseded by 52400-126-773
|
$115.41 | ||
|
Unavailable |
|||
|
#1
SHOCK ASSY., RR.
52400-126-772
Superseded by 52400-126-773
|
$115.41 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)
52401-126-770
|
$18.05 | ||
|
Unavailable |
|||
|
#3
METAL, RR. SHOCK ABSORBER (UPPER)
52403-126-771
|
$26.96 | ||
|
Unavailable |
|||
|
#3
METAL, RR. SHOCK ABSORBER (UPPER)
52410-125-771
Superseded by 52403-126-771
|
$26.96 | ||
|
Unavailable |
|||
|
#4
SHOCK ASSY., RR.
52400-126-405
Superseded by 52400-126-773
|
$115.41 | ||
|
Unavailable |
|||
|
#4
SHOCK ASSY., RR.
52400-126-772
Superseded by 52400-126-773
|
$115.41 | ||
|
Unavailable |
|||
|
#4
SHOCK ASSY., RR.
52430-126-772
Superseded by 52400-126-773
|
$115.41 | ||
|
Unavailable |
|||
|
#5
RUBBER, RR. SHOCK ABSORBER STOPPER (NOT AVAILABLE)
52475-125-771
|
$3.10 | ||
|
Unavailable |
|||
|
#6
NUT, RR. SHOCK ABSORBER LOCK (NOT AVAILABLE)
52482-125-771
|
$3.63 | ||
|
Unavailable |
|||
|
#7
SEAT, RR. SHOCK ABSORBER SPRING (SHOWA)
52485-125-771
Superseded by 52485-131-003
|
$4.96 | ||
|
Unavailable |
|||
|
#7
SEAT, RR. SHOCK ABSORBER SPRING (SHOWA)
52485-131-003
|
$4.96 | ||
|
Unavailable |
|||
|
#8
COLLAR, RUBBER BUSH (NOT AVAILABLE)
52486-124-832
|
$3.81 | ||
|
Unavailable |
|||
|
#9
BUSH, RUBBER (UPPER)
52486-125-771
Superseded by 52495-126-771
|
$4.32 | ||
|
Unavailable |
|||
|
#9
BUSH, RUBBER (UPPER)
52495-126-771
|
$4.32 | ||
|
Unavailable |
|||
|
#10
BUSH, RUBBER (NOT AVAILABLE)
52487-125-771
|
$4.27 | ||
|
Unavailable |
|||
|
#11
COLLAR, RR. SHOCK ABSORBER RUBBER BUSH (UPPER) (NOT AVAILABLE)
52488-125-771
|
$4.05 | ||
|
Unavailable |
|||
|
#12
WASHER (10.5MM)
90529-126-770
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CAP (10MM)
94021-10000-0S
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (10MM)
94101-10000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (12MM)
94101-12000
|
$1.28 | ||
|
Unavailable |
|||
