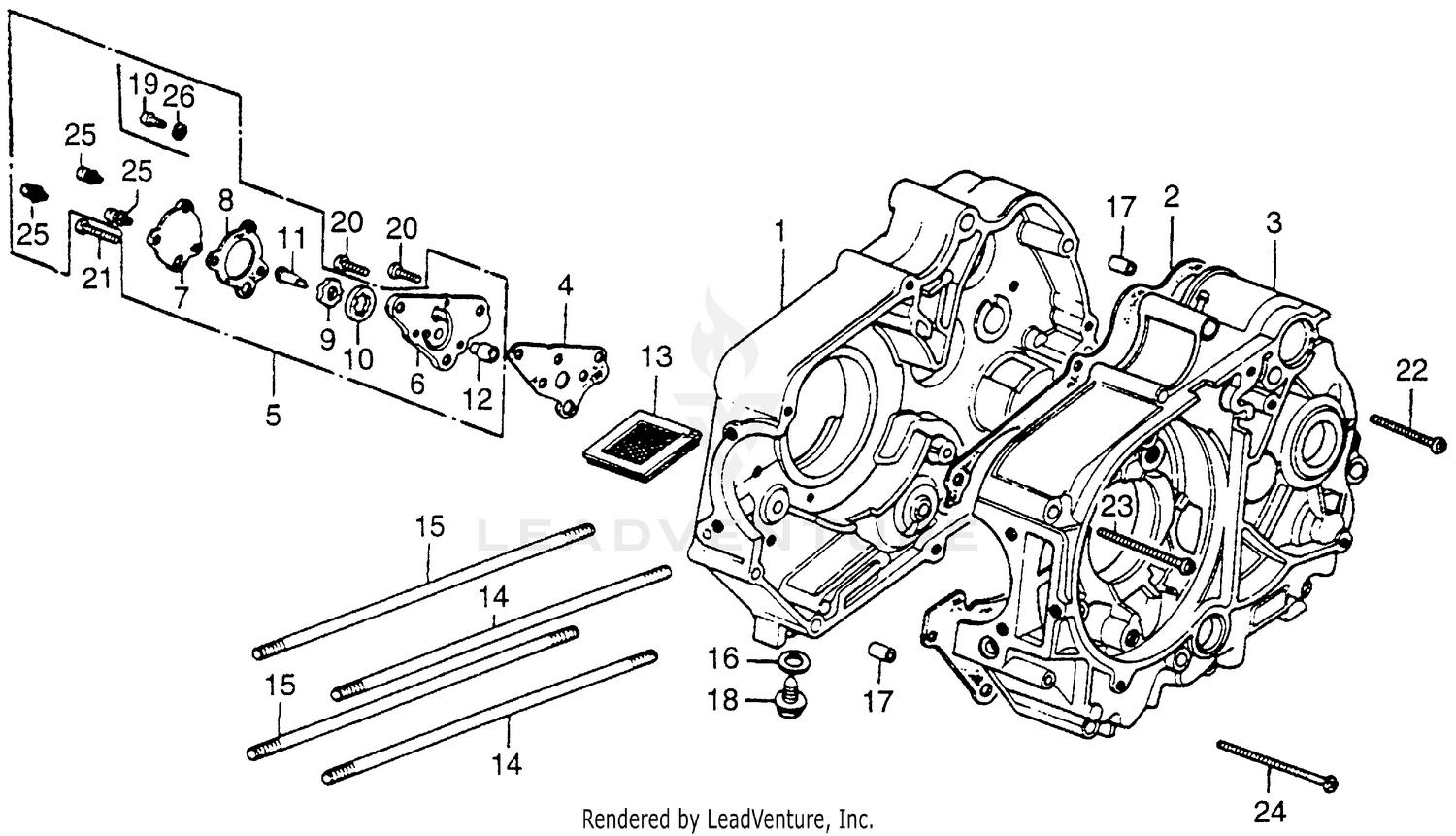

Crankcase + Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-GB0-910
Superseded by 11100-GB0-911
|
$242.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-GB0-306
Superseded by 11191-GB0-912
|
$9.73 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-GB0-910
Superseded by 11191-GB0-912
|
$9.73 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-GB0-911
Superseded by 11191-GB0-912
|
$9.73 | ||
|
Unavailable |
|||
|
#3
CRANKCASE, L.
11200-125-010
|
$162.66 | ||
|
Unavailable |
|||
|
#4
GASKET, OIL PUMP BODY
15119-178-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
PUMP ASSY., OIL
15100-178-000
|
$51.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
BODY, OIL PUMP (NOT AVAILABLE)
15311-178-000
|
$24.44 | ||
|
Unavailable |
|||
|
#7
COVER, OIL PUMP (NOT AVAILABLE)
15321-035-003
|
$0.88 | ||
|
Unavailable |
|||
|
#8
GASKET, OIL PUMP COVER
15329-035-003
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROTOR, OIL PUMP (INNER)
15331-107-000
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROTOR, OIL PUMP (OUTER)
15332-107-000
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVESHAFT, OIL PUMP (NOT AVAILABLE)
15382-178-000
|
$12.41 | ||
|
Unavailable |
|||
|
#12
PIN, OIL PUMP KNOCK (NOT AVAILABLE)
15383-178-300
|
$4.80 | ||
|
Unavailable |
|||
|
#13
SCREEN, OIL FILTER
15421-035-010
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT A, CYLINDER STUD
90031-035-010
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT B, CYLINDER STUD
90032-035-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, DRAIN PLUG (12MM)
90407-231-000
Superseded by 94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET, DRAIN VALVE (12.5X20)
90407-259-000
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#17
PIN A, DOWEL (10X14)
90704-035-000
Superseded by 94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#17
PIN A, DOWEL (10X14)
94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#18
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, PAN (6X16)
93500-06016
Superseded by 93500-06016-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (6X16)
93500-06016-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN (6X22)
93500-06022
Superseded by 93500-06022-0A
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X22)
93500-06022-0A
|
$1.28 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X50)
96000-06050-00
Superseded by 96001-06050-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X50)
96001-06050-00
|
$2.27 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X60)
96000-06060-00
Superseded by 96001-06060-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X60)
96001-06060-00
|
$2.27 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X65)
96000-06065-00
Superseded by 96001-06065-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X65)
96001-06065-00
|
$2.65 | ||
|
Unavailable |
|||
|
#25
SCREW-WASHER (5X10)
93892-05010-00
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
