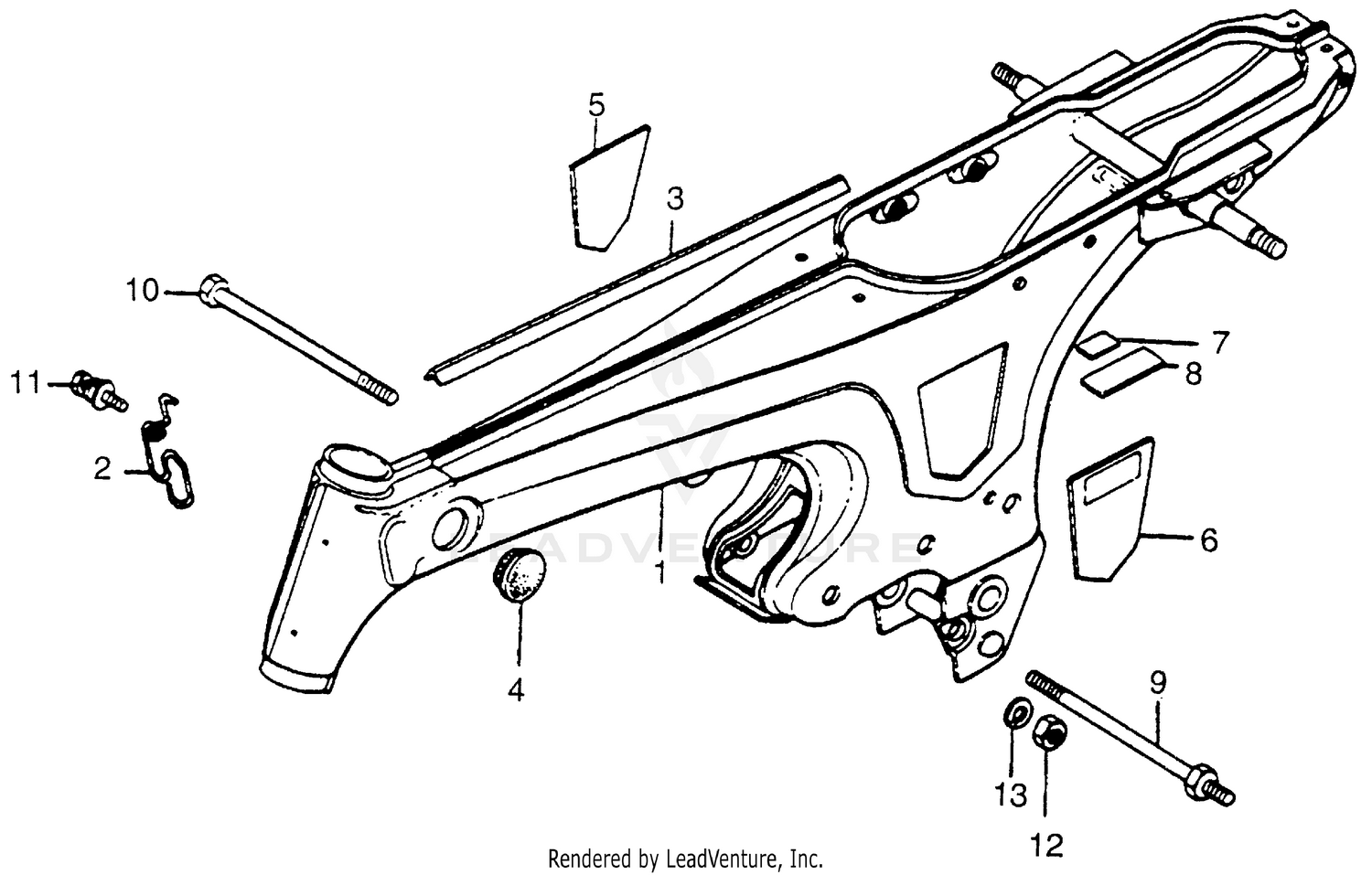

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME *R23* (TAHITIAN RED)
50100-126-960ZA
|
$444.42 | ||
|
Unavailable |
|||
|
#2
CLIP, WIRE HARNESS (NOT AVAILABLE)
50191-125-770
|
$6.24 | ||
|
Unavailable |
|||
|
#3
MOLDING, FRAME (NOT AVAILABLE)
50305-098-860
|
$9.53 | ||
|
Unavailable |
|||
|
#4
GROMMET, DRAIN HOLE
81329-567-000
Superseded by 81329-567-020
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET, DRAIN HOLE
81329-567-020
|
$5.38 | ||
|
Unavailable |
|||
|
#5
EMBLEM, R. FRAME SIDE (NOT AVAILABLE)
87122-126-960
|
$5.26 | ||
|
Unavailable |
|||
|
#6
EMBLEM, L. FRAME SIDE (NOT AVAILABLE)
87123-126-960
|
$5.19 | ||
|
Unavailable |
|||
|
#7
LABEL, OPERATOR WARNING *NH1* (BLACK)
87510-147-670ZA
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)
87560-174-770ZA
|
$3.30 | ||
|
Unavailable |
|||
|
#9
BOLT A, RR. ENGINE SUPPORT
90112-003-000
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. (8X115) (NOT AVAILABLE)
92200-08115-0A
|
$1.85 | ||
|
Unavailable |
|||
|
#11
SCREW-WASHER (6X16) (NOT AVAILABLE)
93893-06016-00
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEX. (8MM)
94030-08000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
