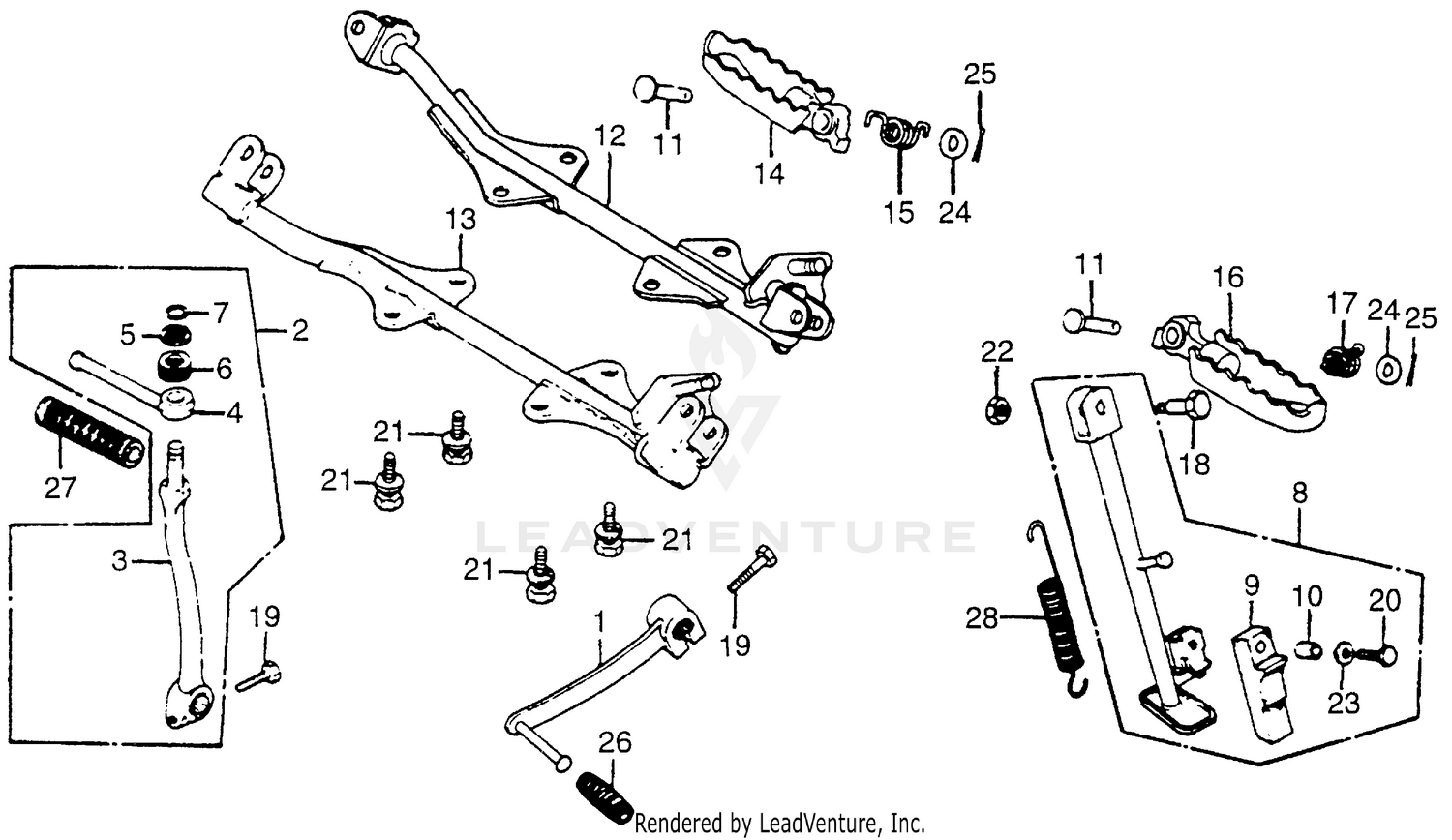

Gearshift Pedal + Footpegs + Side Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-098-970
|
$49.68 | ||
|
Unavailable |
|||
|
#1
PEDAL, GEARSHIFT
24701-098-860
Superseded by 24700-098-970
|
$49.68 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER
28300-126-770
|
$72.14 | ||
|
Unavailable |
|||
|
#3
ARM, KICK STARTER
28301-126-770
|
$52.53 | ||
|
Unavailable |
|||
|
#4
PEDAL, KICK STARTER
28302-126-770
|
$21.18 | ||
|
Unavailable |
|||
|
#5
WASHER, KICK STARTER KNUCKLE
28303-001-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, KICK STARTER KNUCKLE
28322-001-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, KICK STARTER KNUCKLE
28324-001-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR ASSY., SIDE STAND (NOT AVAILABLE)
50540-126-870
|
$54.13 | ||
|
Unavailable |
|||
|
#9
RUBBER, STAND
50548-324-760
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, STAND RUBBER SETTING
50549-356-700
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, STEP BAR JOINT
50603-033-000
Superseded by 50603-033-010
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, STEP BAR JOINT
50603-033-010
|
$4.02 | ||
|
Unavailable |
|||
|
#12
BAR, FOOTPEG (NOT AVAILABLE)
50610-126-870
|
$48.70 | ||
|
Unavailable |
|||
|
#14
ARM, R. STEP
50616-181-770
|
$42.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, STEP RETURN
50617-181-770
|
$8.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
STEP, L.
50642-181-770
|
$42.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, L. STEP RETURN (NOT AVAILABLE)
50644-283-000
|
$4.42 | ||
|
Unavailable |
|||
|
#18
BOLT, SIDE STAND PIVOT
90108-223-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X28)
92000-06028
Superseded by 92101-06028-0A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. (6X28)
92101-06028-0A
|
$1.33 | ||
|
Unavailable |
|||
|
#21
BOLT-WASHER (8X20)
93402-08020-00
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT-WASHER (8X20)
93492-08020-00
Superseded by 93402-08020-00
|
$2.02 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (10MM)
94002-10000-0S
|
$4.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#24
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#26
RUBBER, SHIFT PEDAL
95011-40000
|
$1.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
RUBBER A, KICK STARTER
95011-51000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING D, SIDE STAND
95014-72402
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
