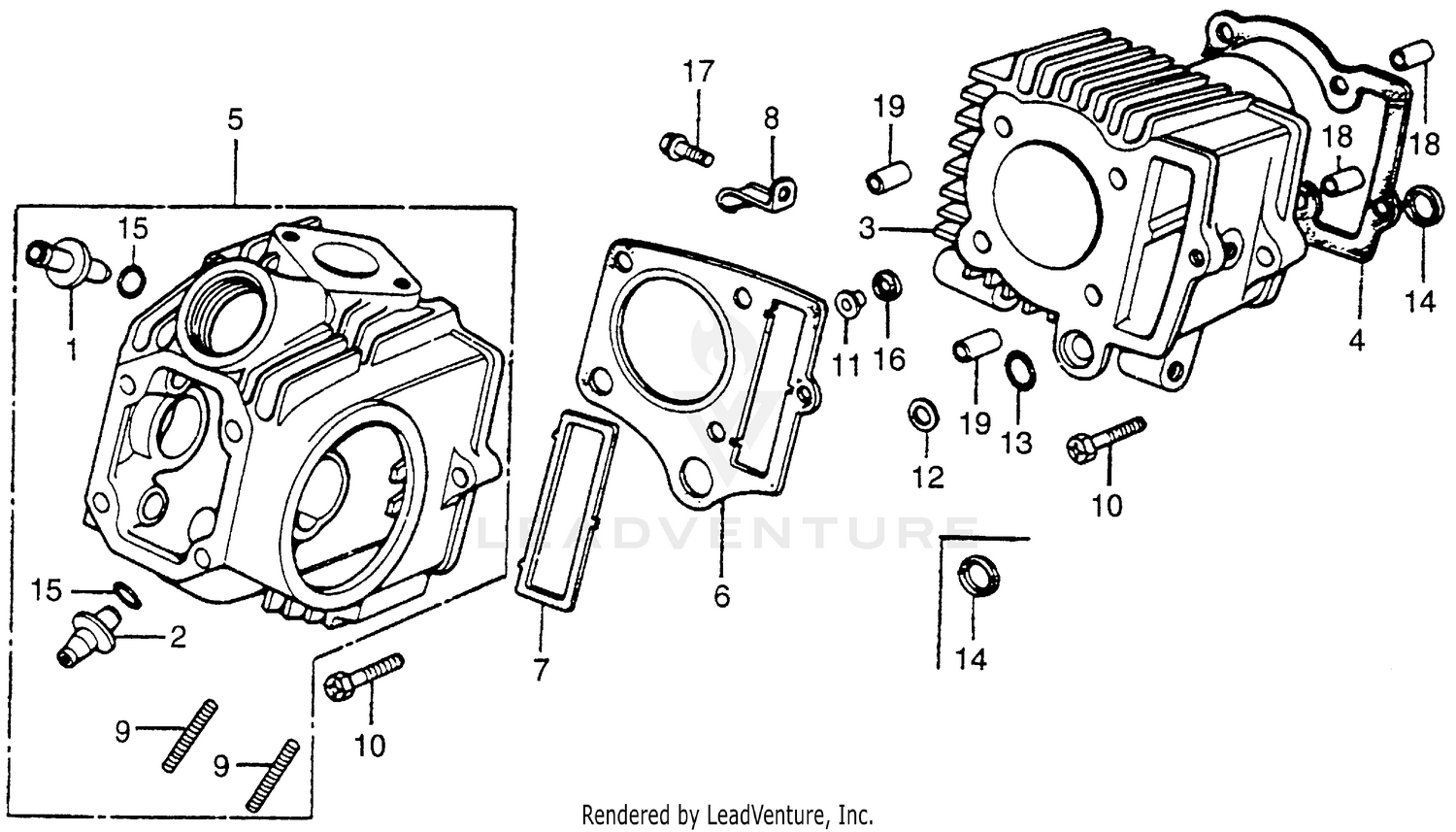

Cylinder Head + Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, VALVE
12021-035-811
Superseded by 12023-035-405
|
$8.79 | ||
|
Unavailable |
|||
|
#1
GUIDE, VALVE
12023-035-405
|
$8.79 | ||
|
Unavailable |
|||
|
#2
GUIDE, EX. VALVE
12023-051-300
Superseded by 12023-051-320
|
$11.46 | ||
|
Unavailable |
|||
|
#2
GUIDE, EX. VALVE
12023-051-320
|
$11.46 | ||
|
Unavailable |
|||
|
#3
CYLINDER
12101-GB0-910
|
$243.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER
12191-GB2-004
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER
12191-GB2-306
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER
12191-GW8-681
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#5
CYLINDER HEAD (NOT AVAILABLE)
12200-GB1-305
|
$159.12 | ||
|
Unavailable |
|||
|
#5
CYLINDER HEAD (NOT AVAILABLE)
12200-GB1-900
Superseded by 12200-GB1-305
|
$159.12 | ||
|
Unavailable |
|||
|
#6
GASKET, CYLINDER HEAD
12251-GB0-306
|
$11.52 | ||
|
Unavailable |
|||
|
#6
GASKET, CYLINDER HEAD
12251-GB0-911
Superseded by 12251-GB0-306
|
$11.52 | ||
|
Unavailable |
|||
|
#7
SEAL, CAM CHAIN CHAMBER
12255-GB0-911
|
$18.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, IGNITION CABLE
32906-061-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD (6X32)
90033-041-010
Superseded by 90033-041-020
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD (6X32)
90033-041-020
|
$2.56 | ||
|
Unavailable |
|||
|
#10
BOLT (6MM)
90082-035-010
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR (9.5MM)
90602-GB0-910
Superseded by 90602-GB0-911
|
$2.10 | ||
|
Unavailable |
|||
|
#11
COLLAR (9.5MM)
90602-GB0-911
|
$2.10 | ||
|
Unavailable |
|||
|
#12
COLLAR (14.8MM)
90603-GB0-910
Superseded by 90603-GB0-911
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR (14.8MM)
90603-GB0-911
|
$3.89 | ||
|
Unavailable |
|||
|
#13
O-RING (14.5MM)
91301-GB0-911
Superseded by 91301-GF6-003
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (14.5MM)
91301-GF6-003
|
$8.40 | ||
|
Unavailable |
|||
|
#14
GASKET, RUBBER (16MM)
91303-035-000
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING (9.5X1.6)
91306-028-000
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, RUBBER (9MM)
91306-141-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X20)
96000-06020-00
Superseded by 96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Unavailable |
|||
|
#18
PIN A, DOWEL (8X12)
94301-08120
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN A, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
