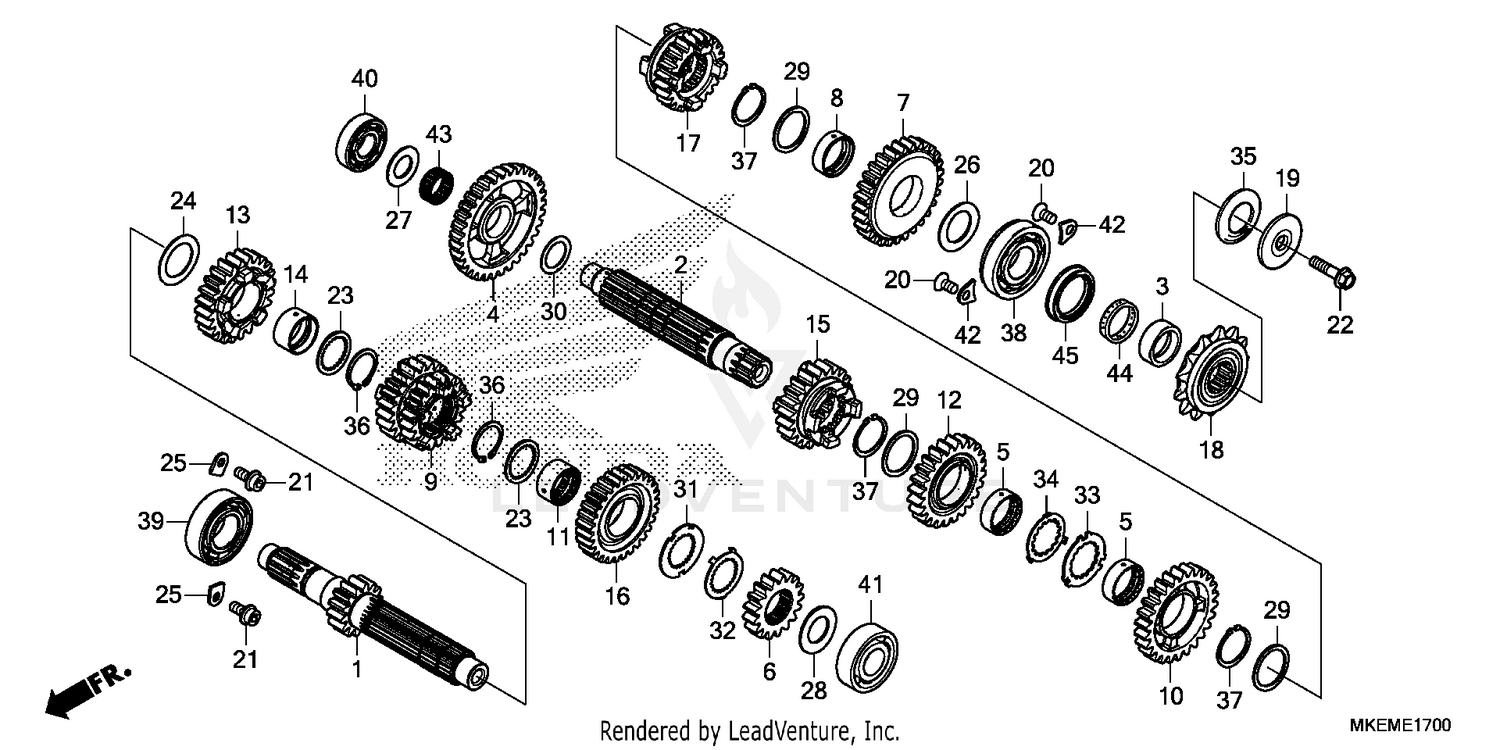

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (14T)
23210-MKE-A50
|
$187.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-MKE-A50
|
$174.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, COUNTERSHAFT
23225-MEN-730
|
$18.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (33T)
23421-MKE-A50
|
$125.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, SPLINE (28X10)
23422-MV1-000
|
$22.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT SECOND (17T)
23431-MKE-A50
|
$64.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (29T)
23441-MKE-A50
|
$119.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (28MM)
23442-MM4-000
|
$26.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT THIRD & FOURTH (20T/22T)
23451-MKE-A50
|
$155.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT THIRD (26T)
23461-MKE-A50
|
$119.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SPLINE (26X14.3)
23462-MKE-A00
|
$18.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (24T)
23481-MKE-A50
|
$118.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (24T)
23491-MKE-A50
|
$117.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (26X29X15)
23492-MKE-A50
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (22T)
23501-MKE-A50
|
$131.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, MAINSHAFT SIXTH (29T)
23511-MKE-A50
|
$121.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, COUNTERSHAFT SIXTH (23T)
23521-MKE-A50
|
$131.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (13T)
23801-MKE-A50
|
$57.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, DRIVE SPROCKET
23802-KSC-670
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, SPECIAL FLAT (6X12)
90003-KRN-670
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE SOCKET (6X14)
90071-MF5-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, UBS (8X33)
90112-413-000
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPLINE (26MM)
90402-HP6-A00
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (26MM) (NOT AVAILABLE)
90407-415-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, BEARING HOLDER
90441-KRM-840
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, THRUST (24.1X37X1.5)
90445-MEN-A70
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (17.1X30X1.5)
90446-MKE-A00
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, THRUST (20MM)
90451-MEW-D40
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPLINE (28X34X1.5)
90452-MR7-000
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, THRUST (20MM) (SOURCE: VINTAGE PARTS INC.)
90453-360-000
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPLINE (26MM)
90461-MKE-A00
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LOCK (26MM)
90462-MKE-A00
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPLINE (28MM)
90463-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK (28MM)
90464-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING (24MM)
90501-KSC-670
|
$5.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CIRCLIP, SPECIAL (OUTER) (26MM)
90602-MKE-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP (28MM)
90603-MN4-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (24X56X14) (NTN)
91001-MEN-A71
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING, RADIAL BALL SPECIAL (6205U)
91003-MKE-A51
|
$30.04 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING, RADIAL BALL (17X40X11)
91006-MKE-A51
|
$23.62 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, RADIAL BALL (6204U SPL.) (KOYO)
91011-HN2-004
|
$19.51 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLATE, COUNTERSHAFT BEARING
91012-KA3-710
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, NEEDLE (20X24X9.6)
91023-MKE-A51
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#44
D-RING (23.75MM)
91201-MKE-A71
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#45
OIL SEAL (31X40X7)
91207-MKE-A51
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
