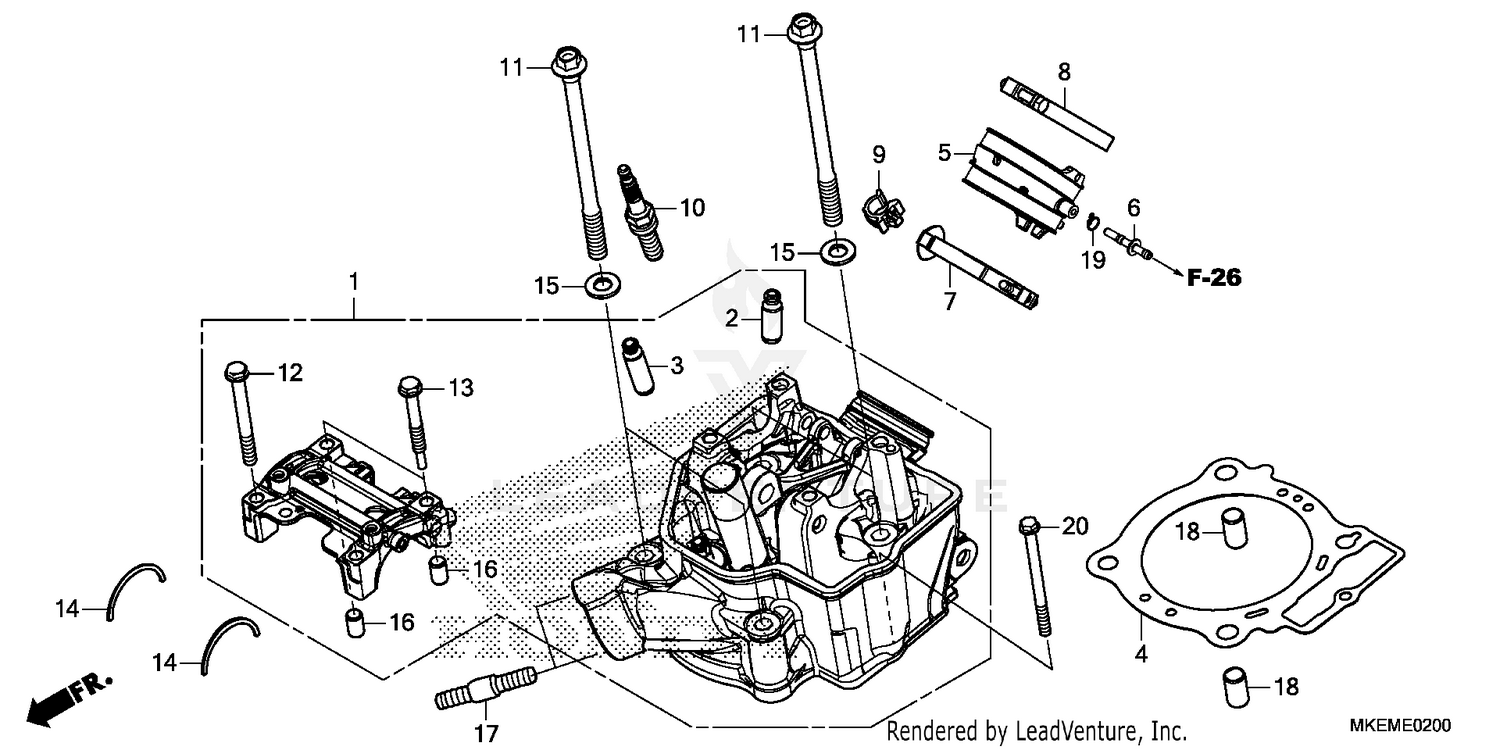

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-MKE-A50
|
$798.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MKE-P00
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE)
12205-MEB-P00
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-MKE-A71
|
$49.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, THROTTLE BODY
16211-MKE-A50
|
$18.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, PURGE
16215-MKE-A50
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16217-MKE-A50
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, INSULATOR
16218-MEN-A50
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, TUBE
16731-ZE2-003
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPARK PLUG (SILMAR9A9S) (NGK)
31909-MEN-A31
|
$22.13 | ||
|
Unavailable |
|||
|
#10
SPARK PLUG (SILMAR10A9S) (NGK)
31910-MEN-A31
|
$22.13 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (10X148)
90001-MKE-A50
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (7X65)
90003-MKE-A00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL (7X45)
90005-MKE-A00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, CAMSHAFT THRUST
90446-KRN-670
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (10MM)
90453-MKE-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (9X14)
90701-MR7-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD (8X22)
92900-08022-0B
|
$2.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, TUBE (B7) CLIP, TUBE (B6.5)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X80) BOLT, FLANGE (6X50)
96001-06080-00
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
