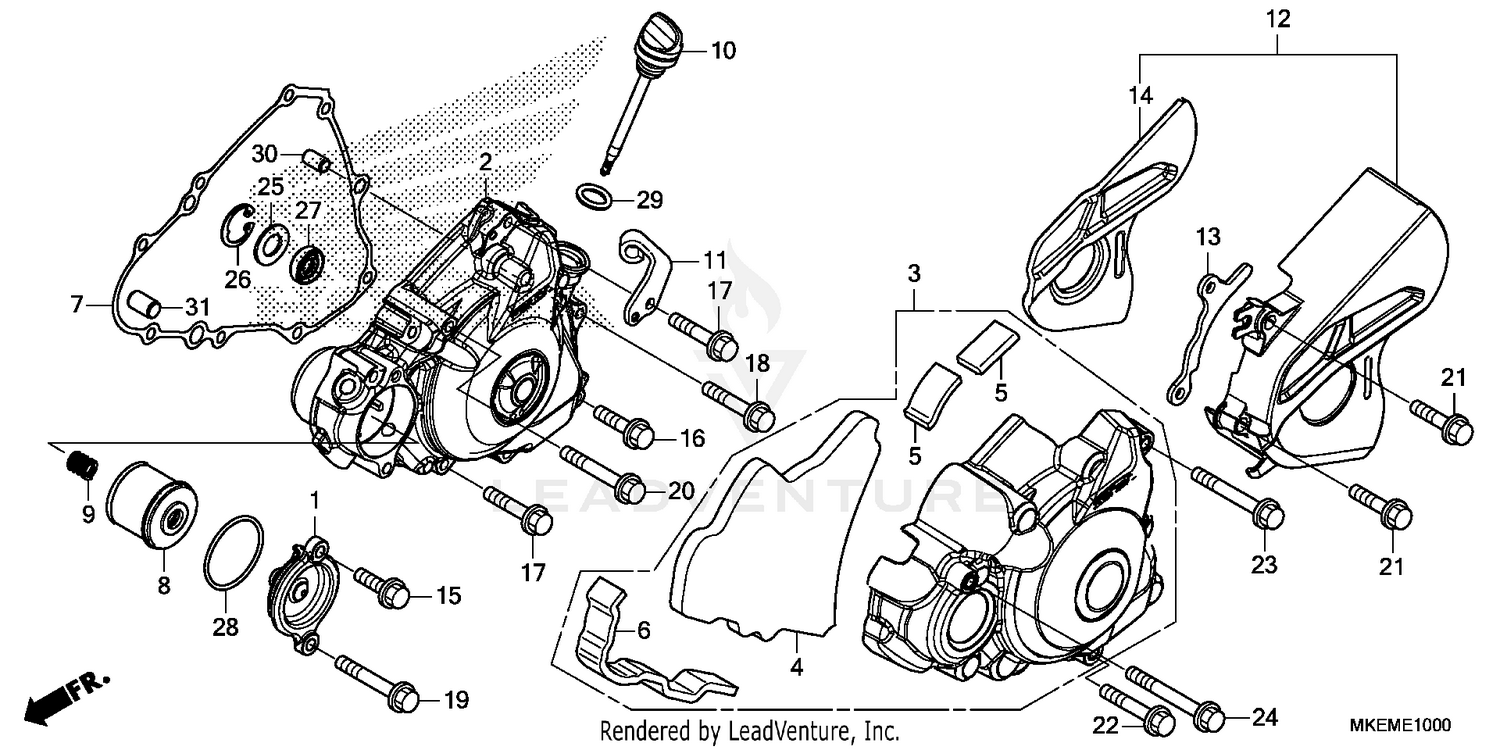

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL FILTER
11333-MKE-A00
|
$50.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. CRANKCASE
11340-MKE-A50
|
$271.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
OVER COVER, L. CRANKCASE
11370-MKE-A50
|
$84.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
MAT A, L. COVER
11376-MKE-A50
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAT B, L. COVER
11377-MKE-A50
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAT C, L. COVER
11378-MKE-A50
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, L. COVER
11395-MKE-A01
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
FILTER, ENGINE OIL
15412-MEN-671
|
$9.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING, OIL FILTER
15414-MEB-670
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
DIPSTICK, OIL
15651-MKE-A50
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
RECEIVER, CLUTCH CABLE
22838-MKE-A00
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, DRIVE SPROCKET
23810-MKE-AD0
|
$70.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, DRIVE CHAIN
23812-MKE-A50
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, DRIVE SPROCKET COVER
23813-MKE-AD0
|
$34.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X18)
90020-GHB-650
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X25)
90020-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X35)
90020-GHB-720
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X40)
90020-GHB-740
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X50)
90020-GHB-760
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X55)
90020-GHB-770
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X30)
90021-GHB-700
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X45)
90025-GHB-750
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X60)
90025-GHB-780
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X65)
90025-GHB-790
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (13X24X1.6)
90401-MEY-670
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP, SPECIAL (INNER) (24MM)
90602-MEB-670
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (10X21X5)
91204-MEN-A31
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (39.8X2.2)
91302-PA9-003
Superseded by 91302-K0G-911
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
D-RING (14X3)
91307-KRN-A41
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
