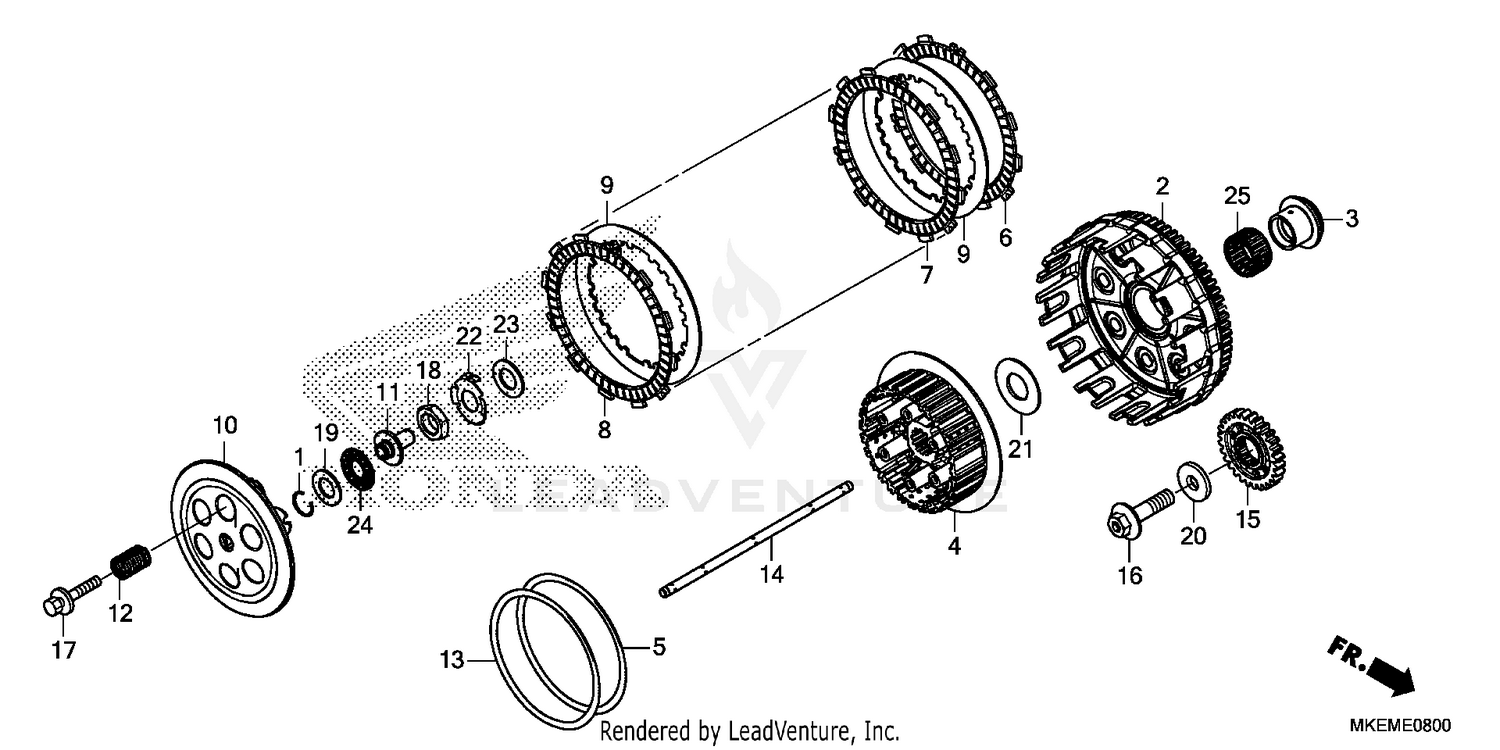

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, PISTON PIN (10MM)
13115-147-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER
22100-MKE-A50
|
$416.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, CLUTCH (OUTER)
22116-MKE-A50
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CENTER, CLUTCH
22120-MKE-A00
|
$116.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, JUDDER SPRING
22125-MBN-670
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-MBN-670
|
$24.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
DISK B, CLUTCH FRICTION
22201-MEN-670
|
$17.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
DISK, CLUTCH FRICTION
22201-MEN-A10
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE B, CLUTCH
22321-MKE-A00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLATE, CLUTCH PRESSURE
22351-MKE-A70
|
$71.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, CLUTCH LIFTER
22352-MKE-A50
|
$52.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, CLUTCH
22401-MKE-A50
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, JUDDER
22402-MBN-670
|
$25.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, CLUTCH LIFTER
22850-MKE-A50
|
$69.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, PRIMARY DRIVE (28T)
23121-MKE-A00
|
$98.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL (12X47)
90013-MEY-670
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X35)
90024-MEN-A70
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT (18MM)
90235-MEN-A30
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (12.1X25X1)
90401-MKE-A70
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (12MM)
90402-KW6-960
|
$6.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER (23X43X3)
90421-MKE-A50
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LOCK (18MM)
90461-KZ3-J10
|
$7.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER (18X32X2)
90501-ML3-910
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, NEEDLE (12MM) (NTN)
91001-147-003
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, NEEDLE (28X33X16.8)
91012-KYJ-901
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
