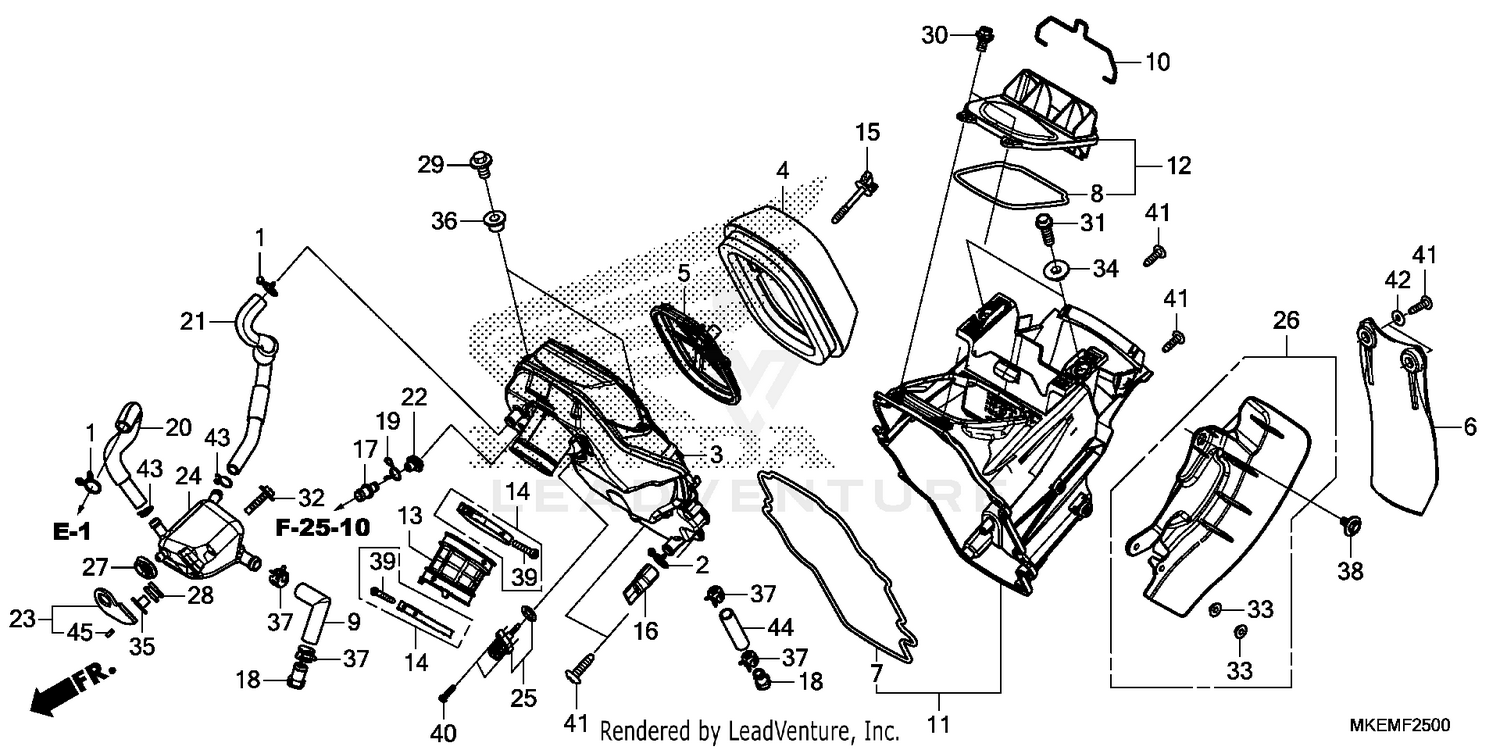

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-551-000
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, BREATHER TUBE
15772-551-000
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, AIR CLEANER
17210-MKE-A51
|
$135.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT, AIR CLEANER
17213-MKE-A50
|
$63.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
BASE ASSY., ELEMENT
17214-MKE-A51
|
$33.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPLASH GUARD
17218-MKE-A00
|
$43.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, AIR CLEANER HOUSING
17226-MKE-A50
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, AIR CLEANER LID
17227-MKE-A50
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, DRAIN
17227-MKJ-D00
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, AIR CLEANER LID
17229-MKE-A50
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE SUB-ASSY., AIR CLEANER (RR)
17233-MKE-A50
|
$109.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
LID SUB-ASSY., AIR CLEANER
17234-MKE-A50
|
$36.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, AIR CLEANER CONNECTING
17253-MKE-A50
|
$29.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (60MM)
17255-MEN-A70
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, ELEMENT SETTING
17291-KSC-000
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, DRAIN
17358-HA0-680
Superseded by 17358-HM8-000
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
TUBE, DRAIN
17358-HM8-000
|
$6.20 | ||
|
Unavailable |
|||
|
#17
JOINT, BREATHER TUBE
17359-MAG-L00
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, BREATHER TUBE
17370-382-870
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, BREATHER TUBE
17371-174-670
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE A, BREATHER
17372-MKE-A50
|
$15.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE B, BREATHER
17373-MKE-A50
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT, TUBE
17375-MKE-A50
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, BREATHER TANK
17521-MKE-A50
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
TANK, BREATHER
17551-MKE-A50
|
$44.56 | ||
|
Available to order. Add to View Price |
|||
|
#25
SENSOR ASSY., AIR TEMPERATURE
37880-KWW-C01
|
$54.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOX ASSY., FUSE
50335-MKE-A50
|
$37.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET, SPEAKER PANEL
64266-MG9-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#28
RUBBER, RR. FENDER CUSHION (FR.)
80101-165-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16)
90020-GHB-640
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, SHROUD SETTING
90101-ML3-840
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT (6X18)
90105-MEN-A60
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT-WASHER (6X28)
90116-MKE-A50
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR (6X4)
90127-KF0-770
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR A
90501-KZ4-J20
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
COLLAR, RR. FENDER
90502-GG2-000
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR, FR. ENGINE GUARD
90503-MEY-670
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP, TUBE (D14.5)
91406-MS8-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT-WASHER (6X12)
93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#38
BOLT-WASHER (6X12)
93404-06012-08
Superseded by 93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#39
SCREW, PAN (4X30)
93500-04030-0G
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, TAPPING (5X20)
93911-25520
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, TAPPING (5X20)
93913-25580
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
CLIP, TUBE (B12.5)
95002-02130
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#44
TUBE, VINYL (11X15X60) (95003-37001-60M) (NA USE ALT:95003-37001-60M)
95003-37006-31
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#45
ROLLER (3X8)
96220-30080
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
