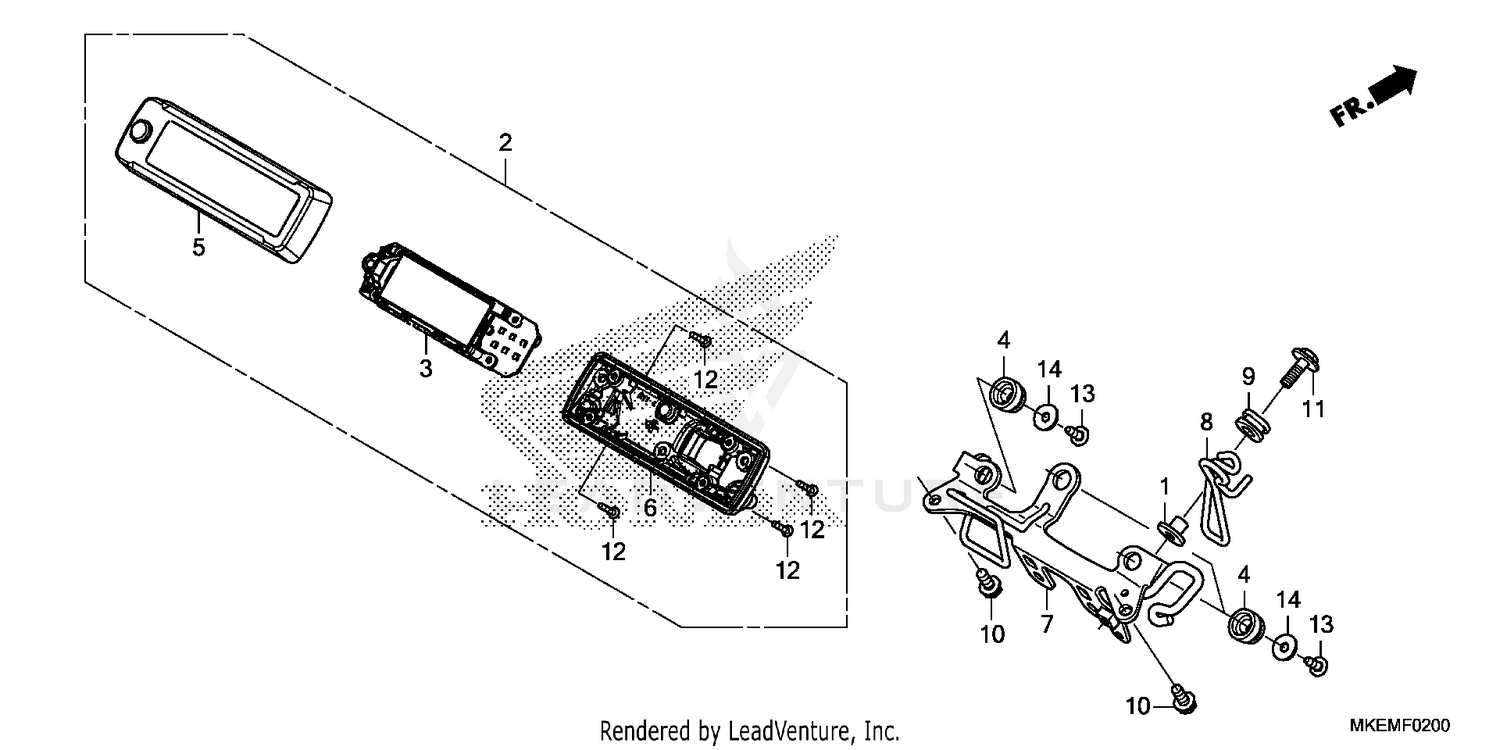

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, AIR CLEANER MOUNTING
17239-MGS-D30
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPEEDOMETER ASSY. (MPH)
37200-MKE-A41
|
$690.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
METER, LCD (MPH)
37210-MKE-A41
|
$488.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, METER SETTING
37215-KZZ-D20
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE ASSY. (UPPER)
37610-MKE-A41
|
$133.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE ASSY. (LOWER)
37620-MKE-A51
|
$33.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, METER
61315-MKE-A40
|
$83.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE B, THROTTLE CABLE
61318-MKE-A40
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, RR. FENDER CUSHION (FR.)
80101-165-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X12)
90031-GHB-620
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-WASHER (6X20)
93404-06020-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (3X16)
93903-224J0
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, TAPPING (5X14) (PO)
93913-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
