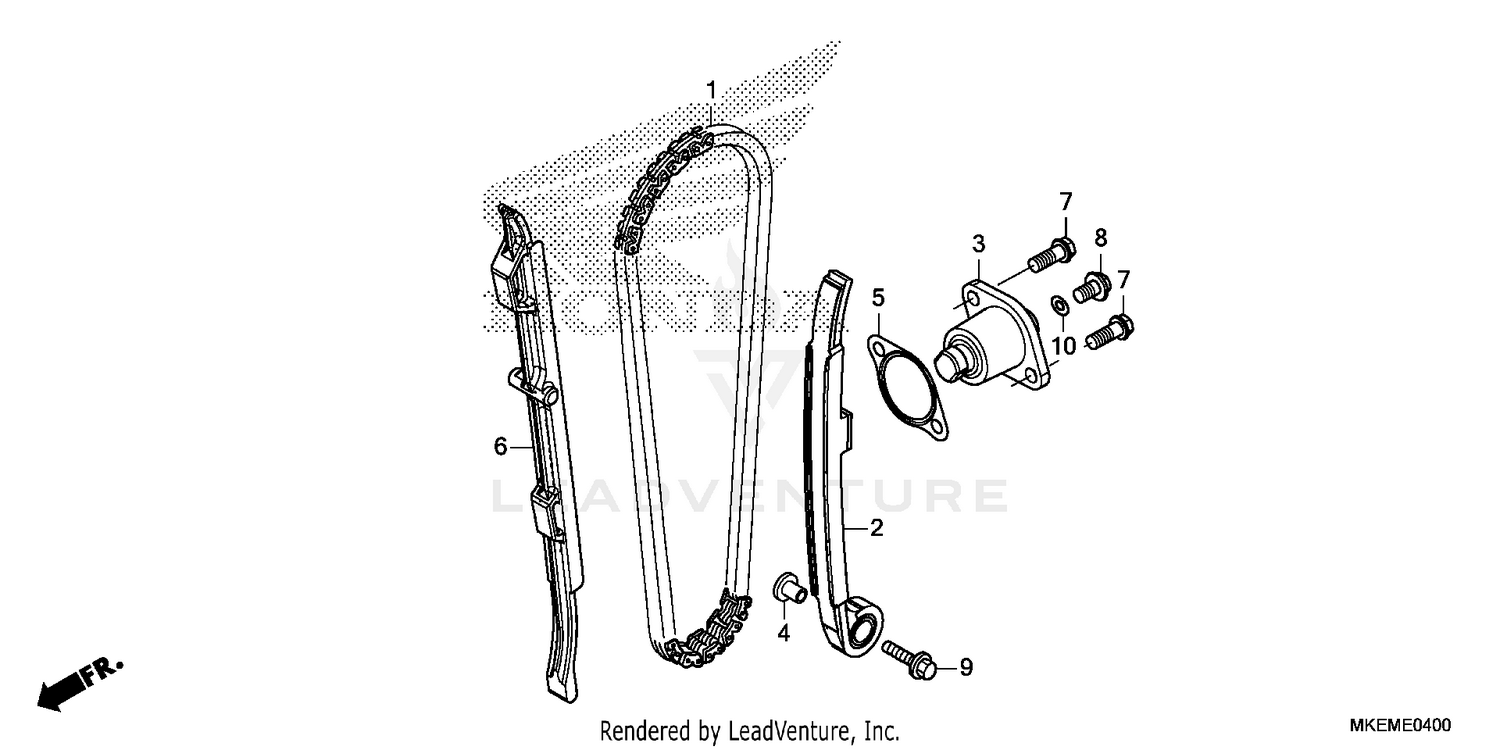

Cam Chain@tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM (112L) (BORG WARNER)
14401-MKE-A51
|
$91.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
TENSIONER, CAM CHAIN
14510-MKE-A51
|
$99.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
LIFTER ASSY., TENSIONER
14520-MKE-A01
|
$104.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, TENSIONER
14521-HN8-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, TENSIONER LIFTER
14560-MEN-671
|
$7.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GUIDE, CAM CHAIN
14620-MKE-A50
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X16)
90020-GHB-640
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X10)
90025-GHB-610
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X25)
90088-MEB-670
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING (6MM)
90442-397-000
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
