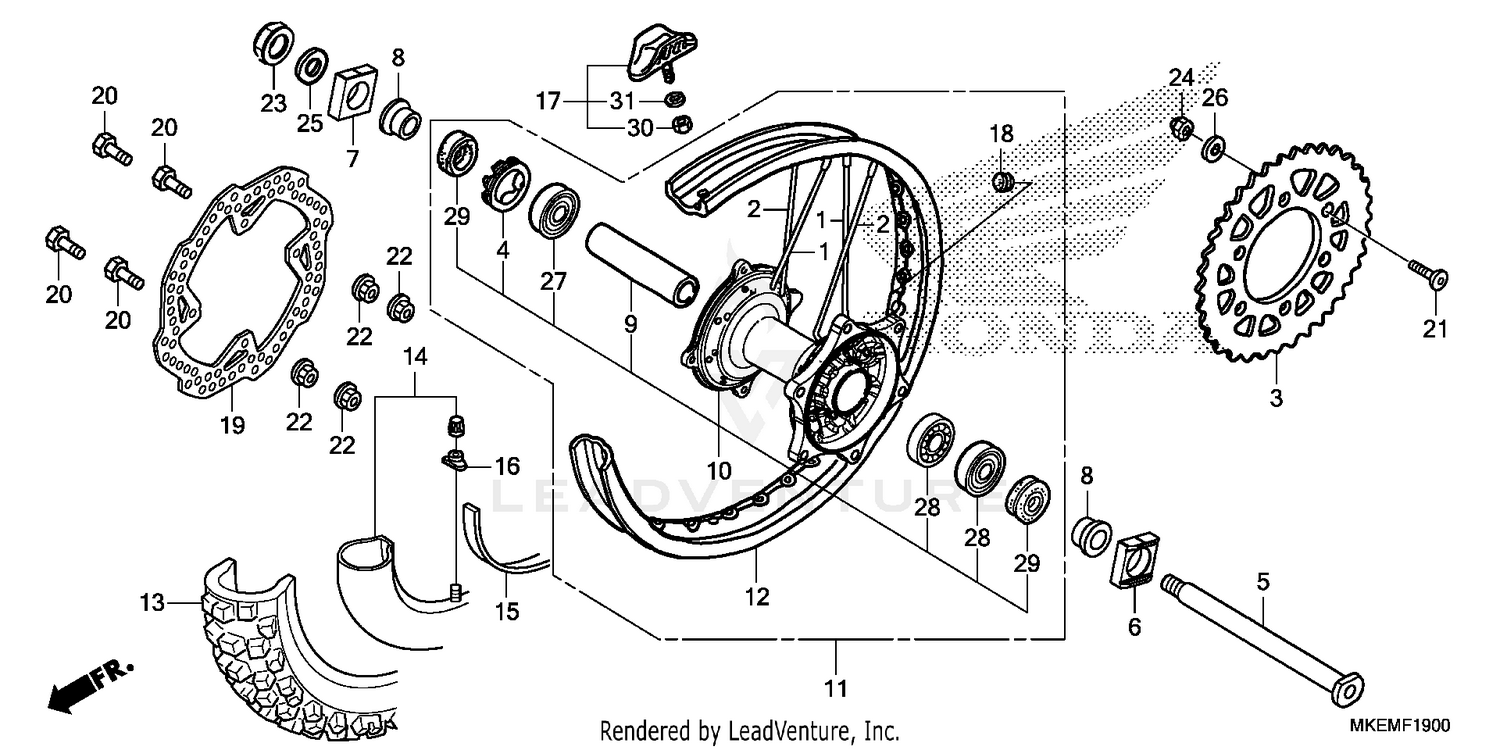

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, RR. (INSIDE)
06420-MEY-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, RR. (OUTSIDE)
06421-MEY-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (51T)
41201-MEY-000
|
$132.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, RR. WHEEL BEARING
41231-KZ4-J20
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, RR. WHEEL
42301-KRN-A30
|
$56.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, L. RR. AXLE
42305-MKE-A50
|
$25.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, R. RR. AXLE
42306-KZ4-J20
|
$23.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COLLAR, RR. WHEEL SIDE
42311-MKE-A60
|
$32.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. WHEEL DISTANCE
42620-MKE-A60
|
$32.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
HUB SUB-ASSY., RR.
42635-MKE-AF0
|
$487.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL SUB-ASSY., RR.
42650-MKE-A40
|
$976.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIM, RR. WHEEL (18X2.15)
42701-MKE-A81
|
$324.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIRE (110/100-18 64M
42711-MKE-A41
Superseded by 42711-MKE-A42
|
$142.15 | ||
|
Unavailable |
|||
|
#13
TIRE (110/100-18 64M
42711-MKE-A42
|
$142.15 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE
42712-KS7-641
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE
42712-KT1-671
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE
42712-KT1-672
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE
42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE
42712-KV6-009
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE
42712-400-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#15
FLAP, TIRE (1.85/2.15-18) (DUNLOP)
42713-300-004
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, BEAD (2.15)
42715-MA0-770
|
$45.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
DISK, RR. BRAKE
43351-KRN-A90
|
$273.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, DISK (6X19)
90105-MAC-680
|
$6.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, FLAT (8X31)
90125-KA4-000
|
$3.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U (22MM)
90305-KZ4-J20
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U (8MM) (FUSE RASHI)
90309-ML3-791
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (22X35X2)
90401-KZ4-J20
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER (8MM)
90465-MC4-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (69052RS)
91051-KZ4-J21
|
$22.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (6905RS)
91052-KZ4-J21
|
$21.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
DUST SEAL (32X43X7)
91251-KZ4-J21
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
