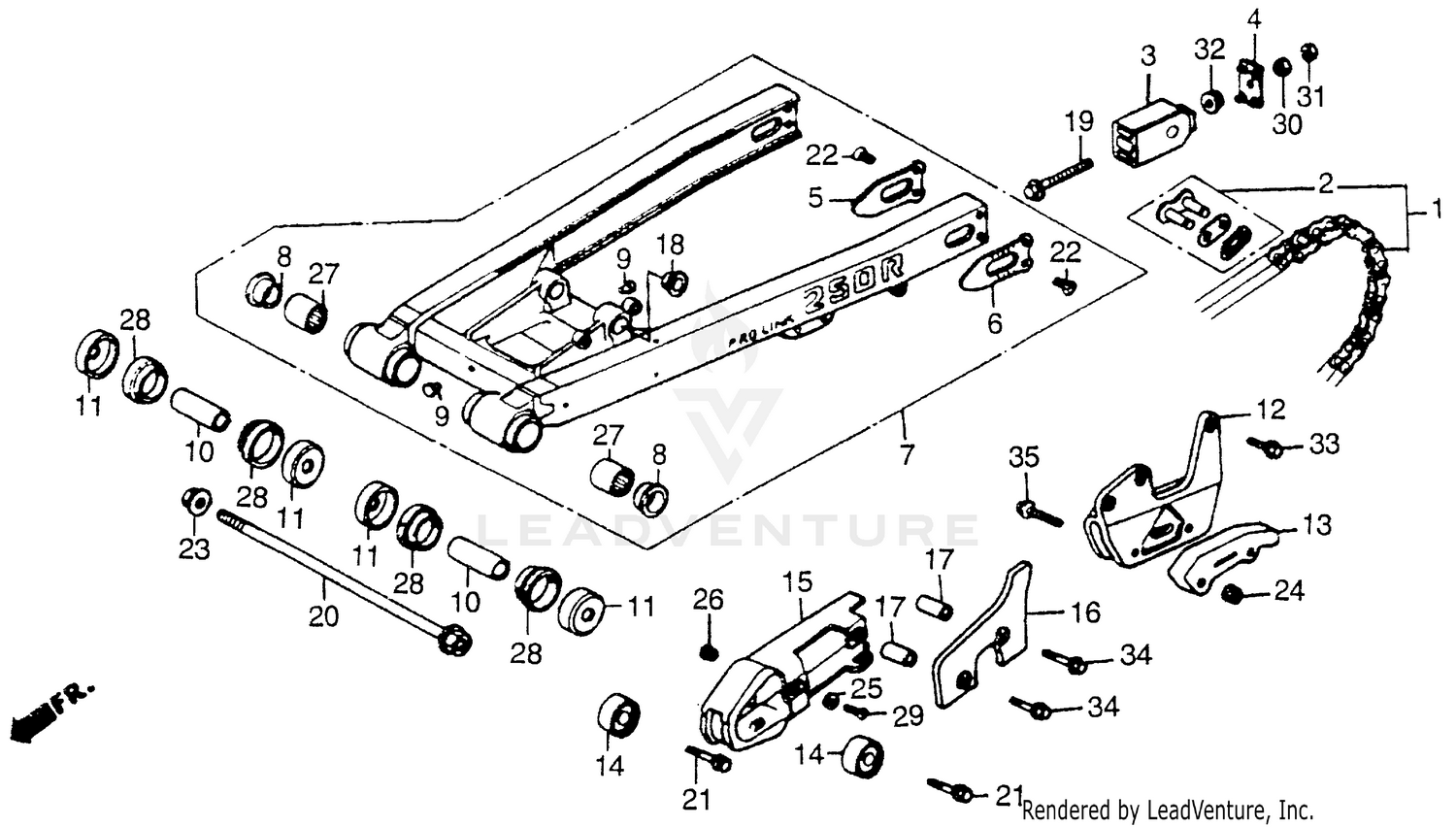

Swingarm 84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE
405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-731
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-732
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-733
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE (RK520K-ZX112L)
40532-KA4-731
|
$123.59 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40532-KA4-732
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (TAKASAGO)
40531-KA4-731
|
$7.05 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (DAIDO)
40531-KA4-732
|
$6.89 | ||
|
Unavailable |
|||
|
#3
ADJUSTER, CHAIN
40543-KA3-731
Superseded by 40543-KA4-700
|
$46.87 | ||
|
Unavailable |
|||
|
#3
ADJUSTER, CHAIN
40543-KA4-700
|
$46.87 | ||
|
Unavailable |
|||
|
#4
RETAINER, CHAIN ADJUSTER (NOT AVAILABLE)
40544-KA3-710
|
$32.07 | ||
|
Unavailable |
|||
|
#5
WASHER, SWINGARM INSIDE
42307-KA3-710
|
$33.85 | ||
|
Unavailable |
|||
|
#6
WASHER, SWINGARM (OUTER)
42308-KA3-710
|
$32.44 | ||
|
Unavailable |
|||
|
#7
SWINGARM ASSY., RR.
52000-KA4-730
|
$549.74 | ||
|
Unavailable |
|||
|
#8
BUSH, PIVOT THRUST
52109-KA4-701
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, RR. SWINGARM
52130-KA3-731
|
$2.29 | ||
|
Unavailable |
|||
|
#10
COLLAR, SWINGARM
52141-KA4-700
|
$21.36 | ||
|
Unavailable |
|||
|
#11
CAP, DUST SEAL
52144-KA3-731
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, SET CHAIN
52146-KA3-731
Superseded by 52146-KA3-305
|
$19.75 | ||
|
Unavailable |
|||
|
#13
SLIDER, CHAIN GUIDE
52147-KA3-730
|
$21.65 | ||
|
Unavailable |
|||
|
#14
ROLLER, CHAIN TENSIONER
52158-KA3-730
|
$54.29 | ||
|
Unavailable |
|||
|
#15
SLIDER, CHAIN
52170-KA3-730
|
$47.91 | ||
|
Unavailable |
|||
|
#16
SPLASH GUARD, CHAIN (NOT AVAILABLE)
52180-KA3-730
|
$13.96 | ||
|
Unavailable |
|||
|
#17
COLLAR, CHAIN SPLASH GUARD
52181-KA3-710
|
$4.58 | ||
|
Unavailable |
|||
|
#18
WASHER, CUSHION ARM
52464-KA3-730
|
$16.35 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X72)
90106-KA4-700
|
$3.63 | ||
|
Unavailable |
|||
|
#20
BOLT, SWINGARM (NOT AVAILABLE)
90117-KA3-710
|
$37.15 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (8X37)
90118-KA3-730
|
$3.59 | ||
|
Unavailable |
|||
|
#22
SCREW, FLAT (5X4)
90124-KA3-711
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, RR. SWINGARM PIVOT
90301-430-000
|
$6.22 | ||
|
Unavailable |
|||
|
#24
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, STOPPER
90483-040-000
Superseded by 90483-041-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, FR. FENDER SETTING
90556-044-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RR. SWINGARM PIVOT (TOYO)
91071-MA0-003
|
$40.11 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RR. SWINGARM PIVOT (TOYO)
91071-MA0-004
Superseded by 91071-MA0-003
|
$40.11 | ||
|
Unavailable |
|||
|
#28
DUST SEAL (32X36.8X8) (ARAI)
91253-KA3-731
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL
91253-KA4-701
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL
91253-KA4-702
Superseded by 91253-KA4-701
|
$15.58 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN (5X10)
93500-05010-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (6X35)
96000-06035-00
Superseded by 96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X35)
96001-06035-00
|
$1.60 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (6X40)
96000-06040-00
Superseded by 96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
Unavailable |
|||
