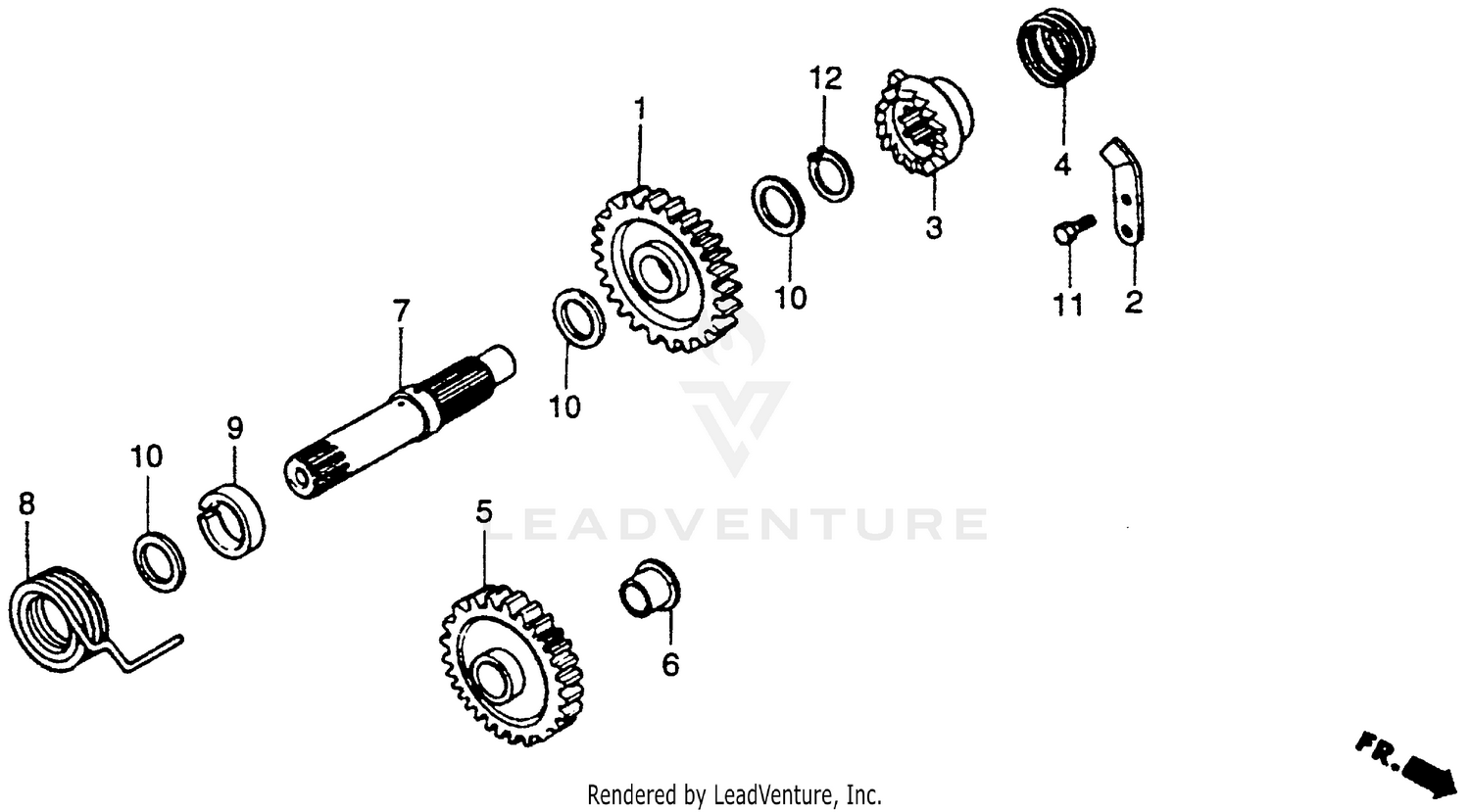

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION, KICK STARTER (NOT AVAILABLE)
28211-KA4-740
|
$116.36 | ||
|
Unavailable |
|||
|
#2
PLATE, KICK STOPPER (NOT AVAILABLE)
28215-KA4-740
|
$4.94 | ||
|
Unavailable |
|||
|
#3
RATCHET, KICK STARTER
28221-KA4-740
|
$51.18 | ||
|
Unavailable |
|||
|
#4
SPRING, KICK STARTER RATCHET
28223-KA4-740
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, KICK STARTER IDLE
28231-KA4-740
|
$66.03 | ||
|
Unavailable |
|||
|
#6
COLLAR, KICK STARTER IDLE GEAR
28232-KA4-740
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPINDLE, KICK STARTER
28251-KA4-740
|
$112.26 | ||
|
Unavailable |
|||
|
#8
SPRING, KICK RETURN
28261-KA4-740
Superseded by 28261-KA4-741
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, KICK RETURN
28261-KA4-741
|
$13.60 | ||
|
Unavailable |
|||
|
#9
COLLAR, KICK SPRING
28282-KA4-740
|
$10.50 | ||
|
Unavailable |
|||
|
#10
WASHER, THRUST (27X20X1.0)
90554-728-940
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (6X16)
93300-06016-0A
Superseded by 93301-06016-0A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (6X16)
93301-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#12
CIRCLIP (OUTER) (19MM)
94510-19000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
