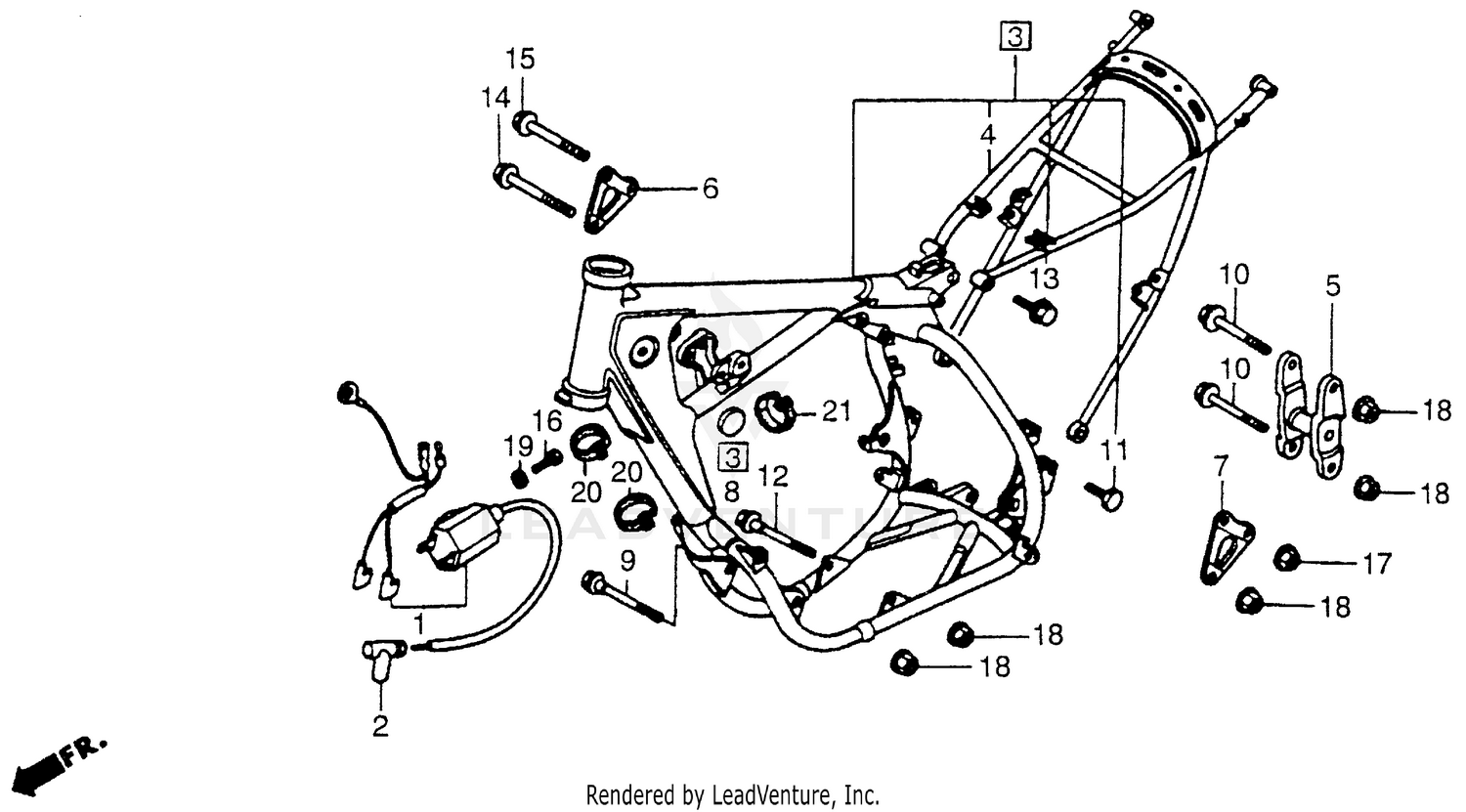

Frame 84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION (NOT AVAILABLE)
30500-KA3-730
|
$69.55 | ||
|
Unavailable |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-KA5-700
Superseded by 30700-KA5-771
|
$37.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-KA5-770
Superseded by 30700-KA5-771
|
$37.62 | ||
|
Unavailable |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-KA5-771
|
$37.62 | ||
|
Unavailable |
|||
|
#3
FRAME *R119* (FLASH RED)
50100-KA4-731ZA
|
$1,818.98 | ||
|
Unavailable |
|||
|
#4
FRAME, RR. *R119* (FLASH RED) (NOT AVAILABLE)
50140-KA3-730ZA
|
$593.66 | ||
|
Unavailable |
|||
|
#5
BRACKET, RR. ENGINE HANGER
50354-KA4-730
|
$159.40 | ||
|
Unavailable |
|||
|
#6
BRACKET, R. HEAD HANGER
50403-KA4-730
|
$32.31 | ||
|
Unavailable |
|||
|
#7
BRACKET, L. HEAD HANGER
50404-KA4-730
|
$27.24 | ||
|
Unavailable |
|||
|
#8
SEAL, HOLE SETTING (24MM)
87150-KA3-730
|
$2.68 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (10X98)
90018-KA4-730
Superseded by 90115-KW3-000
|
$12.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X98)
90115-KW3-000
|
$12.38 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (10X90) (NOT AVAILABLE)
90107-KA4-730
|
$7.95 | ||
|
Unavailable |
|||
|
#11
BOLT, JOINT (8X21.5)
90108-KA3-730
|
$3.78 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (10X114)
90105-GJ1-000
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X114)
90115-KA4-730
Superseded by 90105-GJ1-000
|
$10.16 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (8X37)
90118-KA3-730
|
$3.59 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (10X53)
90131-KA4-730
Superseded by 90112-GK4-000
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X53)
90131-ML3-910
Superseded by 90112-GK4-000
|
$5.58 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (8X60)
90135-KA4-730
|
$4.54 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (5X20)
92000-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (5X20)
92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (5X20)
92301-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#17
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (10MM)
94050-10080
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (5MM)
94101-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND B1, CABLE
32161-404-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.67 | ||
|
Unavailable |
|||
|
#21
BAND A3, CABLE
95014-61300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
