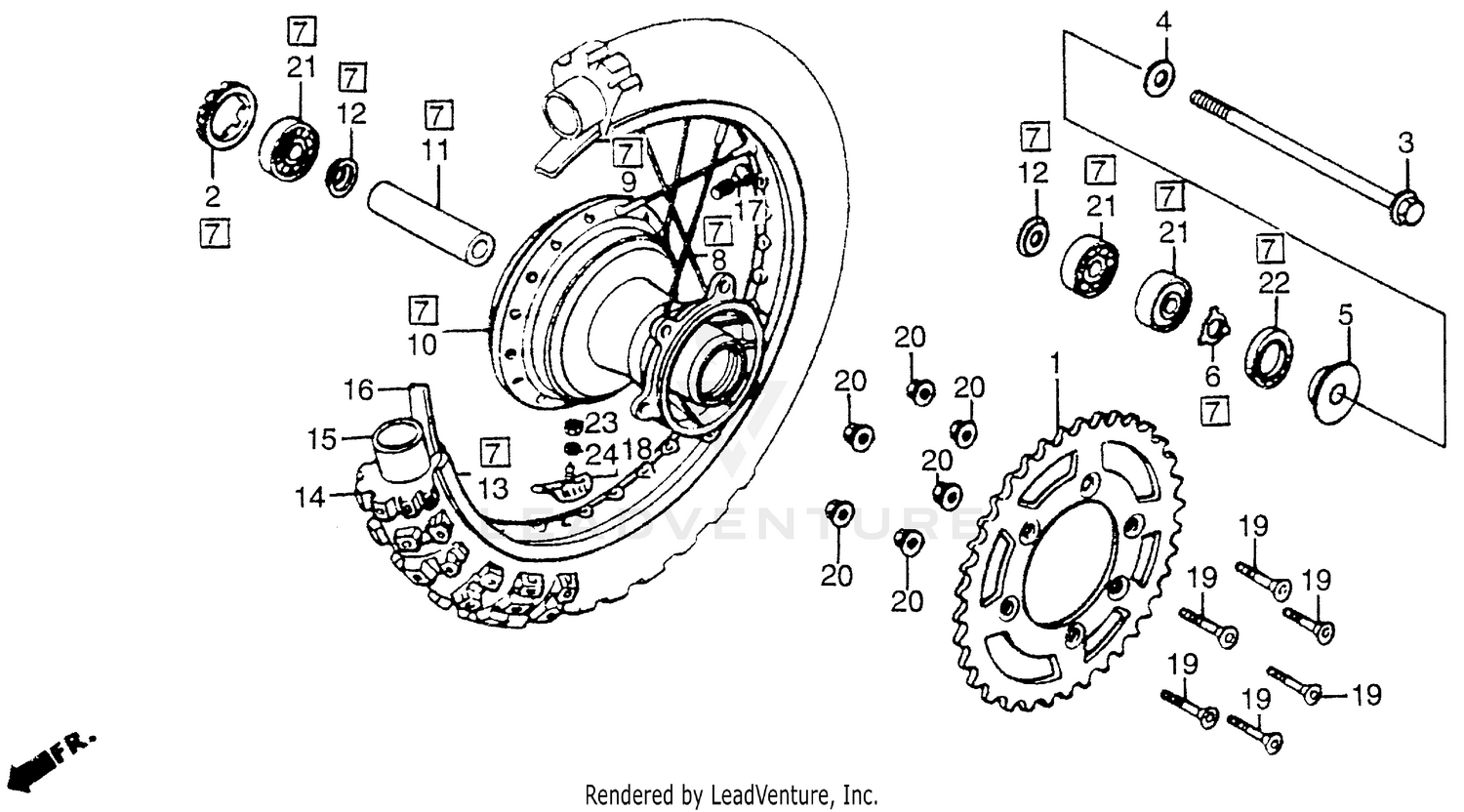

Rr. Wheel 84-86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KA3-710
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KA3-730
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KS6-000
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KS6-700
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KS6-830
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KZ4-711
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (49T) (NOT AVAILABLE)
41202-KA3-730
|
$45.39 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41202-KZ3-B00
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41202-KZ4-J20
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (53T) (NOT AVAILABLE)
41203-KA3-730
|
$69.21 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T) (STEEL)
41204-KA3-710
|
$62.74 | ||
|
Unavailable |
|||
|
#2
RETAINER, RR. WHEEL BEARING
41231-KA3-710
|
$22.96 | ||
|
Unavailable |
|||
|
#3
AXLE, RR. WHEEL (NOT AVAILABLE)
42301-KA3-710
|
$65.32 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. AXLE
42306-KA4-700
Superseded by 42306-KA3-830
|
$13.37 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. AXLE
42306-KA3-830
|
$13.37 | ||
|
Unavailable |
|||
|
#5
COLLAR, RR. WHEEL SIDE
42311-KA3-710
Superseded by 42311-KS6-700
|
$19.82 | ||
|
Unavailable |
|||
|
#5
COLLAR, RR. WHEEL SIDE
42311-KS6-700
|
$19.82 | ||
|
Unavailable |
|||
|
#6
WASHER, RR. WHEEL SIDE
42312-KA3-710
Superseded by 42312-KA3-730
|
$2.97 | ||
|
Unavailable |
|||
|
#6
WASHER, RR. WHEEL SIDE
42312-KA3-730
|
$2.97 | ||
|
Unavailable |
|||
|
#8
SPOKE SET A, RR. (189.5MM)
426C0-KA3-730
|
$5.41 | ||
|
Unavailable |
|||
|
#9
SPOKE SET B, RR. (164MM)
426D0-KA3-730
|
$5.41 | ||
|
Unavailable |
|||
|
#10
HUB, RR. WHEEL *NH105* (MAT BLACK) (NOT AVAILABLE)
42601-KA4-730ZA
Superseded by 42601-KS6-000ZA
|
$380.40 | ||
|
Unavailable |
|||
|
#11
COLLAR, RR. WHEEL DISTANCE
42620-KA3-710
|
$46.10 | ||
|
Unavailable |
|||
|
#12
CAP, DISTANCE COLLAR
42621-KA3-710
Superseded by 42621-KA3-711
|
$4.03 | ||
|
Unavailable |
|||
|
#12
CAP, DISTANCE COLLAR
42621-KA3-711
|
$4.03 | ||
|
Unavailable |
|||
|
#13
RIM, RR. WHEEL (NOT AVAILABLE)
42701-KA4-711
|
$222.12 | ||
|
Unavailable |
|||
|
#14
TIRE, RR. (130/80-18) (4PR M38) (BS) (NOT AVAILABLE)
42711-KA4-741
|
$50.27 | ||
|
Unavailable |
|||
|
#15
TUBE, TIRE
42712-KA3-711
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#15
TUBE, TIRE
08400-30000
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#15
TUBE, TIRE
42712-KS7-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#15
TUBE, TIRE
42712-KA5-681
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#15
TUBE, TIRE
42712-KT1-671
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#15
TUBE, TIRE
42712-430-701
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#16
FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE)
42713-300-003
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER, BEAD (2.15)
42715-MA0-770
|
$45.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (8X29)
90125-KA3-700
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6004TM) (TOYO)
91061-KA4-701
|
$37.44 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (28X42X8) (NOK)
91257-KA3-711
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL (28X42X8) (NOK)
91257-KA3-712
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (28X42X8) (NOK)
91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#23
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
