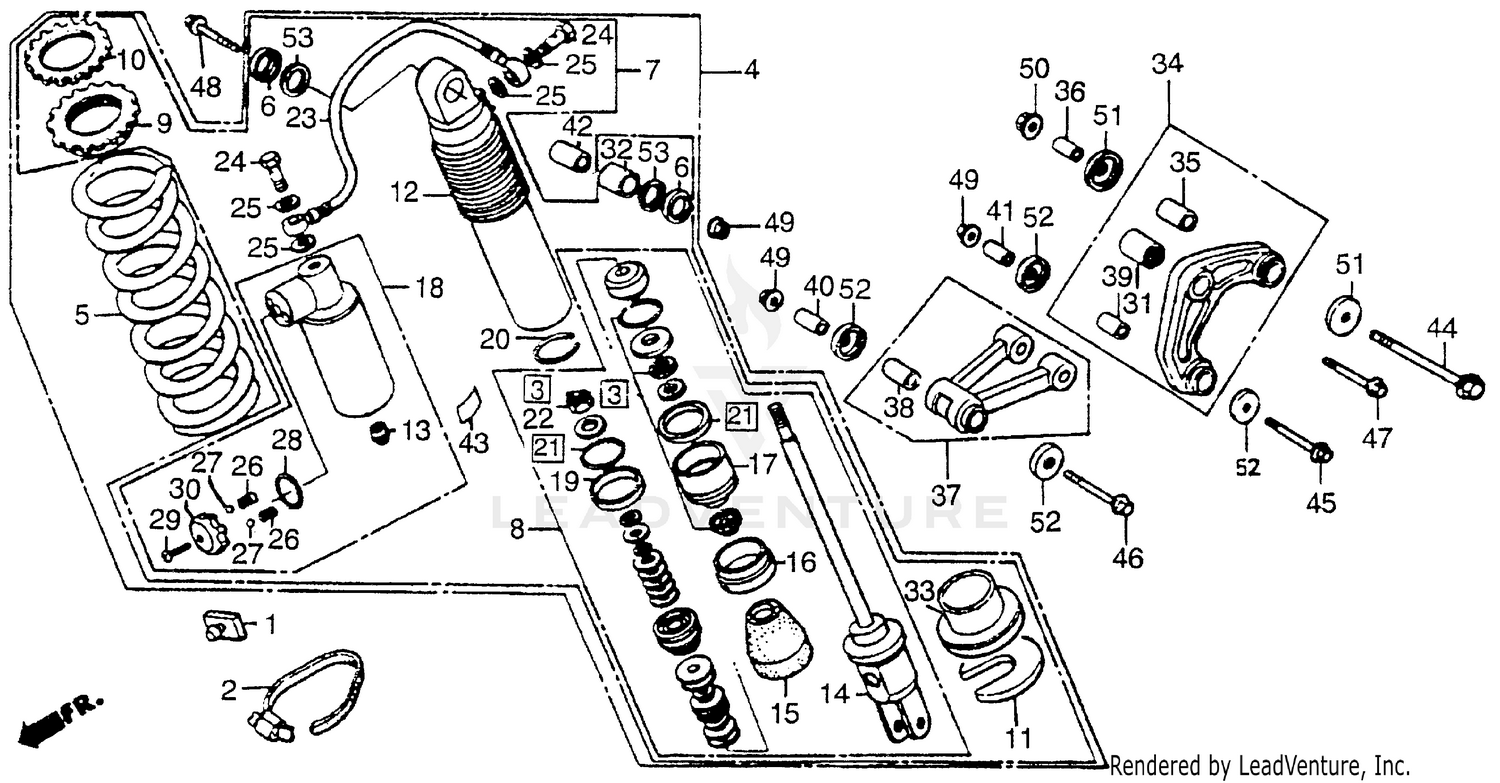

Shock Absorber 84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)
50250-KA3-730
|
$3.59 | ||
|
Unavailable |
|||
|
#2
BAND, SUB-TANK (NOT AVAILABLE)
50252-KA4-730
|
$18.27 | ||
|
Unavailable |
|||
|
#3
OIL SEAL & NUT SET
524A3-KA4-741
|
$9.59 | ||
|
Unavailable |
|||
|
#4
SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)
52400-KA4-741
|
$918.15 | ||
|
Unavailable |
|||
|
#5
SPRING, RR. SHOCK ABSORBER
52401-KA4-741
|
$221.73 | ||
|
Unavailable |
|||
|
#5
SPRING, RR. SHOCK ABSORBER (4.2 YELLOW)
52402-KA4-741
|
$237.31 | ||
|
Unavailable |
|||
|
#5
SPRING, RR. SHOCK ABSORBER (5.0 BLUE)
52403-KA4-741
|
$146.55 | ||
|
Unavailable |
|||
|
#6
CAP, DUST SEAL
52406-KB7-003
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, RR.
52410-KA4-741
|
$646.81 | ||
|
Unavailable |
|||
|
#8
ROD, PISTON
52421-KA4-741
|
$325.25 | ||
|
Unavailable |
|||
|
#9
ADJUSTER, SPRING
52422-MA0-003
|
$44.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, ADJUSTER
52423-KA3-711
|
$25.55 | ||
|
Unavailable |
|||
|
#11
STOPPER, SPRING SEAT
52424-KA3-711
|
$15.07 | ||
|
Unavailable |
|||
|
#12
CASE, RR. SHOCK ABSORBER
52425-KA4-731
|
$260.58 | ||
|
Unavailable |
|||
|
#13
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD
52426-KA4-741
|
$398.97 | ||
|
Unavailable |
|||
|
#15
RUBBER, STOPPER
52427-KA4-741
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, CASE
52428-KA4-741
|
$22.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
CASE, ROD GUIDE (NOT AVAILABLE)
52429-KA4-741
|
$18.05 | ||
|
Unavailable |
|||
|
#18
SUB-TANK ASSY.
52430-KA4-731
|
$105.15 | ||
|
Unavailable |
|||
|
#19
RING, PISTON
52431-MA0-771
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, STOPPER
52435-MA0-771
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING SET (SHOWA) (NOT AVAILABLE)
52437-KA4-741
|
$4.63 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (12MM)
52438-KA4-741
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, JOINT
52440-KA4-731
|
$98.57 | ||
|
Unavailable |
|||
|
#24
BOLT, OIL (10X22)
52441-KA3-711
|
$8.32 | ||
|
Unavailable |
|||
|
#25
WASHER, SPECIAL (10MM)
52442-KA3-711
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, CLICK (NOT AVAILABLE)
52445-KA4-731
|
$4.47 | ||
|
Unavailable |
|||
|
#27
BALL
52446-KF0-003
|
$2.19 | ||
|
Unavailable |
|||
|
#28
O-RING (2X23.5)
52447-KF0-003
|
$3.86 | ||
|
Unavailable |
|||
|
#29
SCREW
52448-KF0-003
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, ADJUSTING (NOT AVAILABLE)
52449-KA4-731
|
$10.40 | ||
|
Unavailable |
|||
|
#31
BUSH, SHOCK ABSORBER (LOWER)
52451-MA0-000
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#32
BUSH, SHOCK ABSORBER (UPPER)
52452-KB7-003
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAT C, SPRING
52459-KA3-711
|
$35.01 | ||
|
Unavailable |
|||
|
#34
ARM ASSY., SHOCK ABSORBER
52460-KA3-730
|
$401.55 | ||
|
Unavailable |
|||
|
#35
BUSH, DAMPER ARM
52462-MA0-013
|
$23.97 | ||
|
Unavailable |
|||
|
#36
COLLAR, DAMPER ARM PIVOT
52463-MA0-010
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROD ASSY., DAMPER CONNECTING (NOT AVAILABLE)
52470-KA3-730
|
$264.50 | ||
|
Unavailable |
|||
|
#38
BUSH, DAMPER CONNECTING ROD (NOT AVAILABLE)
52472-KA3-711
|
$28.49 | ||
|
Unavailable |
|||
|
#39
BUSH, RUBBER CONNECTING ROD
52472-MA0-013
|
$35.71 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR, CONNECTING ROD PIVOT (NOT AVAILABLE)
52473-KA3-710
|
$12.60 | ||
|
Unavailable |
|||
|
#41
COLLAR, CONNECTING ROD PIVOT
52473-MA0-010
Superseded by 52473-MA0-020
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR, SHOCK ABSORBER (UPPER)
52486-KB7-003
|
$17.95 | ||
|
Available to order. Add to View Price |
|||
|
#43
LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)
87516-KF0-003
|
$3.43 | ||
|
Unavailable |
|||
|
#44
BOLT, FLANGE (12X105)
90128-KA3-730
|
$13.90 | ||
|
Unavailable |
|||
|
#45
BOLT, FLANGE (10X77)
90129-KF0-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE (10X98)
90130-KA3-730
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (10X48)
90153-KA3-730
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE (10X58)
90182-KA3-730
Superseded by 90153-KK0-000
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, AXLE (10MM)
90304-GA6-003
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#50
NUT, FLANGE (12MM)
90306-KA4-003
Superseded by 90306-181-761
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#50
NUT, FLANGE (12MM)
90306-181-761
|
$7.64 | ||
|
Unavailable |
|||
|
#51
SEAL, CUSHION ARM PIVOT (ARAI)
91261-KA3-711
Superseded by 91262-KR8-750
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#51
SEAL, CUSHION ARM PIVOT (ARAI)
91261-KA3-712
Superseded by 91262-KR8-750
|
$13.25 | ||
|
Unavailable |
|||
|
#52
SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)
91262-KA3-711
Superseded by 91262-KA3-712
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#52
SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)
91262-KA3-712
|
$14.09 | ||
|
Unavailable |
|||
|
#53
DUST SEAL B
91351-KB7-003
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
