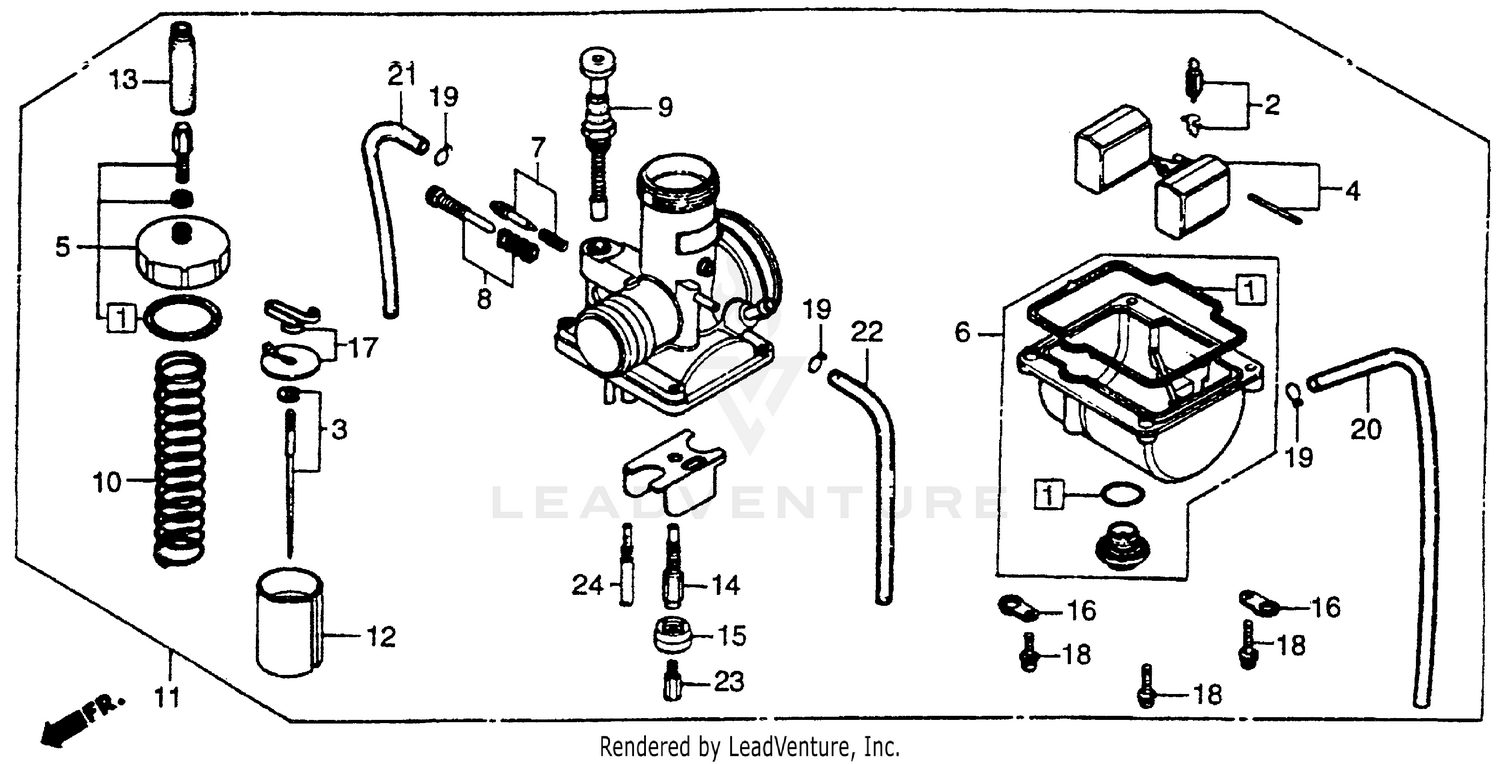

Carburetor 84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET (NOT AVAILABLE)
16010-KA5-004
|
$32.40 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-KA3-741
|
$54.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET (R1468N)
16012-KA4-741
Superseded by 16012-KS6-004
|
$18.03 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-KA3-741
Superseded by 16013-HA2-671
|
$59.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOP SET
16014-KA5-771
|
$39.05 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-KA3-741
Superseded by 16015-KA3-761
|
$132.17 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-KA3-761
|
$132.17 | ||
|
Unavailable |
|||
|
#7
SCREW SET A
16016-166-004
Superseded by 16016-GB4-003
|
$26.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET B (NOT AVAILABLE)
16028-KA5-004
|
$29.85 | ||
|
Unavailable |
|||
|
#9
VALVE SET, STARTER
16046-KA5-771
|
$65.08 | ||
|
Unavailable |
|||
|
#10
SPRING, COMPRESSION COIL (NOT AVAILABLE)
16050-KA5-004
|
$14.73 | ||
|
Unavailable |
|||
|
#11
CARBURETOR ASSY. (NOT AVAILABLE)
16100-KA4-741
Superseded by 16100-KA4-711
|
$225.28 | ||
|
Unavailable |
|||
|
#12
VALVE, THROTTLE
16111-KA4-701
|
$79.32 | ||
|
Unavailable |
|||
|
#13
CAP, CABLE SEALING
16118-166-004
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE, JET (NOT AVAILABLE)
16164-KA5-004
Superseded by 16164-HE0-670
|
$21.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, JET
16168-KA5-004
|
$12.55 | ||
|
Unavailable |
|||
|
#16
BINDER
16179-428-671
|
$9.18 | ||
|
Unavailable |
|||
|
#17
PLATE SET
16212-KA5-004
|
$7.57 | ||
|
Unavailable |
|||
|
#18
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X300)
95003-05008-60M
|
$23.43 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULK HOSE, VINYL (4X7X8000) (4X7X330)
95003-07008-60M
|
$29.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULK HOSE, VINYL (4X7X8000) (4X7X390)
95003-07008-60M
|
$29.67 | ||
|
Unavailable |
|||
|
#23
JET, MAIN (#152)
99101-357-1520
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
JET, SLOW (#68)
99103-441-0680
|
$12.07 | ||
|
Unavailable |
|||
