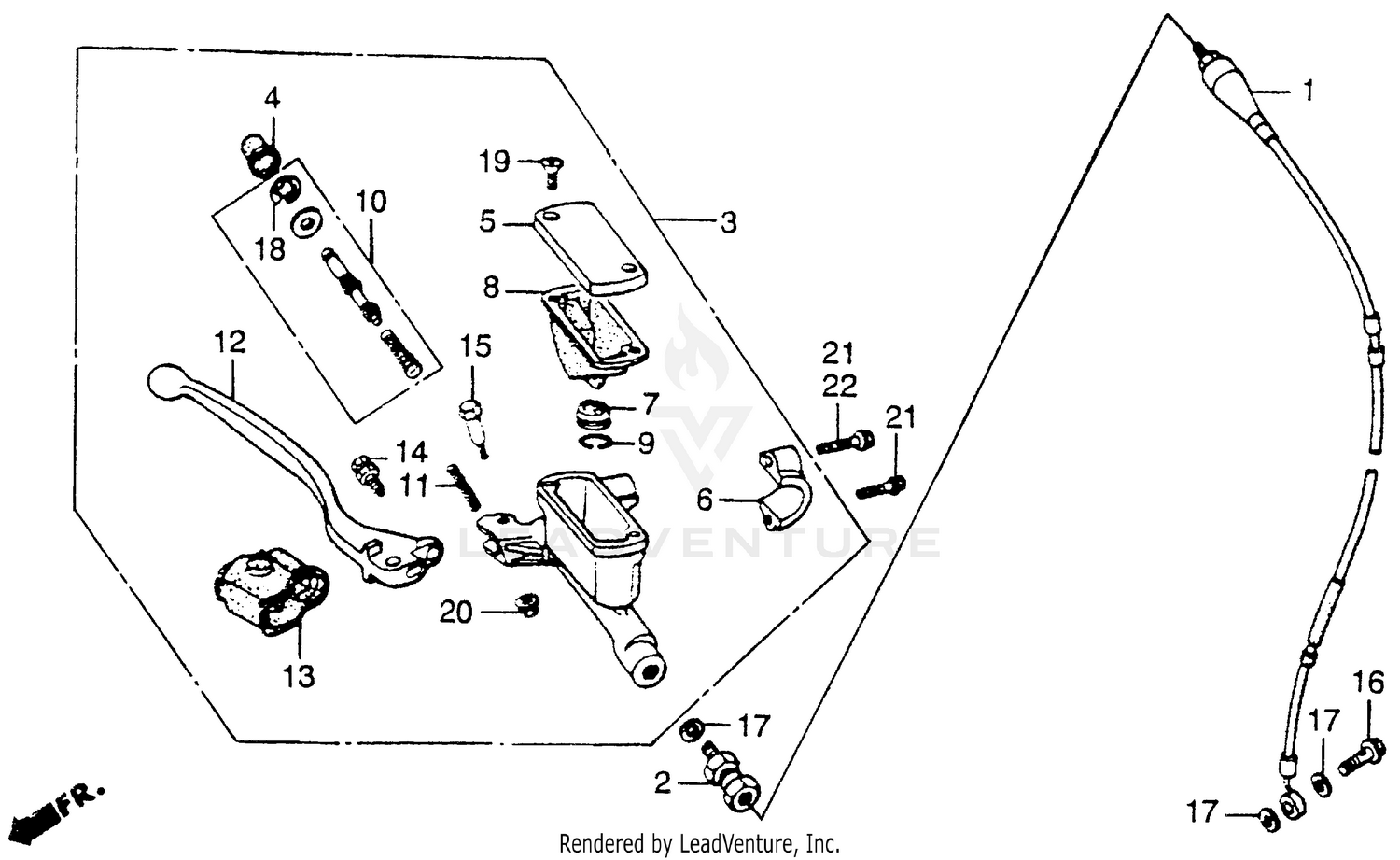

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, FR. BRAKE
45125-KA4-731
Superseded by 45125-KA4-732
|
$88.61 | ||
|
Unavailable |
|||
|
#2
JOINT, BRAKE HOSE (NOT AVAILABLE)
45127-MG3-003
Superseded by 45127-MG3-013
|
$15.28 | ||
|
Unavailable |
|||
|
#3
MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-KA3-305)
45500-KA3-742
Superseded by 45500-KA3-841
|
$200.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, MASTER CYLINDER
45513-KA3-732
Superseded by 45513-KCE-006
|
$23.77 | ||
|
Unavailable |
|||
|
#5
CAP, MASTER CYLINDER
45513-KCE-006
|
$23.77 | ||
|
Unavailable |
|||
|
#6
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEPARATOR
45518-KA3-731
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM
45520-KA3-731
|
$16.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING
45523-KA3-731
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER
45530-KA3-731
Superseded by 45530-KA3-831
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER
45530-KA3-831
|
$44.76 | ||
|
Unavailable |
|||
|
#11
SPRING, LEVER RETURN
45552-KA3-731
Superseded by 45552-KA3-831
|
$2.66 | ||
|
Unavailable |
|||
|
#11
SPRING, LEVER RETURN
45552-KA3-831
|
$2.66 | ||
|
Unavailable |
|||
|
#12
LEVER, R. HANDLEBAR
53175-KA3-731
|
$22.07 | ||
|
Unavailable |
|||
|
#12
LEVER, R. HANDLEBAR
53175-KA3-741
Superseded by 53175-KA3-731
|
$22.07 | ||
|
Unavailable |
|||
|
#13
COVER, R. HANDLEBAR
53176-KA3-731
Superseded by 53176-KA3-831
|
$5.24 | ||
|
Unavailable |
|||
|
#13
COVER, R. HANDLEBAR
53176-KA3-831
|
$5.24 | ||
|
Unavailable |
|||
|
#15
BOLT, HANDLEBAR PIVOT
90114-166-006
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, OIL (10X22) (SAGA)
90145-961-010
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#16
BOLT, OIL (10X22)
90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#17
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X25)
96000-06025-00
|
$2.20 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
