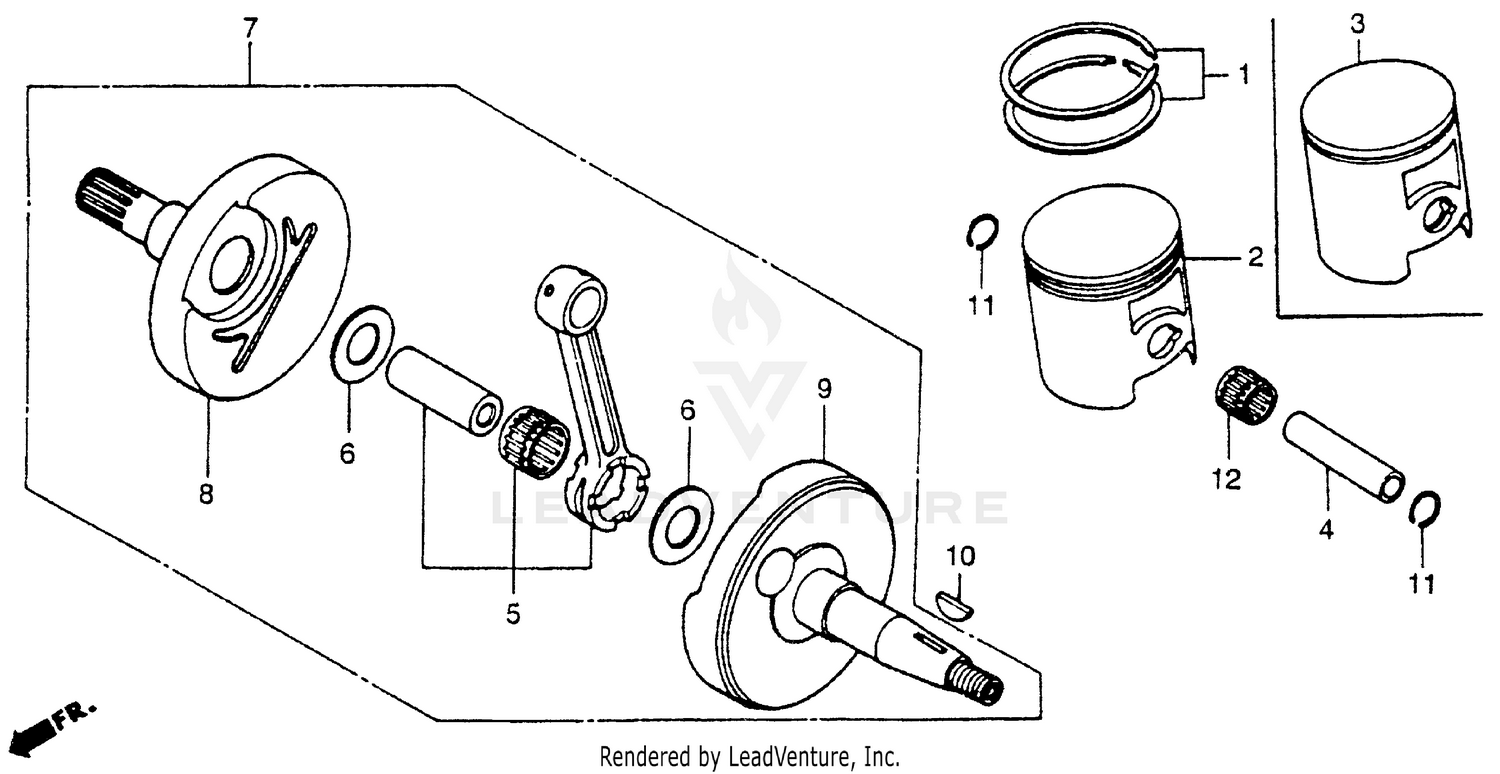

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET, PISTON (STD)
130A1-KA4-003
|
$53.69 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OS 0.25)
130A2-KA4-003
|
$36.33 | ||
|
Available to order. Add to View Price |
|||
|
#1
RING SET, PISTON (OS 0.50)
130A3-KA4-003
|
$53.33 | ||
|
Unavailable |
|||
|
#2
PISTON (STD)
13100-KA4-740
|
$137.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (OS 0.25)
13102-KA4-740
|
$137.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (OS 0.50)
13103-KA4-740
|
$134.14 | ||
|
Unavailable |
|||
|
#3
PISTON (STD)
13100-KA4-810
|
$111.53 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.25)
13102-KA4-810
|
$90.74 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.50) (NOT AVAILABLE)
13103-KA4-810
|
$81.86 | ||
|
Unavailable |
|||
|
#4
PIN, PISTON
13111-KA4-000
Superseded by 13111-KSK-730
|
$23.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PIN, PISTON
13111-KZ3-000
Superseded by 13111-KSK-730
|
$23.96 | ||
|
Unavailable |
|||
|
#5
ROD, CONNECTING (NOT AVAILABLE)
13200-KA4-740
Superseded by 13200-KA4-741
|
$100.09 | ||
|
Unavailable |
|||
|
#6
PLATE, CONNECTING ROD SIDE
13202-KA4-741
|
$8.17 | ||
|
Unavailable |
|||
|
#7
CRANKSHAFT
13300-KA4-740
Superseded by 13300-KA4-771
|
$588.50 | ||
|
Unavailable |
|||
|
#8
CRANKSHAFT, R. (NOT AVAILABLE)
13310-KA4-740
Superseded by 13310-KA4-770
|
$224.92 | ||
|
Unavailable |
|||
|
#9
CRANKSHAFT, L. (NOT AVAILABLE)
13320-KA4-740
Superseded by 13320-KA4-770
|
$224.92 | ||
|
Unavailable |
|||
|
#10
KEY, WOODRUFF SPECIAL (25X1)
13331-360-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP, PISTON PIN (1.2X18)
90601-430-000
|
$4.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING 2, CONNECTING ROD SMALL END (TOYO)
91014-357-003
Superseded by 91015-357-003
|
$34.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING 2, CONNECTING ROD SMALL END (TOYO)
91014-357-004
Superseded by 91015-357-003
|
$34.58 | ||
|
Unavailable |
|||
|
#12
BEARING 2, CONNECTING ROD SMALL END (TOYO)
91014-357-006
Superseded by 91015-357-003
|
$34.58 | ||
|
Unavailable |
|||
|
#12
BEARING 2, CONNECTING ROD SMALL END (TOYO)
91015-357-003
|
$34.58 | ||
|
Unavailable |
|||
|
#12
BEARING 2, CONNECTING ROD SMALL END (TOYO)
91015-357-004
Superseded by 91015-357-003
|
$34.58 | ||
|
Unavailable |
|||
|
#12
BEARING 2, CONNECTING ROD SMALL END (TOYO)
91015-357-006
Superseded by 91015-357-003
|
$34.58 | ||
|
Unavailable |
|||
