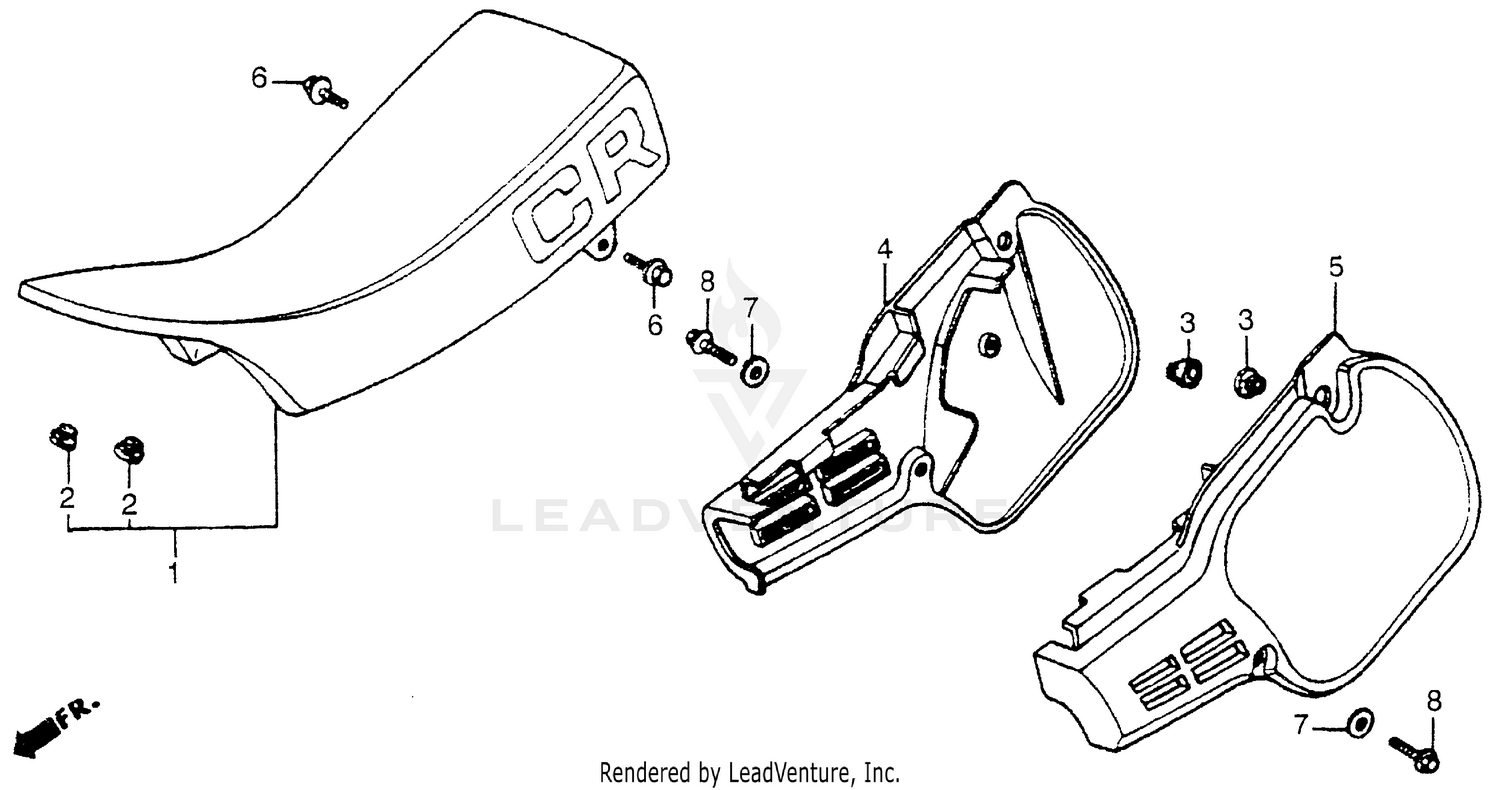

Seat 84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT (NOT AVAILABLE)
77100-KA3-750
|
$205.37 | ||
|
Unavailable |
|||
|
#1
SEAT (NOT AVAILABLE)
77100-KA3-810
|
$176.95 | ||
|
Unavailable |
|||
|
#2
RUBBER, SEAT MOUNTING
77110-KA3-730
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, SIDE COVER (PD)
83512-KA4-700
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER SUB-ASSY., R. SIDE (TYPE1) (NOT AVAILABLE)
83520-KA3-730ZA
|
$62.32 | ||
|
Unavailable |
|||
|
#5
COVER SUB-ASSY., L. SIDE (TYPE1)
83620-KA3-730ZA
|
$73.18 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (8X20)
90133-KA3-730
Superseded by 96300-08020-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (8X20)
96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (8X20)
96500-08012-00
Superseded by 96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (8X20)
96500-08020-00
Superseded by 96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#7
WASHER, SIDE COVER
90506-KA3-710
|
$1.76 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
