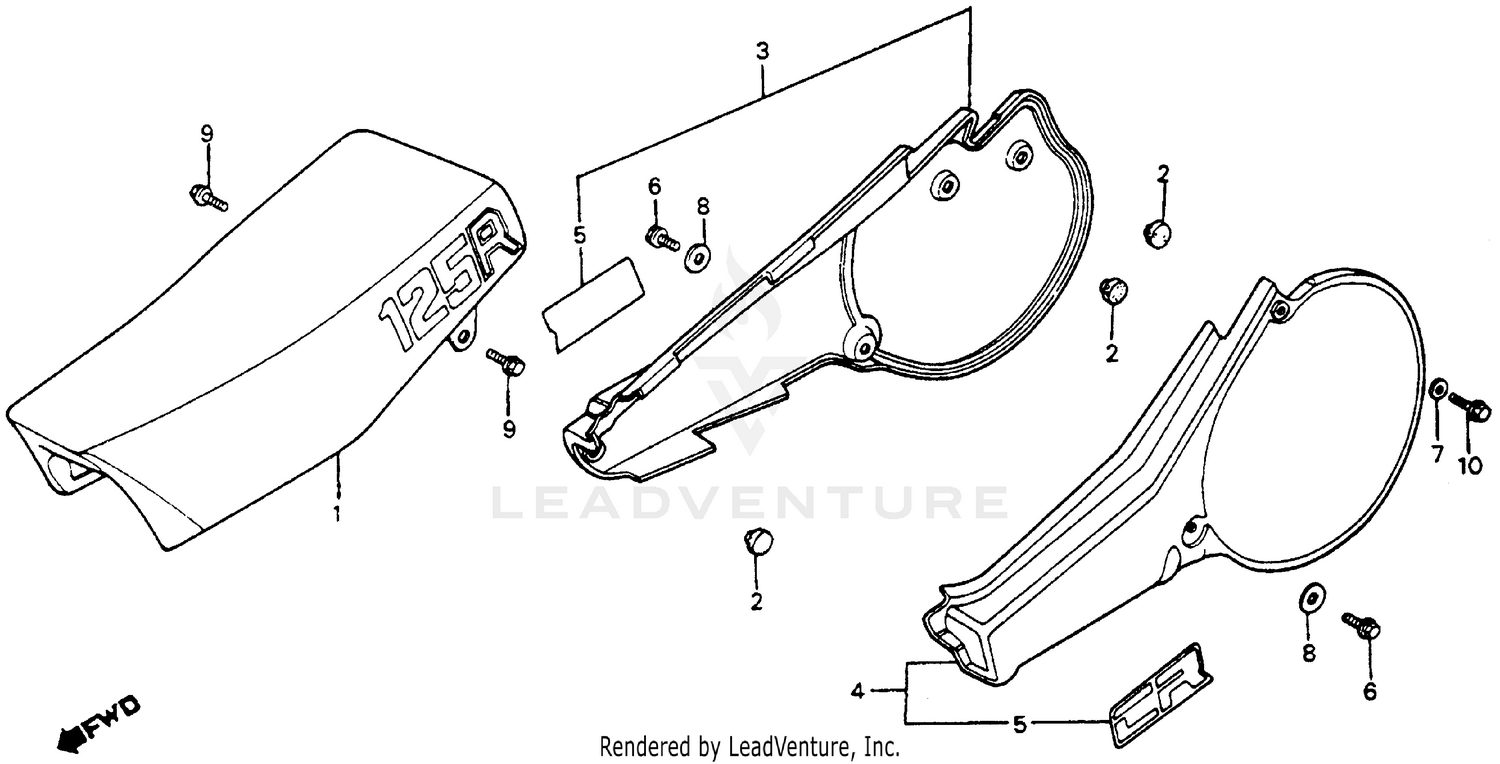

Seat + Side Cover 81-82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT (NOT AVAILABLE)
77100-KA3-771
|
$273.04 | ||
|
Unavailable |
|||
|
#2
RUBBER, SIDE COVER
83512-KA4-700
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER SUB-ASSY., R. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)
83520-KA3-700ZA
|
$60.61 | ||
|
Unavailable |
|||
|
#4
COVER SUB-ASSY., L. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)
83620-KA3-700ZA
|
$64.52 | ||
|
Unavailable |
|||
|
#5
EMBLEM, SIDE COVER (NOT AVAILABLE)
87203-KA4-700
|
$7.79 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (6X12)
96000-06012-00
Superseded by 96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
Unavailable |
|||
|
#7
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLAIN (6MM)
94103-06800
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (8X12)
95700-08012-08
Superseded by 95701-08012-08
|
$1.83 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (8X12)
95701-08012-08
|
$1.83 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (6X20)
96000-060-2000
Superseded by 96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Unavailable |
|||
