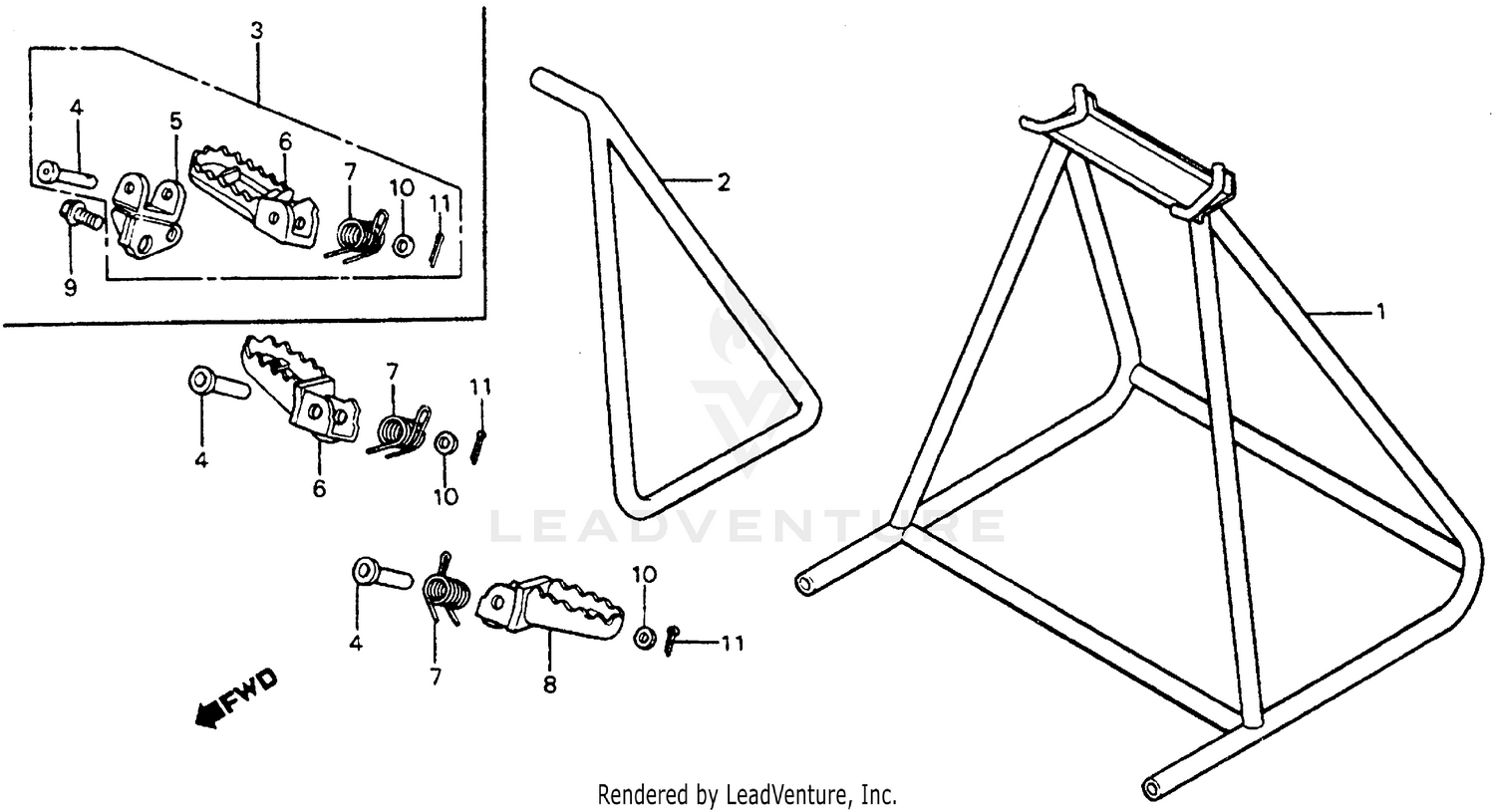

Main Stand + Side Stand + Footpegs Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN (NOT AVAILABLE)
50500-KA4-810
|
$169.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, SIDE STAND (NOT AVAILABLE)
50530-KA3-000
|
$43.47 | ||
|
Unavailable |
|||
|
#4
PIN, STEP JOINT (NOT AVAILABLE)
50603-KA4-700
Superseded by 50603-KA4-000
|
$4.42 | ||
|
Unavailable |
|||
|
#6
ARM, R. FOOTPEG (NOT AVAILABLE)
50616-KA3-700
Superseded by 50616-KA3-701
|
$34.27 | ||
|
Unavailable |
|||
|
#6
ARM, R. FOOTPEG (NOT AVAILABLE)
50616-KA3-701
|
$34.27 | ||
|
Unavailable |
|||
|
#7
SPRING, FOOTPEG RETURN
50617-MA0-770
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, L. FOOTPEG (NOT AVAILABLE)
50642-KA3-700
|
$33.13 | ||
|
Unavailable |
|||
|
#10
WASHER (10.2MM)
90401-430-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
