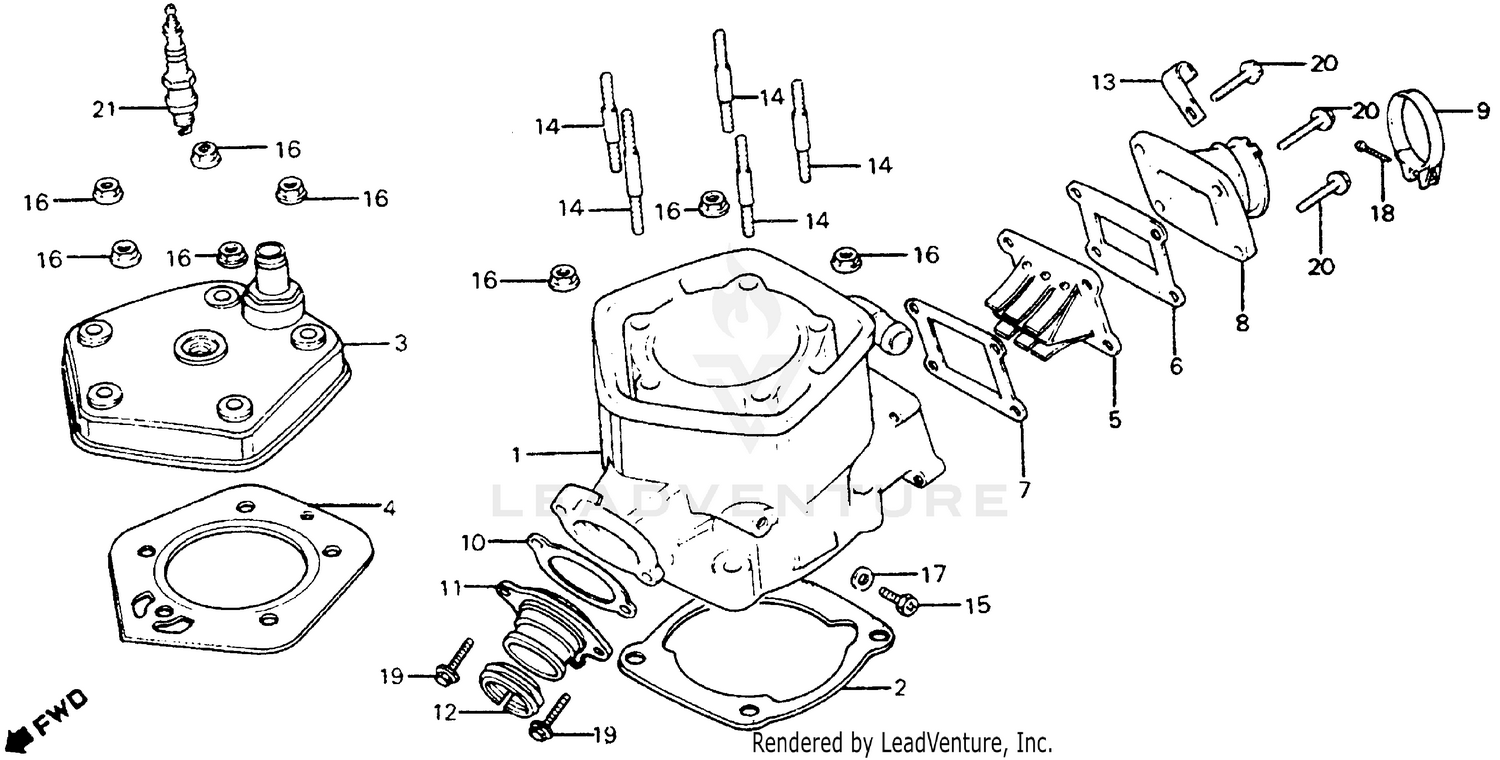

Cylinder Head + Cylinder + Reed Valve 82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER (NOT AVAILABLE)
12100-KA3-700
|
$650.61 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-KA3-700
Superseded by 12191-444-306
|
$12.98 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-444-000
Superseded by 12191-444-306
|
$12.98 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-444-306
|
$12.98 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD (NOT AVAILABLE)
12200-KA3-700
|
$154.12 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KA3-307
|
$27.12 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KA3-701
Superseded by 12251-KA3-307
|
$27.12 | ||
|
Unavailable |
|||
|
#5
VALVE ASSY., REED (NOT AVAILABLE)
14100-KA3-701
|
$108.05 | ||
|
Unavailable |
|||
|
#6
GASKET A, REED VALVE
14131-444-000
Superseded by 14131-444-306
|
$4.08 | ||
|
Unavailable |
|||
|
#7
GASKET B, REED VALVE
14132-444-000
Superseded by 14132-444-306
|
$5.35 | ||
|
Unavailable |
|||
|
#8
INSULATOR, CARBURETOR (NOT AVAILABLE)
16221-KA3-000
|
$33.02 | ||
|
Unavailable |
|||
|
#9
BAND, INSULATOR (NOT AVAILABLE)
16223-KA3-000
|
$8.95 | ||
|
Unavailable |
|||
|
#10
GASKET, EX. JOINT
18291-KA3-700
Superseded by 18291-KA3-306
|
$2.33 | ||
|
Unavailable |
|||
|
#11
JOINT, EX. PIPE (NOT AVAILABLE)
18351-KA3-700
|
$37.46 | ||
|
Unavailable |
|||
|
#12
SEAL, EX. JOINT
18359-KA3-700
|
$14.91 | ||
|
Unavailable |
|||
|
#13
CLAMP, CABLE
32111-323-000
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD (8X60) (NOT AVAILABLE)
90032-KA3-700
|
$2.46 | ||
|
Unavailable |
|||
|
#15
BOLT, OIL CHECK
90037-360-000
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, FLANGE (8MM)
90236-300-000
Superseded by 94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
Unavailable |
|||
|
#17
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X18)
96000-06018-00
Superseded by 96001-06018-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.88 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#21
SPARK PLUG (BR9EG) (NGK)
98079-59649
Superseded by 98079-59679
|
$7.07 | ||
|
Unavailable |
|||
|
#21
SPARK PLUG (W27ESR-V) (DENSO)
98079-59659
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPARK PLUG (BR9EG) (NGK)
98079-59669
Superseded by 98079-59679
|
$7.07 | ||
|
Unavailable |
|||
|
#21
SPARK PLUG (BR9EG) (NGK)
98079-59679
|
$7.07 | ||
|
Unavailable |
|||
