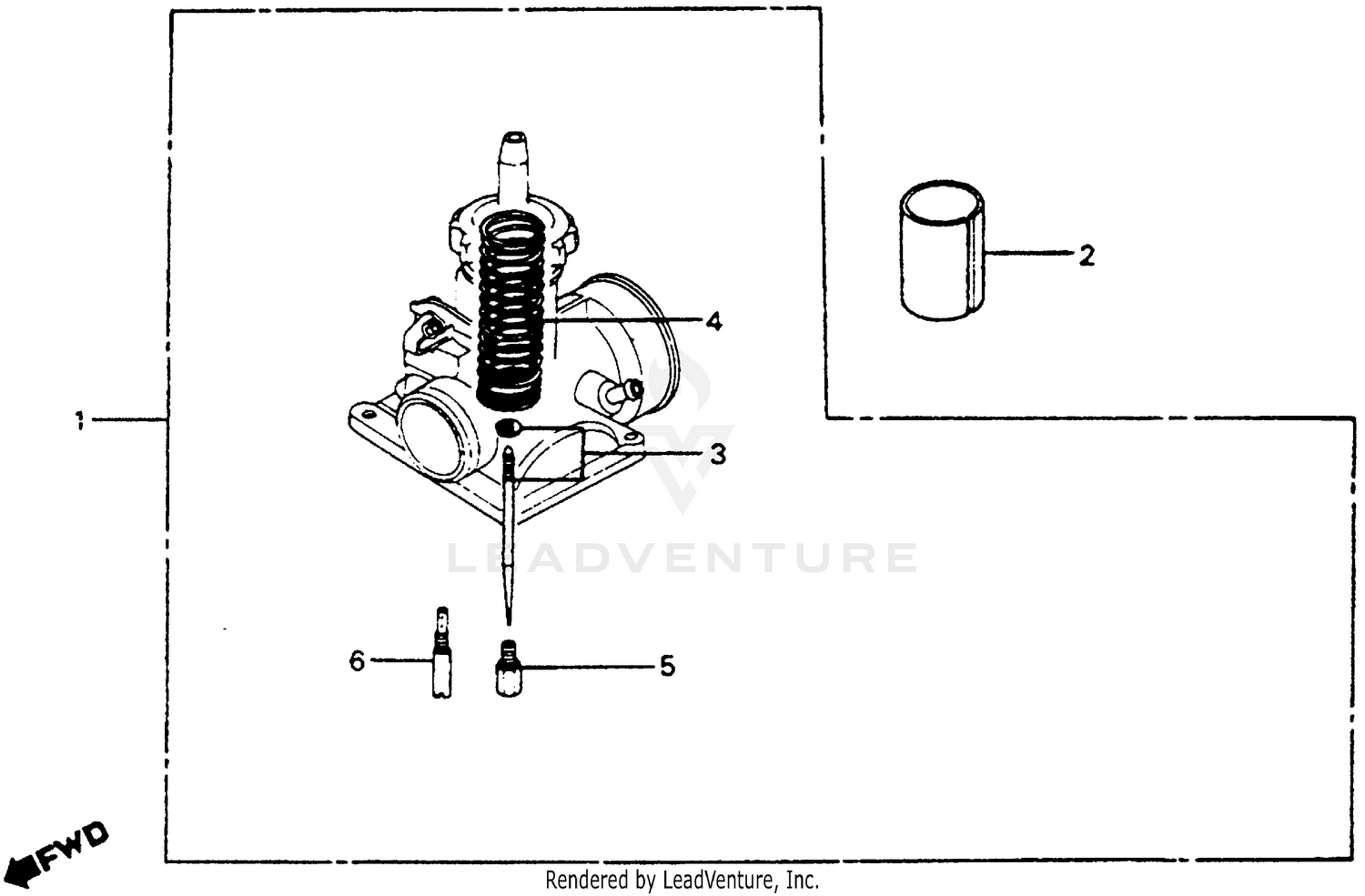

Carburetor Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PARTS KIT, CARBURETOR OPTIONAL
16020-KA3-701
|
$308.36 | ||
|
Unavailable |
|||
|
#2
VALVE, THROTTLE (#3.5) (NOT AVAILABLE)
16111-KA3-813
|
$74.36 | ||
|
Unavailable |
|||
|
#2
VALVE, THROTTLE (#4.5) (NOT AVAILABLE)
16111-KA3-823
|
$83.16 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16201-KA3-004
|
$19.97 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16202-KA4-004
|
$18.66 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16203-KA4-004
|
$18.66 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16205-KA4-004
|
$16.70 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16208-KA4-004
|
$14.72 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16202-KA3-004
|
$17.85 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16203-KA3-004
|
$17.85 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16206-KA4-004
Superseded by 16012-KA3-004
|
$14.99 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16209-KA4-004
|
$14.72 | ||
|
Unavailable |
|||
|
#4
SPRING, COMPRESSION COIL
16210-KA3-701
|
$19.56 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#145)
99101-357-1450
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#148)
99101-357-1480
|
$20.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#162)
99101-357-1620
Superseded by 99113-GHB-1620
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#165)
99101-357-1650
Superseded by 99113-GHB-1650
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#165)
99113-GHB-1650
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#135)
99101-357-1350
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#138)
99101-357-1380
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#140)
99101-357-1400
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#142)
99101-357-1420
|
$10.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
JET, MAIN (#152)
99101-357-1520
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#155) JET, MAIN (#158)
99101-357-1550
Superseded by 99113-GHB-1550
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#158) JET, MAIN (#172)
99101-357-1580
Superseded by 99113-GHB-1580
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#160)
99101-357-1600
Superseded by 99113-GHB-1600
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#155)
99113-GHB-1550
|
$11.40 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#158)
99113-GHB-1580
|
$11.44 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#160)
99113-GHB-1600
|
$11.44 | ||
|
Unavailable |
|||
|
#6
JET, SLOW (#62)
99103-441-0620
|
$12.07 | ||
|
Unavailable |
|||
|
#6
JET, SLOW (#72)
99103-441-0720
|
$12.07 | ||
|
Unavailable |
|||
