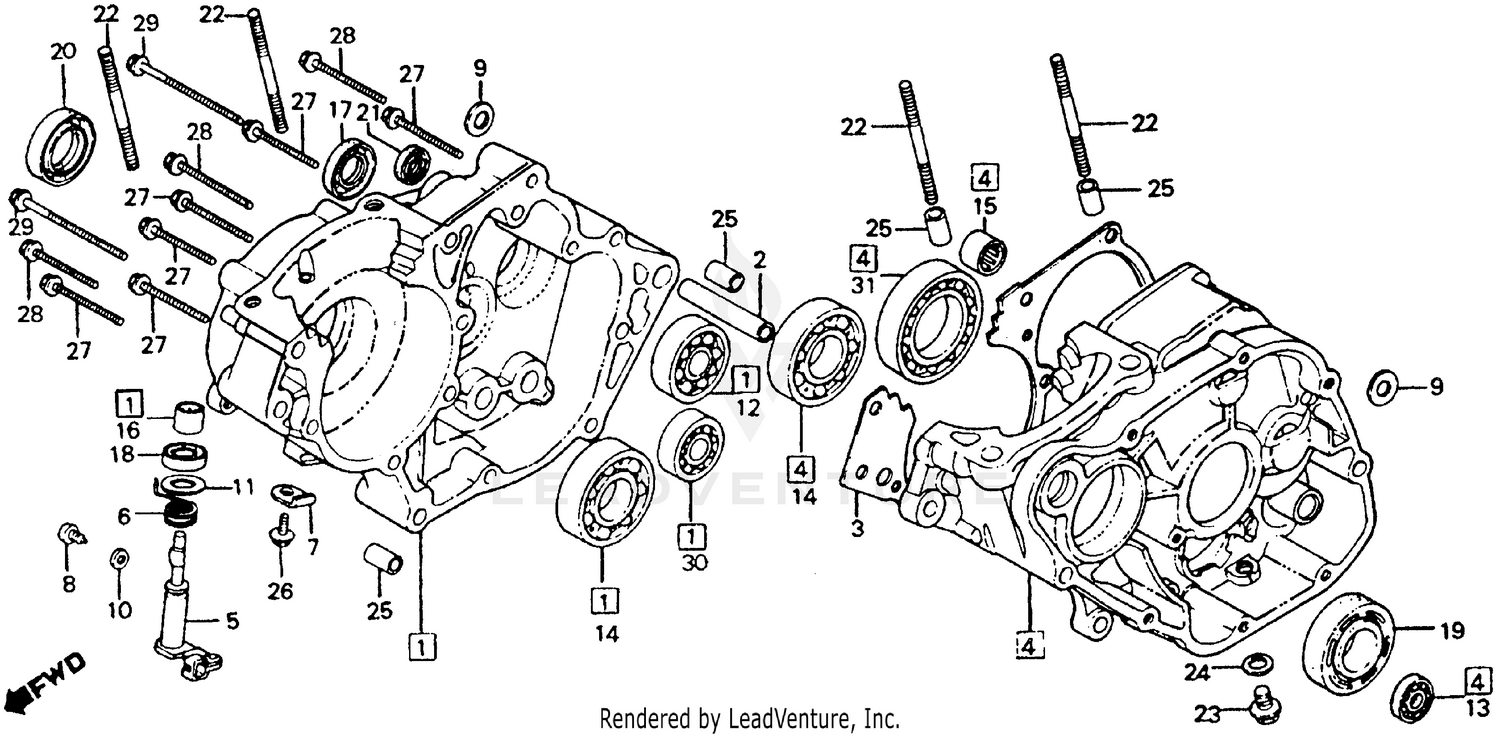

Crankcase 81-82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY., R.
111A0-KA3-700
|
$299.62 | ||
|
Unavailable |
|||
|
#2
COLLAR (18MM) (NOT AVAILABLE)
11104-KA3-000
|
$7.86 | ||
|
Unavailable |
|||
|
#3
GASKET, CRANKCASE
11191-KA3-000
Superseded by 11191-KA3-306
|
$12.66 | ||
|
Unavailable |
|||
|
#4
CRANKCASE ASSY., L. (NOT AVAILABLE)
112A0-KA3-700
|
$327.54 | ||
|
Unavailable |
|||
|
#5
LIFTER, CLUTCH (NOT AVAILABLE)
22810-444-010
|
$79.76 | ||
|
Unavailable |
|||
|
#6
SPRING, LEVER (NOT AVAILABLE)
22815-444-000
|
$2.02 | ||
|
Unavailable |
|||
|
#7
CLAMP, CLUTCH CABLE (NOT AVAILABLE)
22861-444-000
|
$2.01 | ||
|
Unavailable |
|||
|
#8
BOLT, SPECIAL (6MM)
90035-360-000
|
$3.16 | ||
|
Unavailable |
|||
|
#9
WASHER (15X30)
90412-KA3-000
|
$3.26 | ||
|
Unavailable |
|||
|
#10
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLAIN (14MM) (NOT AVAILABLE)
90549-444-000
|
$1.34 | ||
|
Unavailable |
|||
|
#12
BEARING, BALL (16006) (KOYO) (NOT AVAILABLE)
91001-612-004
|
$20.72 | ||
|
Unavailable |
|||
|
#12
BEARING, BALL (16006) (KOYO) (NOT AVAILABLE)
91001-612-008
Superseded by 91001-612-004
|
$20.72 | ||
|
Unavailable |
|||
|
#13
BEARING, RADIAL BALL (7X19X6) (TOYO)
91002-KA4-004
Superseded by 91002-KA4-003
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (7X19X6) (TOYO)
91002-KA4-005
Superseded by 91002-KA4-003
|
$26.25 | ||
|
Unavailable |
|||
|
#14
BEARING, RADIAL BALL (63/22)
91002-KE1-014
Superseded by 91002-KY4-901
|
$29.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (63/22)
91002-KY4-901
|
$29.53 | ||
|
Unavailable |
|||
|
#14
BEARING, RADIAL BALL (63/22)
91002-466-008
Superseded by 91002-KY4-901
|
$29.53 | ||
|
Unavailable |
|||
|
#15
BEARING, NEEDLE (15X23X12) (TOMUSON)
91016-360-006
|
$17.14 | ||
|
Unavailable |
|||
|
#15
BEARING, NEEDLE (15X23X12) (TOMUSON)
91016-444-004
Superseded by 91016-360-006
|
$17.14 | ||
|
Unavailable |
|||
|
#16
BEARING, NEEDLE (14MM) (TOYO)
91101-121-690
Superseded by 91101-121-691
|
$32.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, NEEDLE
91101-121-691
|
$32.93 | ||
|
Unavailable |
|||
|
#17
OIL SEAL (20X32X6)
91201-444-005
Superseded by 91202-KJ9-003
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (20X32X6)
91202-KJ9-000
Superseded by 91202-KJ9-003
|
$5.98 | ||
|
Unavailable |
|||
|
#17
OIL SEAL (20X32X6)
91202-KJ9-003
|
$5.98 | ||
|
Unavailable |
|||
|
#18
OIL SEAL (14X24X6) (ARAI)
91202-444-003
Superseded by 91202-444-023
|
$4.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
OIL SEAL (14X24X6) (ARAI)
91202-444-005
Superseded by 91202-444-023
|
$4.76 | ||
|
Unavailable |
|||
|
#18
OIL SEAL (14X24X6) (ARAI)
91202-444-013
Superseded by 91202-444-023
|
$4.76 | ||
|
Unavailable |
|||
|
#18
OIL SEAL (14X24X6) (ARAI)
91202-444-015
Superseded by 91202-444-023
|
$4.76 | ||
|
Unavailable |
|||
|
#18
OIL SEAL (14X24X6) (ARAI)
91202-444-023
|
$4.76 | ||
|
Unavailable |
|||
|
#19
OIL SEAL (30X45X8) (ARAI)
91203-KS6-003
Superseded by 91203-KS6-004
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (30X45X8) (ARAI)
91203-KS6-004
|
$18.51 | ||
|
Unavailable |
|||
|
#19
OIL SEAL (30X45X8) (ARAI)
91203-466-003
Superseded by 91203-KS6-004
|
$18.51 | ||
|
Unavailable |
|||
|
#20
OIL SEAL (20X35X8)
91204-444-005
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (16X28X7)
91205-360-000
Superseded by 91204-259-003
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT 2, STUD (8X35)
92700-08055-3E
Superseded by 92900-08035-0B
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, STUD (8X35)
92900-08035-0B
|
$2.57 | ||
|
Unavailable |
|||
|
#22
BOLT 2, STUD (8X35)
92900-08035-0E
Superseded by 92900-08035-0B
|
$2.57 | ||
|
Unavailable |
|||
|
#23
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN A, DOWEL (10X14)
94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X45)
96000-06045-00
Superseded by 96001-06045-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X45)
96001-06045-00
|
$2.24 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (6X70)
96000-06070-00
Superseded by 96001-06070-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X70)
96001-06070-00
|
$2.24 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X80)
96000-06080-00
Superseded by 96001-06080-07
|
$2.77 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X80)
96000-06080-07
Superseded by 96001-06080-07
|
$2.77 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X80)
96001-06080-00
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X80)
96001-06080-07
|
$2.77 | ||
|
Unavailable |
|||
|
#30
BEARING, RADIAL BALL (6003U)
96140-60030-00
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.82 | ||
|
Unavailable |
|||
