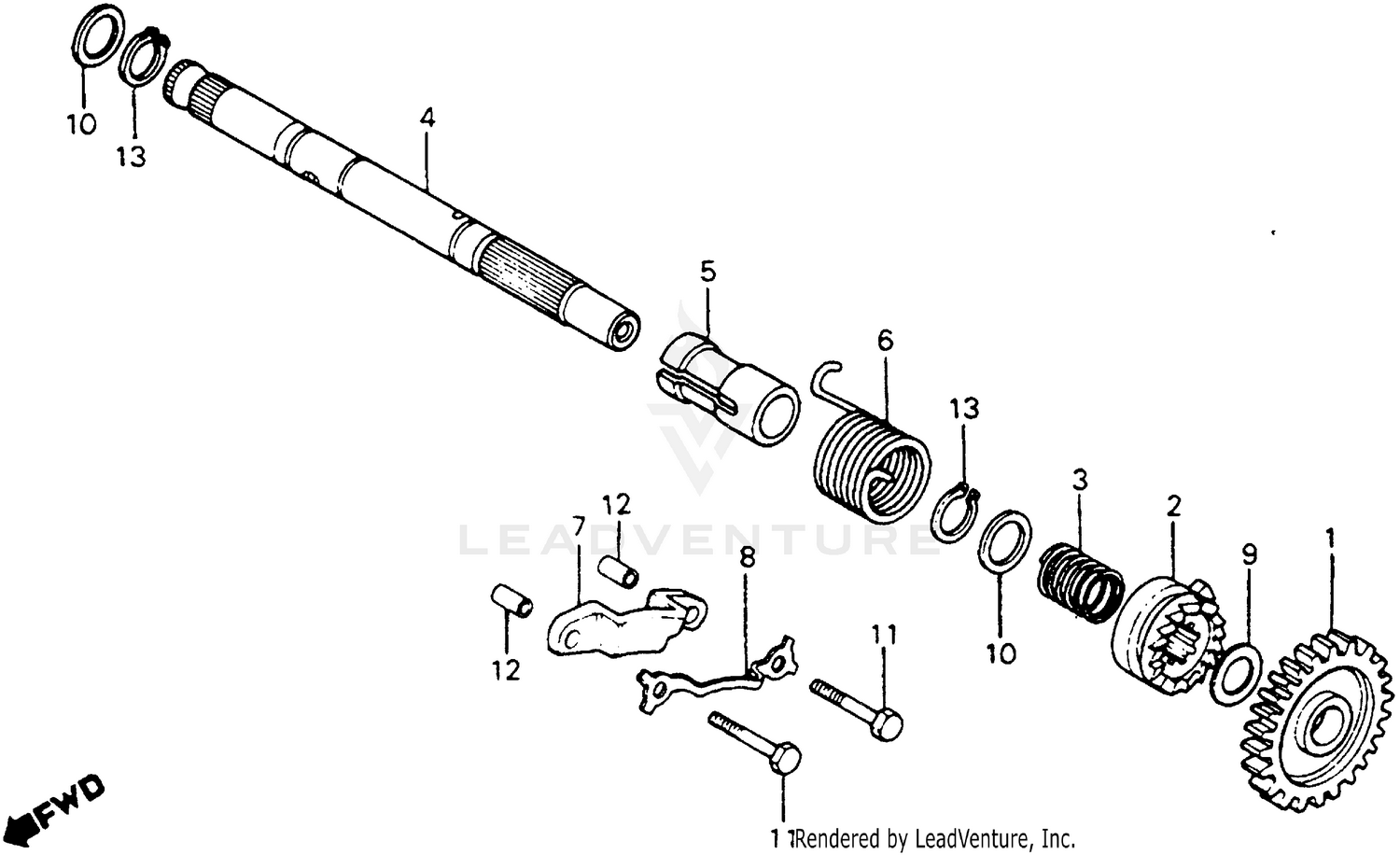

Kick Starter Spindle 82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, KICK STARTER (27T)
28210-KA3-000
|
$106.60 | ||
|
Unavailable |
|||
|
#2
RATCHET, KICK STARTER
28241-444-000
|
$59.19 | ||
|
Unavailable |
|||
|
#3
SPRING, RATCHET (NOT AVAILABLE)
28242-444-000
|
$2.10 | ||
|
Unavailable |
|||
|
#4
SPINDLE, KICK STARTER (NOT AVAILABLE)
28250-KA3-700
|
$90.82 | ||
|
Unavailable |
|||
|
#5
COLLAR, KICK SPINDLE (NOT AVAILABLE)
28255-KA3-701
|
$7.90 | ||
|
Unavailable |
|||
|
#6
SPRING, KICK STARTER RETURN (NOT AVAILABLE)
28261-444-000
|
$7.23 | ||
|
Unavailable |
|||
|
#7
PLATE, KICK STOPPER (NOT AVAILABLE)
28262-KA3-000
|
$20.90 | ||
|
Unavailable |
|||
|
#8
WASHER, LOCK (6MM) (NOT AVAILABLE)
90435-444-000
|
$3.97 | ||
|
Unavailable |
|||
|
#9
WASHER, THRUST (14MM)
90453-444-000
|
$2.78 | ||
|
Unavailable |
|||
|
#10
WASHER (16.8X24)
90501-444-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (6X32)
92200-06032
Superseded by 92201-06032-0A
|
$0.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X32)
92201-06032-0A
|
$0.99 | ||
|
Unavailable |
|||
|
#12
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP (OUTER) (16MM)
94510-16000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
