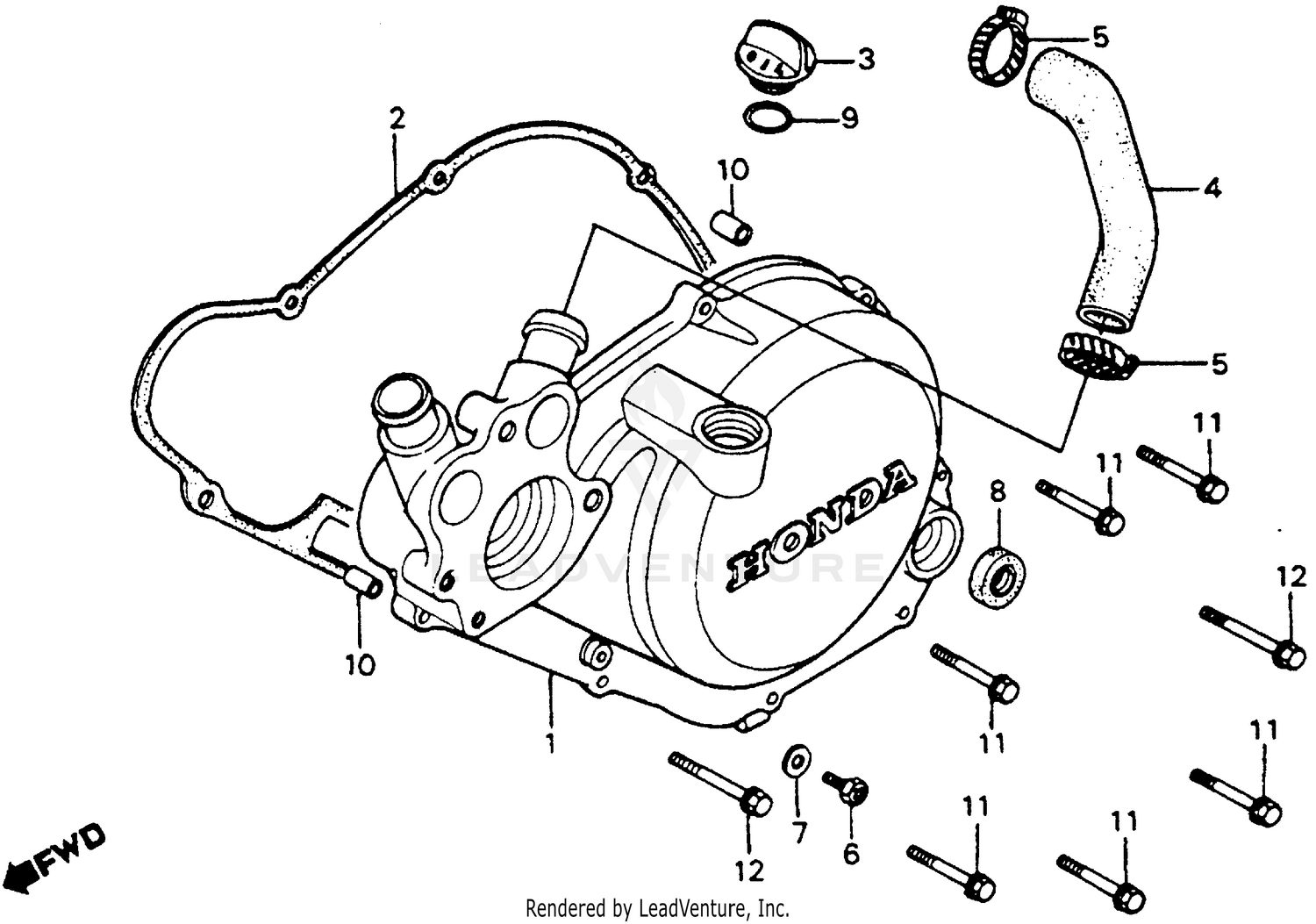

Left Crankcase Cover 81-82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE (NOT AVAILABLE)
11340-KA3-700
|
$189.21 | ||
|
Unavailable |
|||
|
#2
GASKET, L. COVER
11394-KA3-000
Superseded by 11394-KA3-306
|
$12.44 | ||
|
Unavailable |
|||
|
#2
GASKET, L. COVER
11394-KA3-306
|
$12.44 | ||
|
Unavailable |
|||
|
#3
CAP, OIL
15611-381-000
Superseded by 25611-733-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, WATER
19501-KA3-000
|
$32.45 | ||
|
Unavailable |
|||
|
#5
CLAMP, WATER HOSE
19506-KA4-000
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, OIL CHECK
90037-360-000
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
OIL SEAL (14X28X7) (ARAI)
91206-286-013
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING (16MM)
91303-800-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (16MM)
91304-MJ0-003
Superseded by 91303-800-000
|
$2.55 | ||
|
Unavailable |
|||
|
#10
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X25)
96000-06025-00
|
$2.20 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X32)
96000-06032-00
Superseded by 96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Unavailable |
|||
