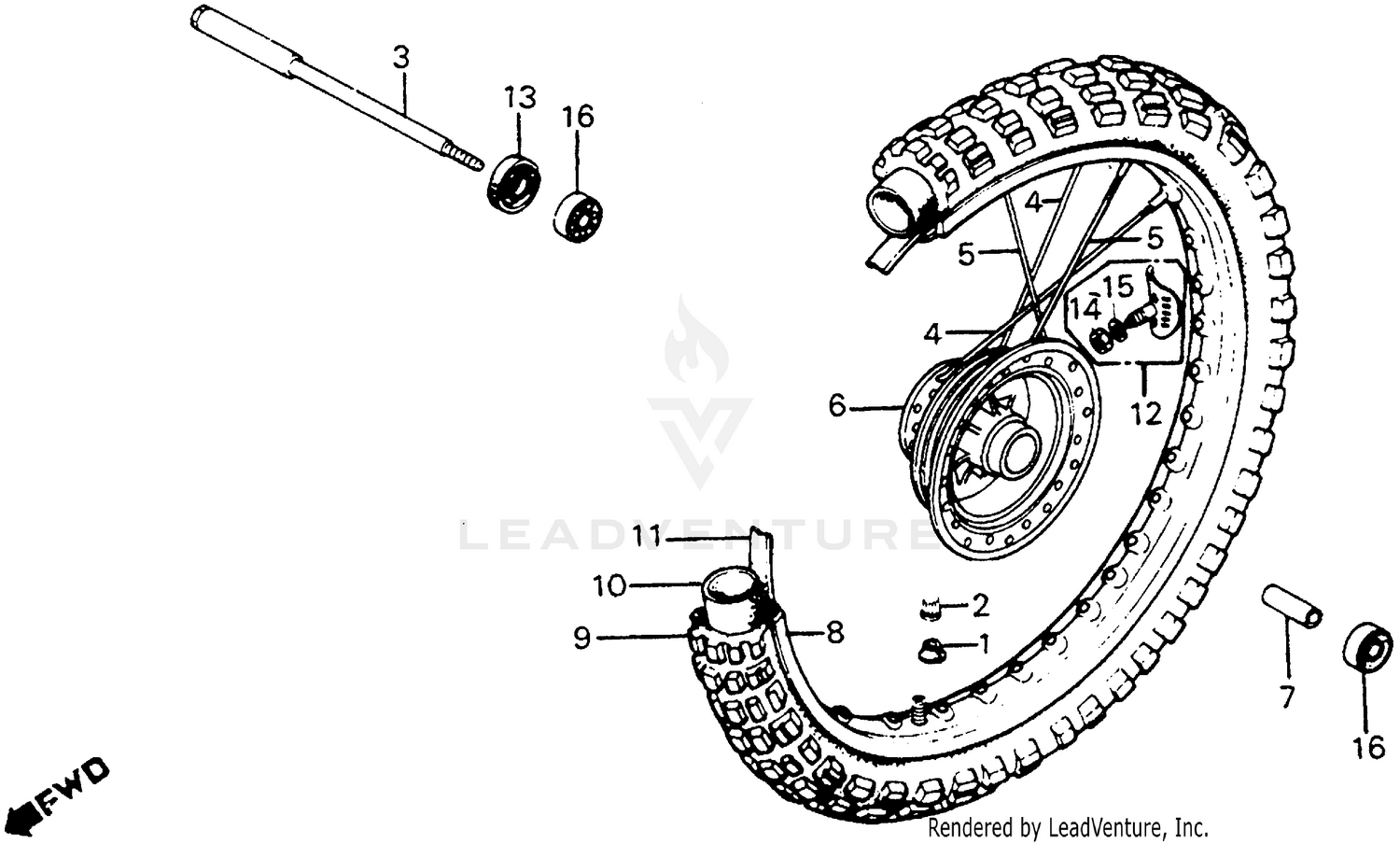

Front Wheel 82-83 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-KA4-000
|
$28.83 | ||
|
Unavailable |
|||
|
#4
SPOKE SET A, FR. (B8X238)
446A0-KA4-700
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPOKE SET B, FR. (B8X197.5) (NOT AVAILABLE)
446B0-KA4-700
|
$3.33 | ||
|
Unavailable |
|||
|
#6
HUB, FR. WHEEL (NOT AVAILABLE)
44601-KA4-701
|
$238.79 | ||
|
Unavailable |
|||
|
#7
COLLAR, FR. AXLE (NOT AVAILABLE)
44620-MA0-000
|
$8.34 | ||
|
Unavailable |
|||
|
#8
RIM, FR. WHEEL (NOT AVAILABLE)
44701-KA4-701
|
$275.48 | ||
|
Unavailable |
|||
|
#9
TIRE, FR. (3.00-21) (4PR) (BS) (NOT AVAILABLE)
44711-KA4-003
|
$43.48 | ||
|
Unavailable |
|||
|
#10
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-340-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#11
FLAP, TIRE (1.60-21) (BS) (NOT AVAILABLE)
44713-340-003
|
$3.76 | ||
|
Unavailable |
|||
|
#12
STOPPER, BEAD (1.60)
44715-MA0-770
|
$44.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL (20X50X5)
91254-KA4-003
|
$7.12 | ||
|
Unavailable |
|||
|
#14
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL (6202U)
96140-62020-10
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
