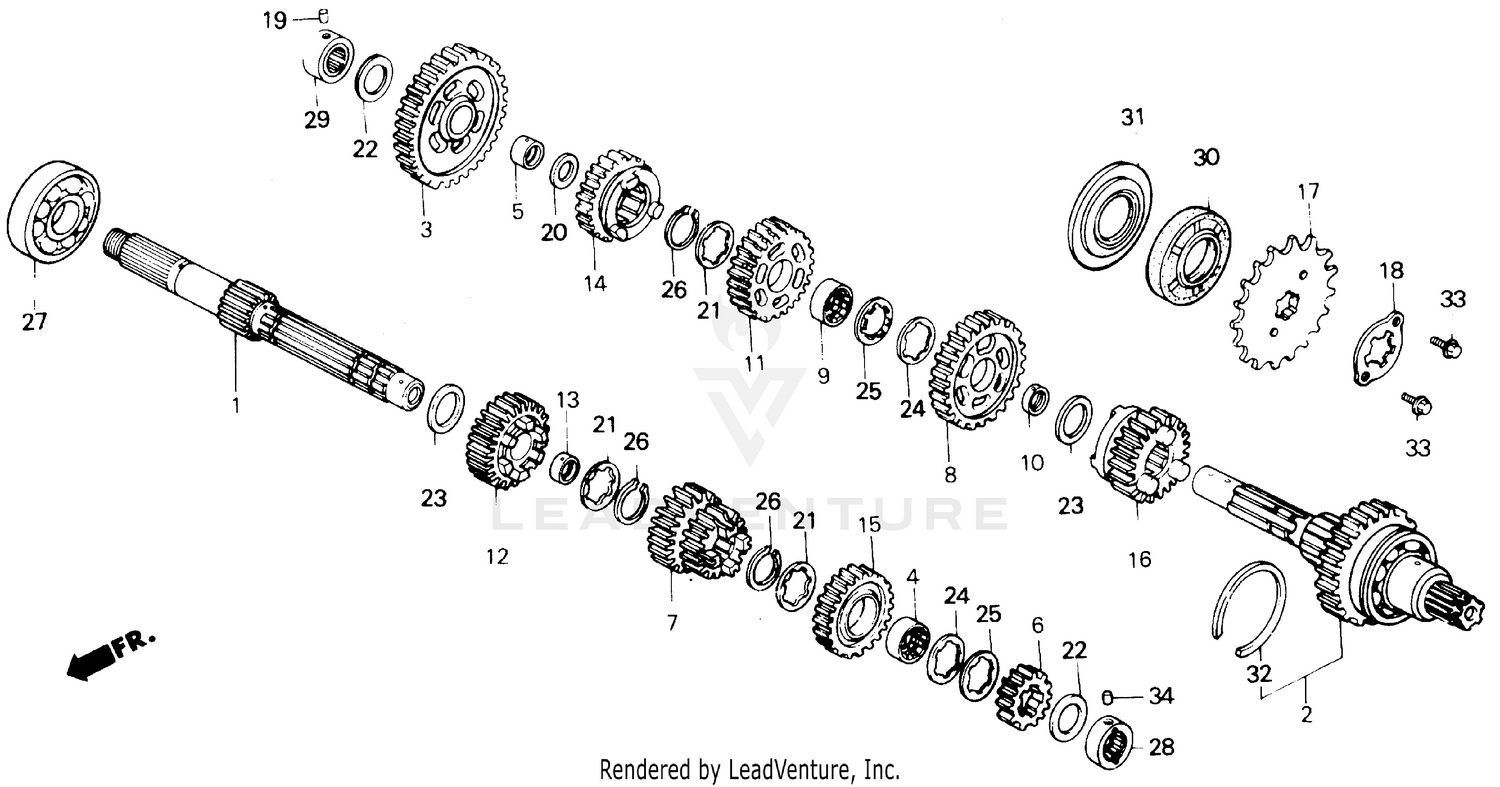

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (13T)
23211-ML4-610
|
$117.10 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT
23220-MM2-670
|
$204.87 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T)
23421-ML4-610
|
$119.32 | ||
|
Unavailable |
|||
|
#4
COLLAR, SPLINE (25X28X10.8)
23422-ME9-000
|
$20.94 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH (20MM)
23422-ML4-610
|
$17.74 | ||
|
Unavailable |
|||
|
#6
GEAR, MAINSHAFT SECOND (19T)
23431-ML4-610
|
$46.27 | ||
|
Unavailable |
|||
|
#7
GEAR, MAINSHAFT THIRD & FOURTH (22T/25T)
23451-ML4-610
|
$130.26 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (34T)
23461-ML4-610
|
$104.30 | ||
|
Unavailable |
|||
|
#9
COLLAR, SPLINE (25X9)
23462-MJ8-000
|
$20.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR (25MM)
23462-ML4-610
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (32T)
23481-ML4-610
|
$95.71 | ||
|
Unavailable |
|||
|
#12
GEAR, MAINSHAFT FIFTH (27T)
23491-ML4-610
|
$95.71 | ||
|
Unavailable |
|||
|
#13
COLLAR (25MM)
23492-ML4-610
|
$17.74 | ||
|
Unavailable |
|||
|
#14
GEAR, COUNTERSHAFT FIFTH (29T)
23501-ML4-610
|
$104.30 | ||
|
Unavailable |
|||
|
#15
GEAR, MAINSHAFT SIXTH (30T) (NOT AVAILABLE)
23511-MM2-670
|
$89.95 | ||
|
Unavailable |
|||
|
#16
GEAR, COUNTERSHAFT SIXTH (26T) (NOT AVAILABLE)
23521-MM2-670
|
$99.50 | ||
|
Unavailable |
|||
|
#17
SPROCKET, DRIVE (17T) (NOT AVAILABLE)
23801-MM2-670
|
$30.97 | ||
|
Unavailable |
|||
|
#18
PLATE, FIXING
23811-MJ8-000
|
$3.43 | ||
|
Unavailable |
|||
|
#19
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER A, THRUST (32X1.9)
90408-ML4-610
|
$3.52 | ||
|
Unavailable |
|||
|
#20
WASHER B, THRUST (30X1.7)
90409-ML4-610
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER C, THRUST (28X1.45)
90410-ML4-610
|
$3.52 | ||
|
Unavailable |
|||
|
#21
WASHER, THRUST (25MM)
90451-413-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (20X1.00)
90454-428-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (25MM)
90456-MA6-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER B, THRUST (25MM)
90461-286-000
|
$3.12 | ||
|
Unavailable |
|||
|
#25
WASHER, LOCK (25MM)
90462-323-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (OUTER) (25MM)
90601-300-000
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (6305) (NACHI)
91001-071-003
|
$52.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, NEEDLE (20MM)
91022-MM2-670
|
$25.92 | ||
|
Unavailable |
|||
|
#29
BEARING, NEEDLE (20MM)
91022-415-008
|
$59.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (34X63X12)
91206-MC0-000
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (34X66)
91211-393-003
|
$17.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
RING, SNAP (62MM)
94560-62200
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#34
ROLLER (4X10)
96220-40100
|
$0.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
